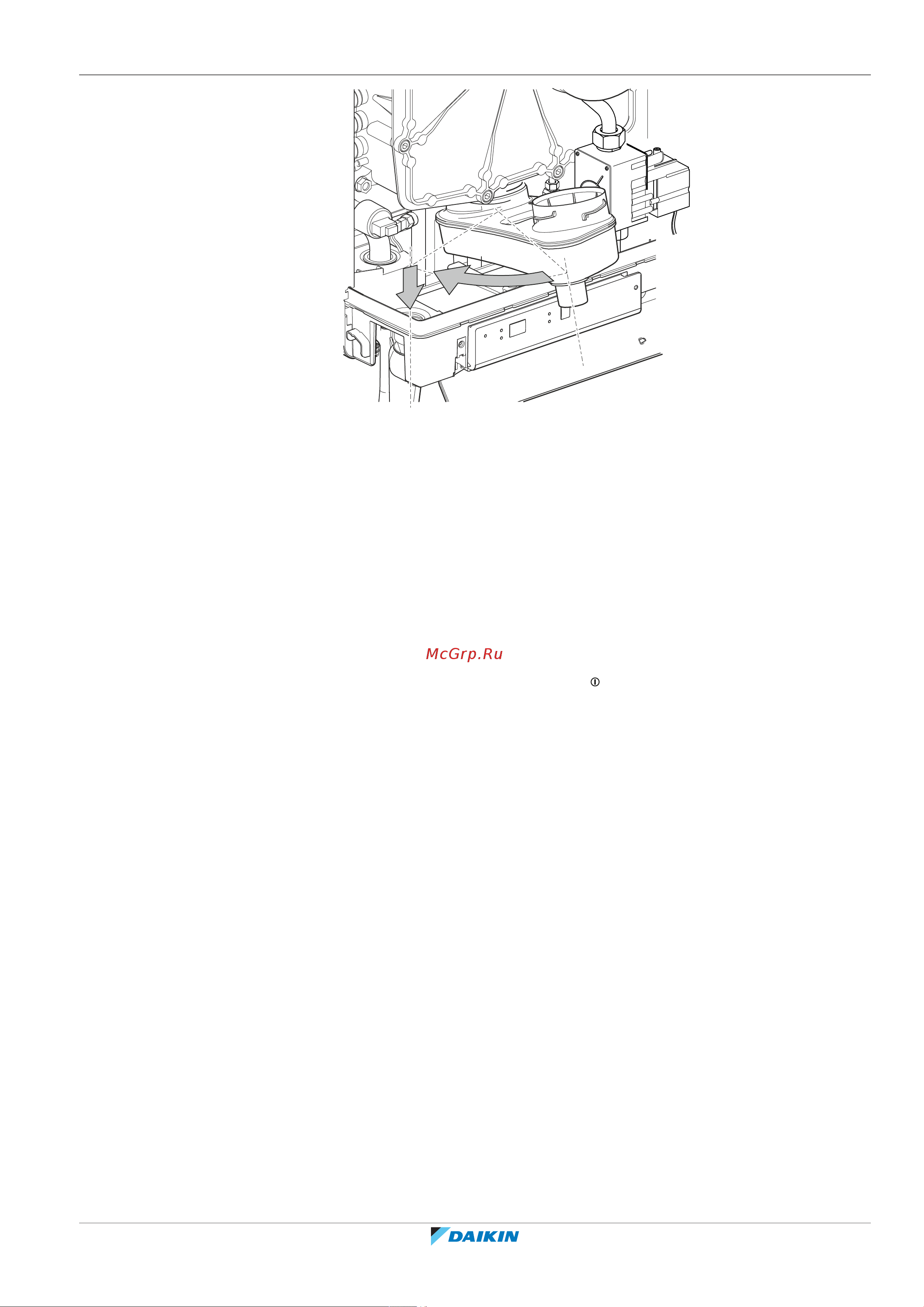

8 Fill the condensate trap with water and fit it to the connection below the

condensate drain pan.

9 Slide the flue pipe, turning it counterclockwise, with the top around the flue

adapter into the top cover.

10 Insert the bottom into the condensate drain pan and tighten the coupling nut

clockwise.

11 Open the gas tap and check the gas connections below the gas valve and on

the mounting bracket for leakage.

12 Check the space heating and the water pipes for leakages.

13 Turn on the main power supply.

14 Turn on the appliance by pushing the button.

15 Check the front cover, the fan connection on the front cover and the flue pipe

components for leakage.

16 Check the gas/air adjustment.

17 Fit the casing, tighten the 2 screws on the left and right side of the display.

18 Close the display cover.

19 Check the heating and hot water supply.
