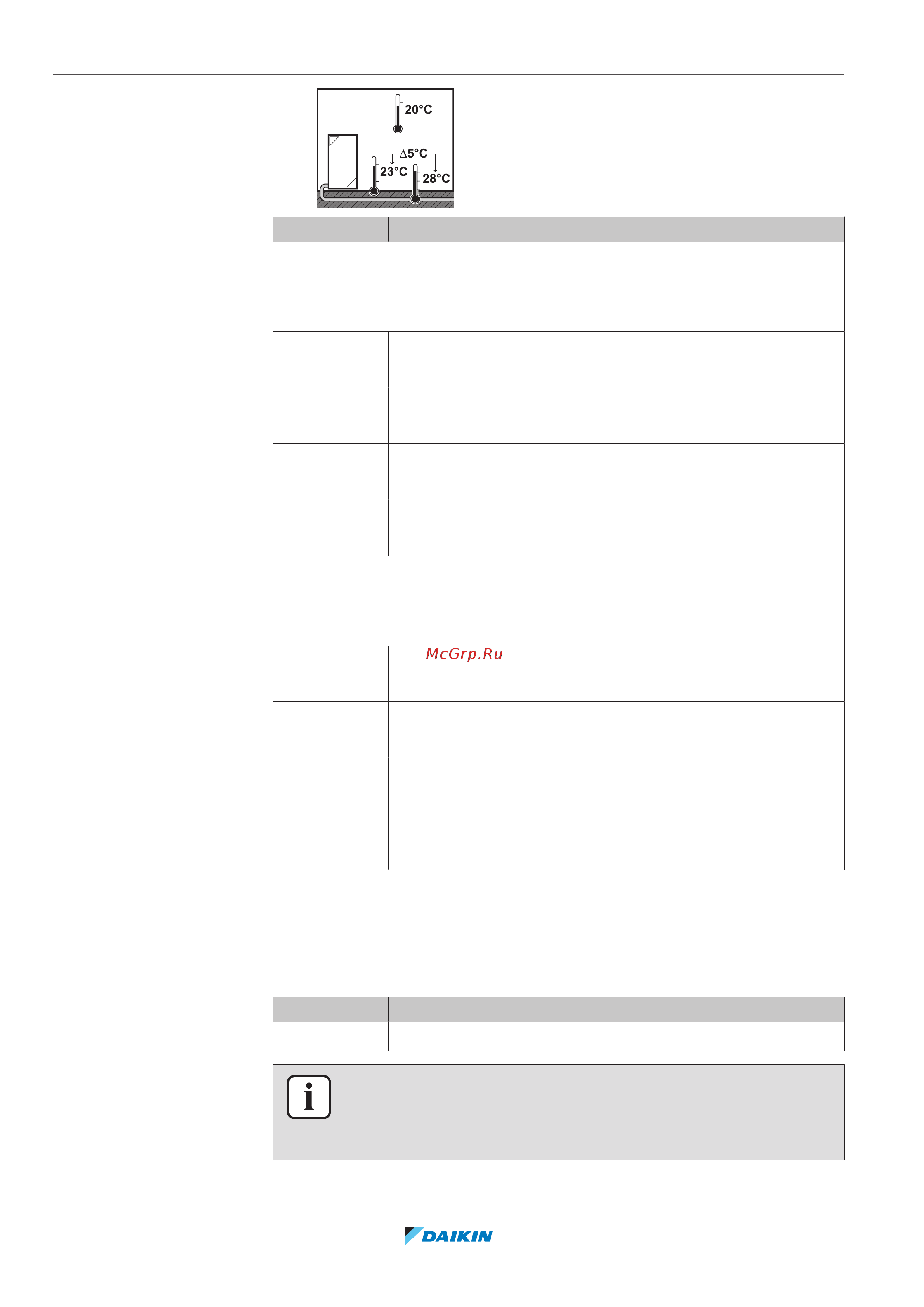

Daikin EHYHBX08AFV3 [146/252] Configuration

8 | Configuration

Installer reference guide

146

EVLQ05+08CAV3 + EHYHBH05AF + EHYHBH/X08AF + EHYKOMB33AA

Daikin Altherma hybrid heat pump

4P355634-1F – 2020.10

# Code Description

Leaving water temperature range for the main leaving water temperature zone (=

the leaving water temperature zone with the lowest leaving water temperature in

heating operation and the highest leaving water temperature in cooling

operation)

[A.3.1.1.2.2] [9-00] Maximum temp (heating)

37°C~80°C (default: 80°C)

[A.3.1.1.2.1] [9-01] Minimum temp (heating)

15°C~37°C (default: 25°C)

[A.3.1.1.2.4] [9-02] Maximum temp (cooling)

18°C~22°C (default: 22°C)

[A.3.1.1.2.3] [9-03] Minimum temp (cooling)

5°C~18°C (default: 5°C)

Leaving water temperature range for the additional leaving water temperature

zone (= the leaving water temperature zone with the highest leaving water

temperature in heating operation and the lowest leaving water temperature in

cooling operation)

[A.3.1.2.2.2] [9-06] Maximum temp (heating)

37°C~80°C (default: 80°C)

[A.3.1.2.2.1] [9-05] Minimum temp (heating)

15°C~37°C (default: 25°C)

[A.3.1.2.2.4] [9-08] Maximum temp (cooling)

18°C~22°C (default: 22°C)

[A.3.1.2.2.3] [9-07] Minimum temp (cooling)

5°C~18°C (default: 5°C)

Leaving water temperature overshoot temperature

This function defines how much the water temperature may rise above the desired

leaving water temperature before the compressor stops. The compressor will

startup again when the leaving water temperature drops below the desired leaving

water temperature. This function is ONLY applicable in heating mode.

# Code Description

N/A [9-04] 1~4°C (default: 1°C)

INFORMATION

This overshoot temperature applies to the heat pump leaving water temperature.

Note that when the gas boiler is operating, there can be a 5°C overshoot over the

desired boiler leaving water temperature.
