Daikin EHYHBX08AFV3 [66/252] Mounting the gas boiler
![Daikin EHYHBX08AFV3 [66/252] Mounting the gas boiler](/views2/1798413/page66/bg42.png)
7 | Installation
Installer reference guide
66
EVLQ05+08CAV3 + EHYHBH05AF + EHYHBH/X08AF + EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1F – 2020.10

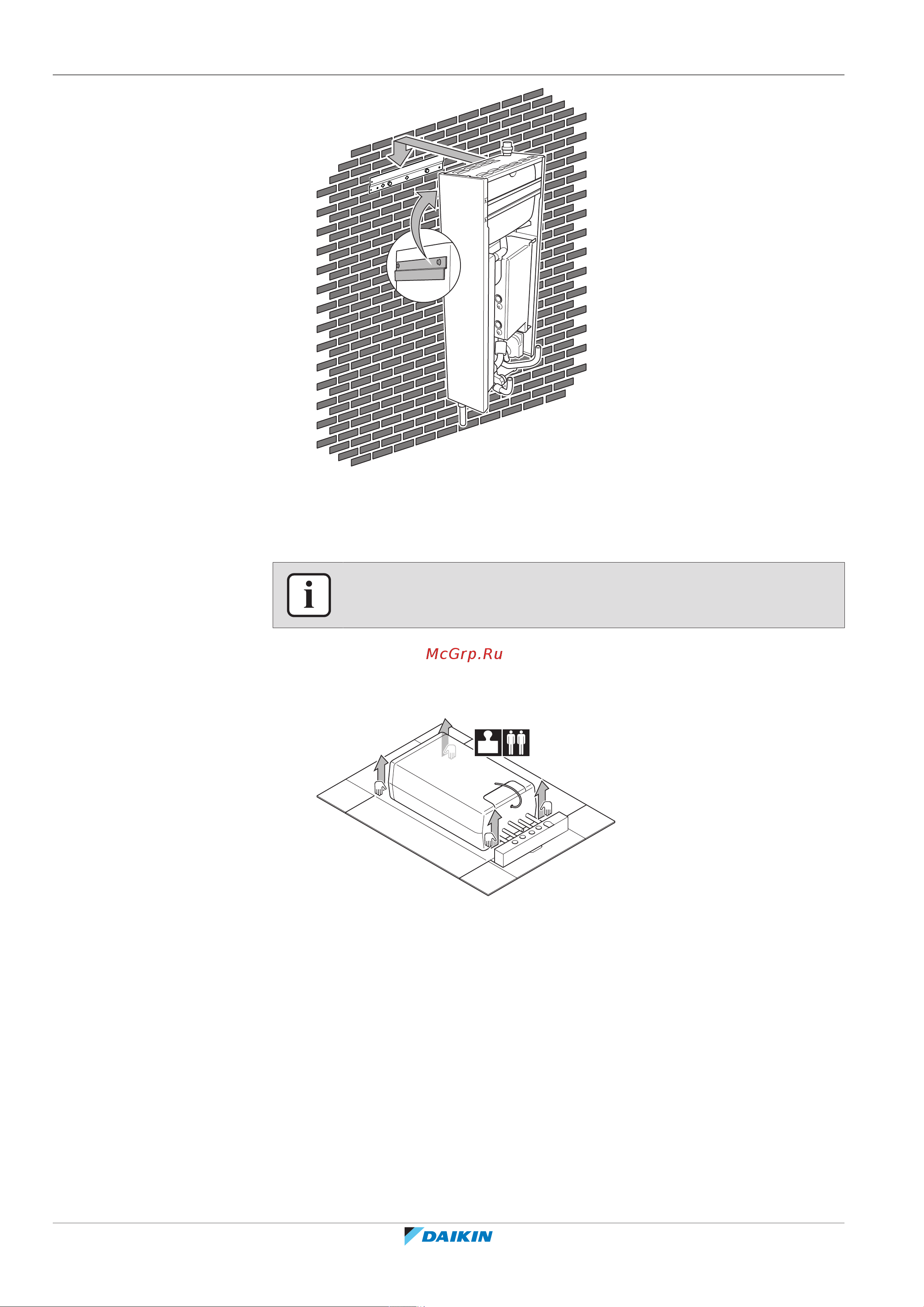

7.5 Mounting the gas boiler
INFORMATION
Removing the top plate of the indoor unit makes it easier to install the gas boiler.
7.5.1 To install the gas boiler
1 Lift the unit from the package.
36kg
2 Remove the top plate from the indoor unit.
3 The bracket to mount the boiler on the heat pump module is already mounted
to the backside of the gas boiler.
4 Lift the boiler. One person lifts the gas boiler on the left side (left hand on the
top and right hand on the bottom) and another person lifts the gas boiler on
the right side (left hand on the bottom and right hand on the top).
5 Tilt the top of the unit at the position of the indoor unit mounting bracket.
