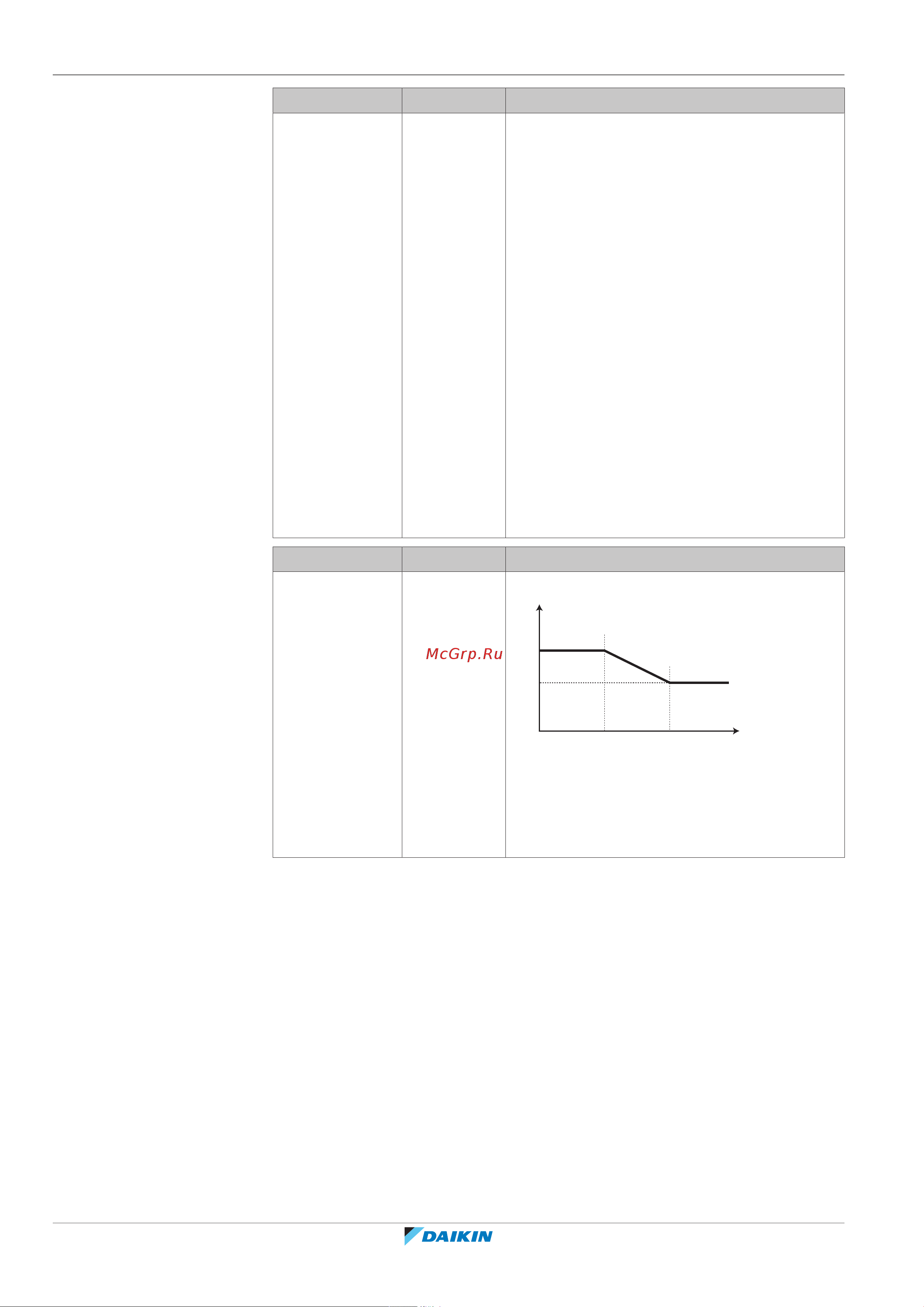

8 | Configuration
Installer reference guide
138
EVLQ05+08CAV3 + EHYHBH05AF + EHYHBH/X08AF + EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1F – 2020.10
# Code Description
[A.3.1.2.1] N/A << continuation
▪ Fixed/scheduled: The desired leaving
water temperature is:
- NOT weather-dependent (i.e., does NOT
depend on the outdoor ambient
temperature)
- according a schedule. The scheduled
actions are On or OFF.
Remark: This value can only be set in
leaving water temperature control.
▪ WD/scheduled: The desired leaving water
temperature is:
- weather-dependent (i.e., does depend on
the outdoor ambient temperature)
- according a schedule. The scheduled
actions are On or OFF.
Remark: This value can only be set in
leaving water temperature control.
# Code Description
[7.7.2.1] [0‑00]
[0‑01]
[0‑02]
[0‑03]
Set weather-dependent heating:
[0-00]
[0-01]
T
a
T
t
[0-03] [0-02]
▪ T
t
: Target leaving water temperature
(additional)
▪ T
a
: Outdoor temperature
continued >>
