Hitachi DH38MS [9/76] English

English

(1) Center pin

䢇 Applied to core bits from 38 mm to 105 mm

䢇 Applied to core bits 32 mm and 35 mm

NOTE:

Do not use core bits 25 mm or 29 mm.

(2) Core bit

䢇 External dia. 25, 29, 32, 35, 38, 45, 54, 64, 79, 94,

105 mm

(with guide plate, not applicable to cores 25 mm

or 29 mm)

(3) Core bit shank

䢇 Applied to core bits above 38 mm

䢇 Applied to core bits below 35 mm

4. Drilling holes .... For drilling metal and wooden

materials

5. Bolt placing operation with Chemical Anchor

(Rotation + Hammering)

6. Crushing (Hammering)

7. Groove digging and edging (Hammering)

8. Asphalt cutting (Hammering)

9. Scooping Work (Hammering)

10. Surface Roughing (Hammering)

11. Tamping (Hammering)

12. Syringe (for chip removal)

䡬 Hammer grease A

500 g (in a can)

70 g (in a green tube)

30 g (in a green tube)

Optional accessories are subject to change without

notice.

APPLICATIONS

䡬 Drilling holes in concrete

䡬 Drilling anchor holes

䡬 Demolishing concrete, chipping, digging, and

squaring (by applying optional accessories)

PRIOR TO OPERATION

1. Power source

Ensure that the power source to be utilized conforms

to the power requirements specified on the product

nameplate.

2. Power switch

Ensure that the power switch is in the OFF position.

If the plug is connected to a power receptacle while

the power switch is in the ON position, the power

tool will start operating immediately, which could

cause a serious accident.

3. Extension cord

When the work area is removed from the power

source, use an extension cord of sufficient thickness

and rated capacity. The extension cord should be

kept as short as practicable.

4. How to install tool

NOTE:

For tools such as a bull point and a cold chisel,

use only Hitachi genuine parts.

(1) Clean, then smear the tool shank with the grease

or machine oil (Fig. 1).

(2) To attach the tool (SDS max shank), insert it into

the hole until it contacts the innermost end of the

hole as illustrated in Fig. 2.

(Standard socket

on the market)

(SDS max shank)

12.7 mm Chemical

Anchor Adaptor

19 mm Chemical

Anchor Adaptor

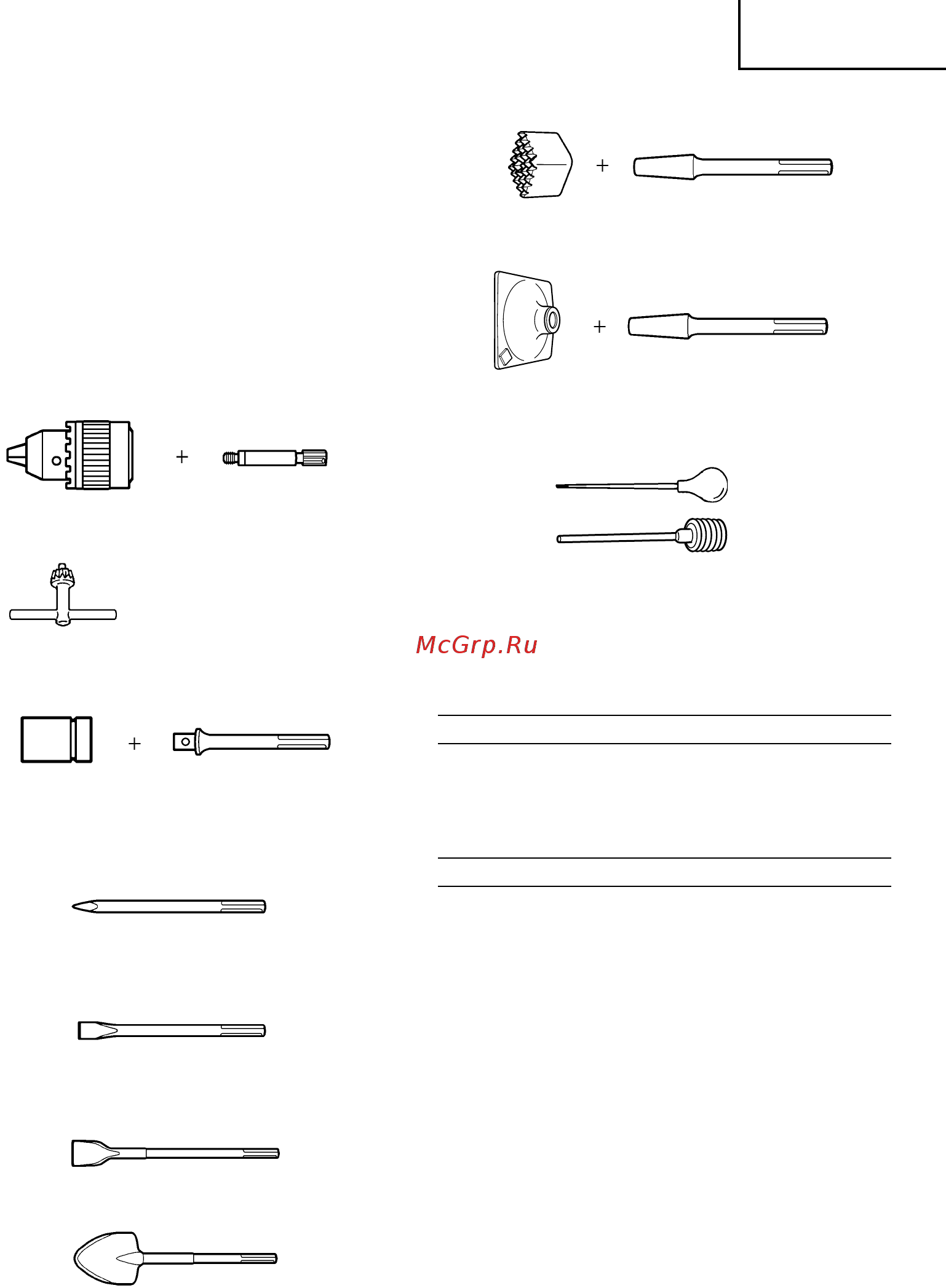

(1) Bull point

Overall length: 280, 400 mm

(1) Cold chisel

Overall length: 280, 400 mm

(1) Cutter

(1) Scoop

(2) Shank

(1) Bushing Tool

(2) Shank

(1) Rammer

150 × 150 mm

13 mm drill chuck

(13VLA)

Chuck adapter

(SDS max shank)

Chuck wrench

01Eng_DH38MS_EE 4/27/09, 18:258
