MB 62 (Mounting Bracket)

Simple wall and ceiling mounting bracket for VL 62, without

slope mechanism.

Not combinable with TMA and RMA.

If bent installation is needed the WMK 10 must be used.

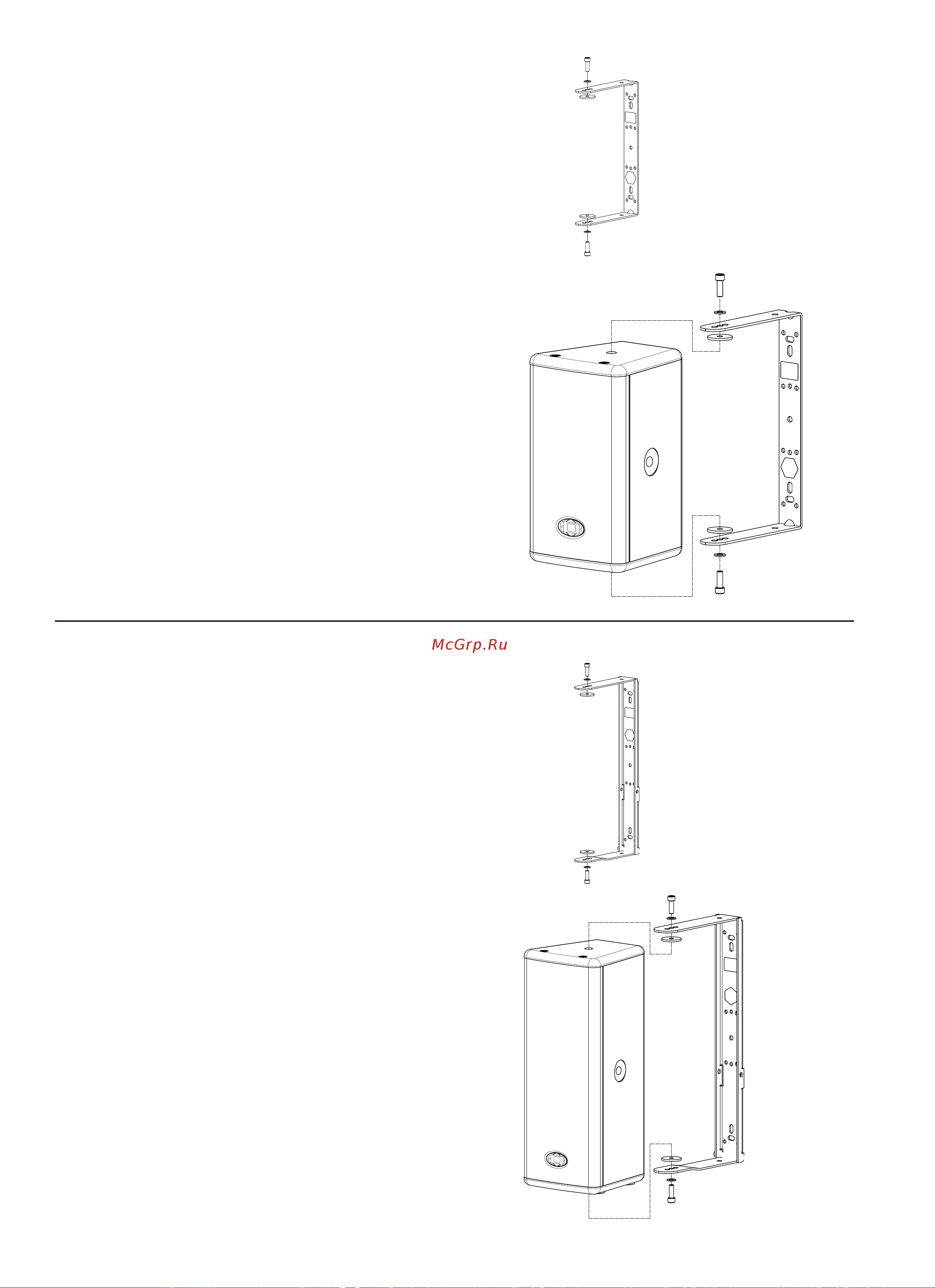

Assembly instruction:

The relevant assembly instructions at ceilings, walls or

trusses are to be considered absolutely.

1. Install MB 62 at the wall or ceiling with suitable

mounting material.

2. Remove the plastic covers of the necessary M10

threaded inserts at the enclosure.

3. Unscrew the shaft screws from the threaded inserts.

4. Insert enclosed rubber washer between bracket

and enclosure. Bolt mounting bracket together with

screw M10 and disk at the enclosure. Secure

screws with thread locking compound.

Tighten screws.

MB 62 (Mounting Bracket)

D113138

MB 262 UMH

Wall mounting bracket for VL 262.

Together with the TMA inclination angles between 5° and 45°

can be adjusted in 5° steps. An adjustment to the listeners

direction with turn-in to the wall is realized additionally with

the RMA.
