Dynacord D 12 [28/40] Fb vl 122

FB-VL 122

Flight bracket for VL 122.

The FB-VL 122 can be equipped for different assembly

requirements in each case with PCL-M10, TC-02 or FB-TV.

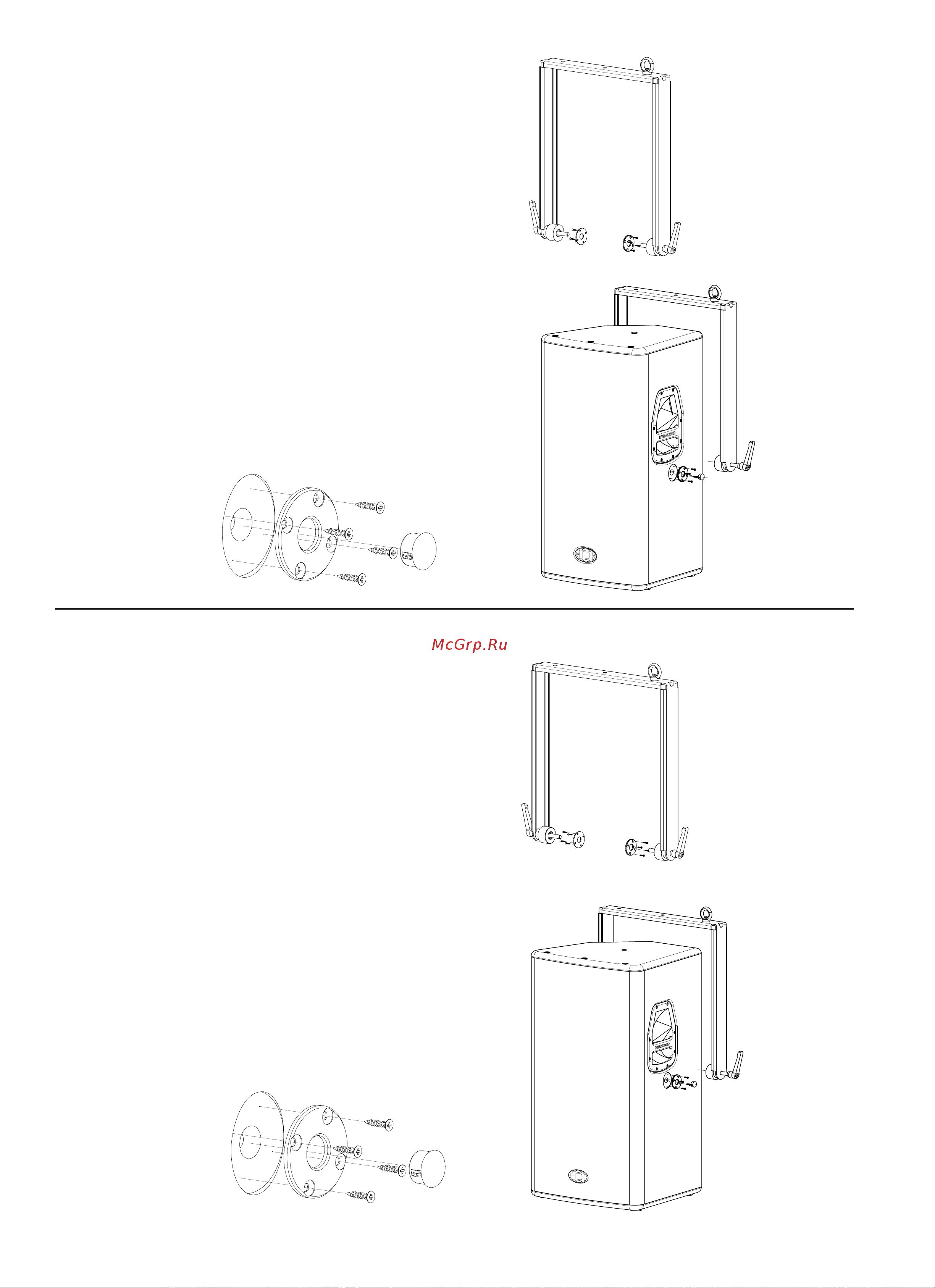

Assembly instruction:

1. Remove lateral plastic caps at the enclosure and

keep it for further use. Unscrew shaft screws.

2. Mount the wrinkle plates with the provided screws

on the enclosure; the caps removed before can be

used as a centering assistance.

3. Push ﬂ ight bracket from the rear onto the enclosure

and screw it with the cone handles onto the

enclosure.

4. Make sure that the ﬂ ight bracket is additionally

secured against falling down during operation.

For this the eye bolt mounted at the ﬂ ight bracket

should be used.

FB-VL122

D113111

FB-VL 152

Flight bracket for VL 152.

The FB-VL 152 can be equipped for different assembly
