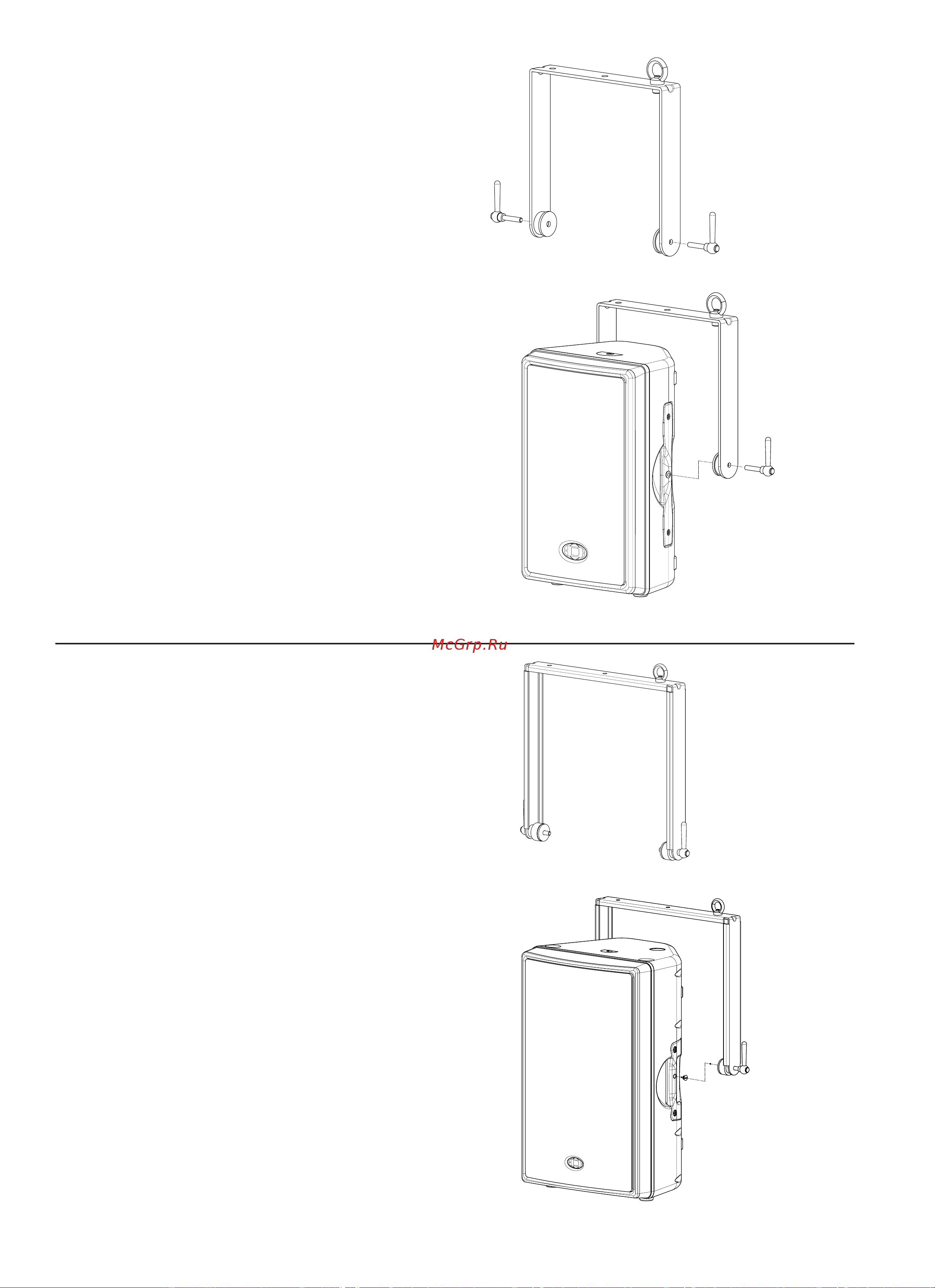

FB-D15
Flight bracket for D15-3.
The FB-D15 can be equipped for different assembly
requirements in each case with PCL-M10, TC-02 or FB-TV.
Assembly instruction:
1. Remove lateral plastic caps at the enclosure and
keep it for further use.
2. Push fl ight bracket from the rear onto the enclosure
and screw it with the cone handles onto the
enclosure.
3. Make sure that the fl ight bracket is additionally
secured against falling down during operation. For
this the eye bolt mounted at the fl ight bracket
should be used.
FB-D15
D113100
FB-D8
Flight bracket for D8.
The FB-D8 can be equipped for different assembly
requirements in each case with PCL-M10, TC-02 or FB-TV.
Assembly instruction:
1. Remove lateral plastic caps at the enclosure and
keep it for further use.
2. Push fl ight bracket from the rear onto the enclosure
and screw it with the cone handles onto the
enclosure.
3. Make sure that the fl ight bracket is additionally
secured against falling down during operation. For
this the eye bolt mounted at the fl ight bracket
should be used.
FB-D8
D113136
