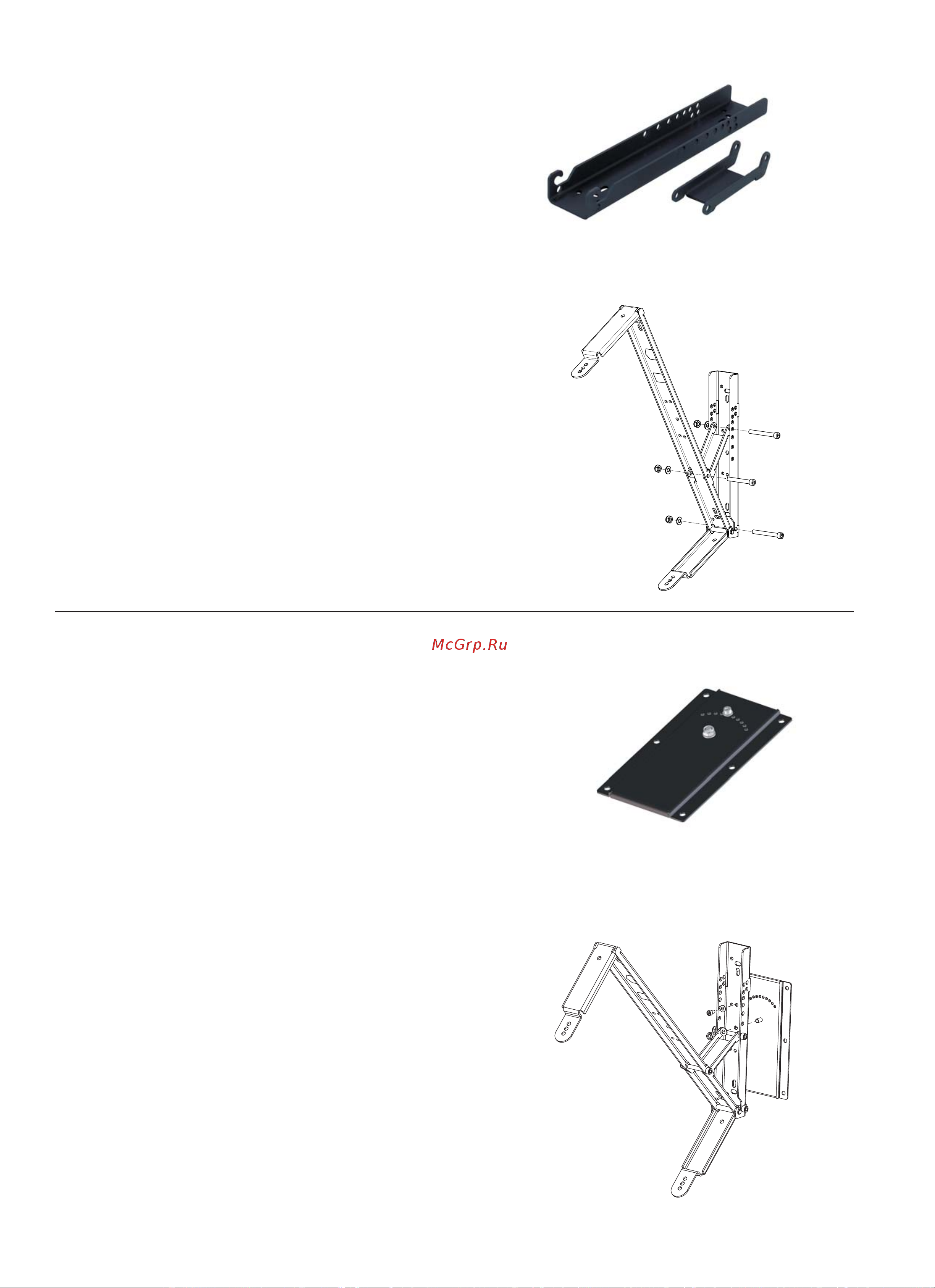

Dynacord D 12 [31/40] Rma rotatable mount accessory

TMA (Tilt Mount Accessory)

Wall mount for the wall mounting brackets MB...UMH. The

inclination can be adjusted between 5° and 45° in 5° steps.

An adjustment to the listeners direction with turn-in to the wall is

realized additionally with the RMA.

Assembly instruction:

The relevant assembly instructions at ceilings, walls or trusses

are to be considered absolutely.

1. Fasten wall mount with suitable screws and pegs

(10mm diameter) to the wall.

2. Mount incliner.

3. Install wall mounting bracket at the enclosure.

4. Hang on enclosure with wall mounting bracket into the

TMA on the bottom.

5. Insert safety screw and fasten immediately.

6. Adjust inclination angle and tight afterwards all screws

ﬁ rmly.

TMA (Tilt Mount Accessory)

D112815

RMA (Rotatable Mount

Accessory)

Rotor plate for the TMA and the wall mounting brackets MB...UMH

for adjustment of inward turned boxes onto the listeners.

Vertical rotation angle 45°, adjustable in 5° steps.

Assembly instruction:

The relevant assembly instructions at ceilings, walls or trusses

are to be considered absolutely.

1. Fasten RMA with 6 screws and pegs (10mm diameter)

to the wall.

2. Put on TMA onto the RMA and fasten with self-locking nut

3. Adjust desired angle of rotation and ﬁ x it with stop screw.

Tighten screws.

4. Install wall mounting bracket at the enclosure.

5. Set wall mounting bracket into the TMA and insert the

safety screw immediately.

6. Align enclosure.

7. Tighten all screws

RMA (Rotatable Mount Accessory)

D112807
