TC-02 (Truss Clamp)

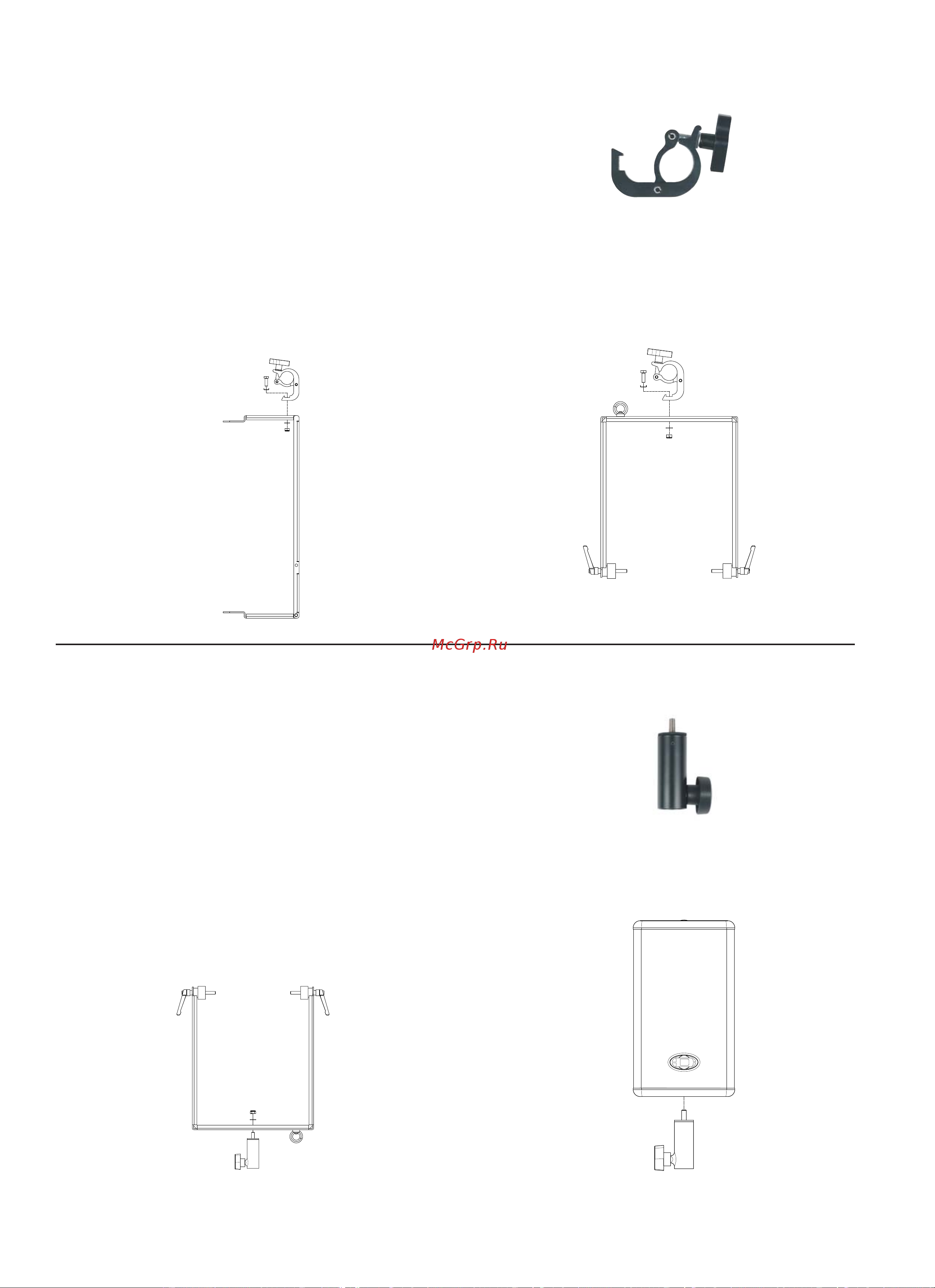

Clamp for the direct mounting of Flying Brackets (FB) and

Mounting Brackets (MB) on trusses.

Assembly instruction:

1. Mount the TC-02 on the FB using the associated M10

screw, lock washer, nut and ﬂ at washer. The lock washer

needs to be placed between M10 screw and Truss

Clamp.

The ﬂ at washer has to be installed between nut and

bracket.

2. Tighten screw and nut.

TC-02 (Truss Clamp)

D112808

PCL-M10

Adapter with M10 threaded bolt for use with the FB... Flight

brackets on speaker stands with 35mm ﬂ ange diameter. The

PCL-M10 can be used also for enclosures with M10 threaded

inserts as speaker stand sleeve.

Assembly instruction:

1. Fasten PCL-M10 with M10 nut and lock washer to the

ﬂ ight bracket.

2. The lock washer must be attached between nut and ﬂ ight

bracket.

3. Tighten nut.

PCL-M10

D113116
