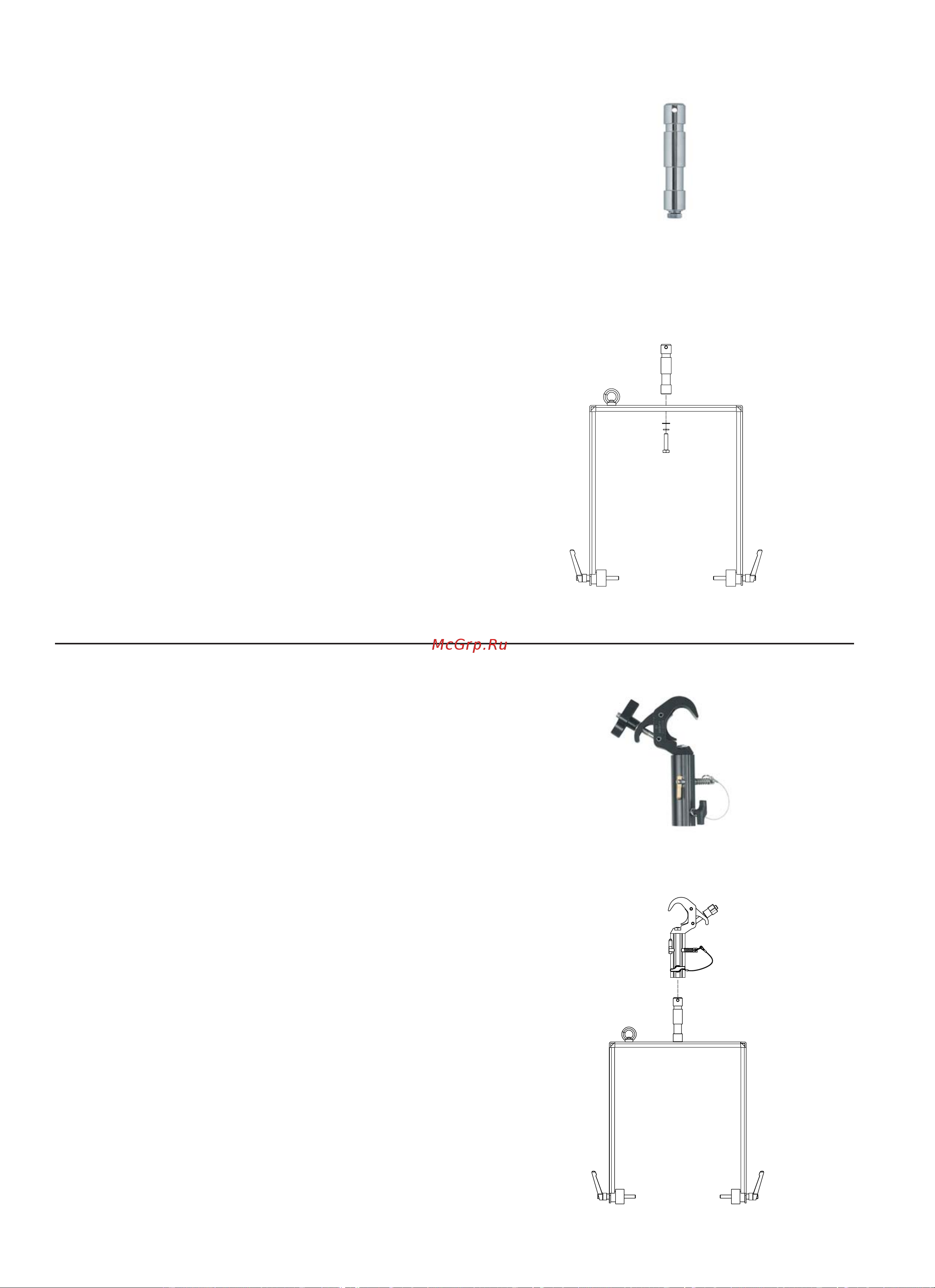

FB-TV (Flight Bracket TV stud)
TV stud for the FB -... fl ight brackets for use with suitable light
tripods or with PM-TV on suitable speaker stand. With truss
clamps (TC-TV) prepared for the insertion of TV studs.
Assembly instruction:
1. Fasten FB-TV with M10 screw and lock washer to the
fl ight bracket.
2. The lock washer must be attached between screw and
fl ight bracket.
3. Tighten screw.
FB-TV (Flight Bracket TV stud)
D113142
TC-TV (Truss Clamp TV stud)
Clamp for trusses with insertion for TV studs (FB-TV).
Assembly instruction:
1. Put TC-TV clamp onto the TV stud (FB-TV).
2. Lead safety pin through the lockhole and secure it by
bending the safety pin.
3. Tighten the lock screw of the TC-TV.
TC-TV (Truss clamp TV stud)
D112941
33
