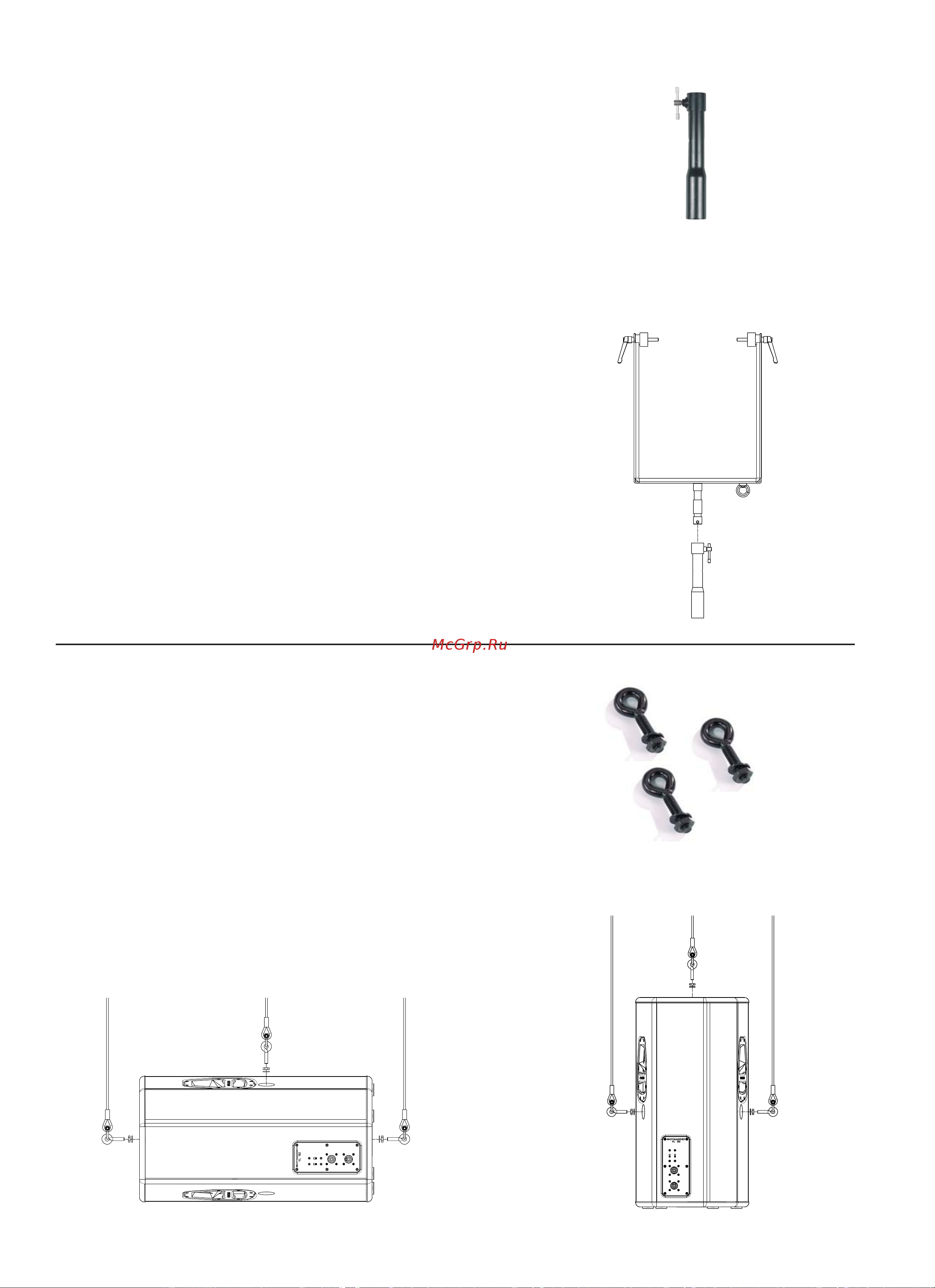

PM-TV (Pole Mount TV stud)
Adapter for the use of fl ight brackets with TV stud on stands such
as K&M 213 (Koenig&Meyer) or models with same M10 threaded
nut and same 35mm fl ange diameter (inside M10 threaded bolt).
Assembly instruction:
1. Set PM-TV onto the high stand fl ange of the tripod and
tighten it by turning.
2. Insert TV stud FB-TV to the PM-TV adapter and secure
with the locking bolt.
PM-TV (Pole Mount TV stud)
D112942
EBK-M10 (Eye Bolt Kit M10)
Eye bolt kit for fl ying the enclosure with chains or ropes.
Assembly instruction:
For safety reasons the suspension must be carried out at least
at 3 threaded inserts in the enclosure. The relevant assembly
instructions at ceilings, walls or trusses are to be considered
absolutely.
1. Remove the plastic covers of the necessary M10
threaded inserts at the enclosure.
2. Unscrew the shaft screws from the threaded inserts.
3. Screw in the eye bolts with thread locking compound and
secure it from the outside with lock nuts against rotating.
EBK-M10 (Eye Bolt Kit M10)
D113155
34
