WMK-10 (Wall Mount Kit)

Wall mount for VL 62 and VL262 and other small enclosures up

to 15kg. Universal adapter plate for standard 4-point mounting.

Adjustable in direction and inclination. Possible vertical inclination

angles up to 30°.

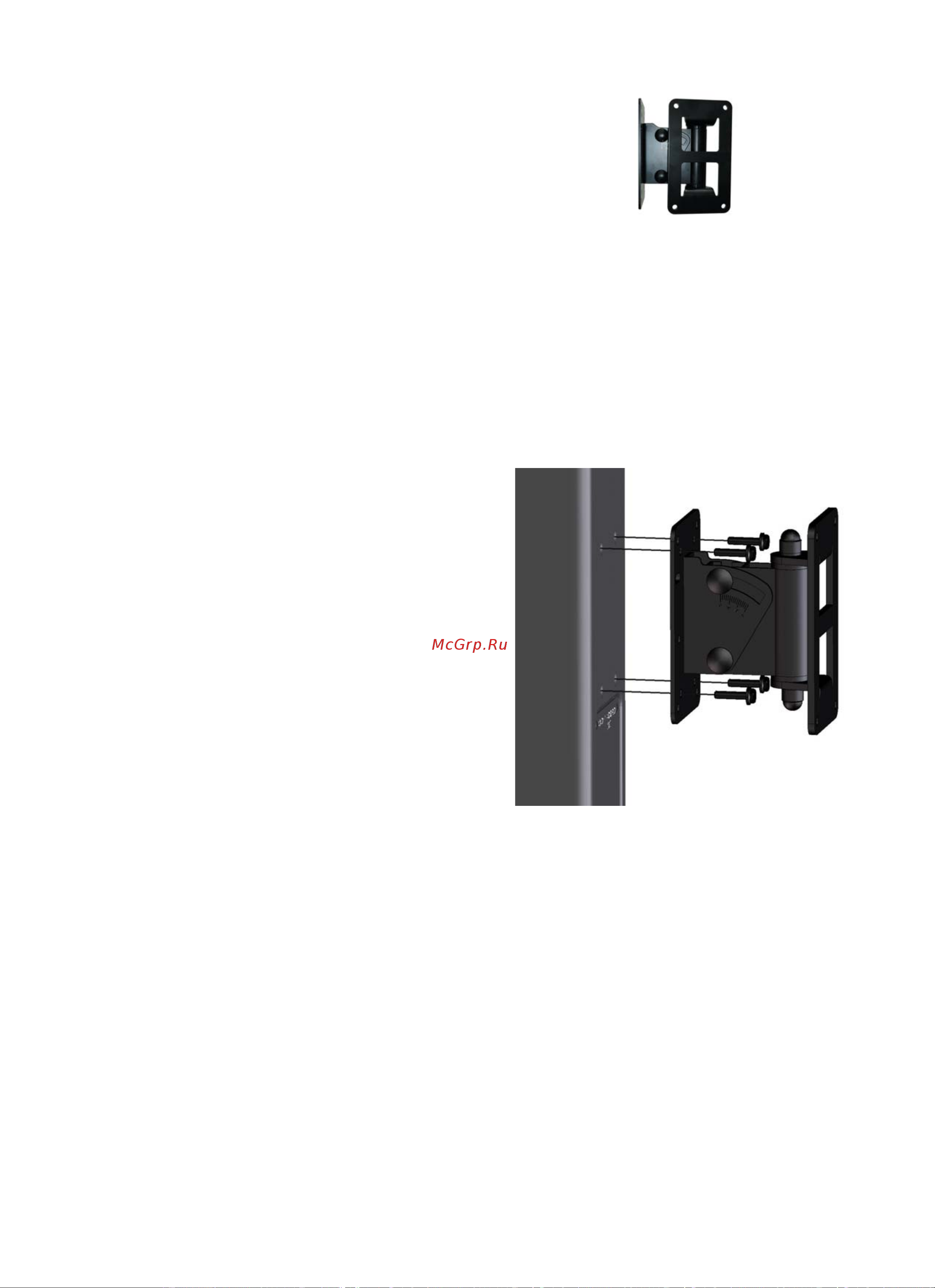

Assembly instruction:

The relevant assembly instructions at ceilings, walls or trusses

are to be considered absolutely.

1. Dismount tilt bracket with adapter from the swiveling

bracket of the wall mount.

2. Install wall mont with suitable mounting hardware at the

wall.

3. Fasten enclosure with the 4 attached screws to the

adapter.

4. Hang up adapter plate with tilt bracket into the swiveling

bracket of the wall mount.

5. Bolt the hanged up tilt bracket immediately with lock

screw, lock washer and locknut with the swiveling

bracket.

6. Adjust desired inclination angle by ﬁ xing the upper screw

connection at the tilt bracket.

WMK-10 (Wall Mount Kit)

D113137
