Dynacord D 12 [25/40] Mb d8 umh

MB 200 UMH

Wall mounting bracket for all D12 cabinet

Together with the TMA inclination angles between 5°

and 45° can be adjusted in 5° steps. An adjustment to

the listeners direction with turn-in to the wall is realized

additionally with the RMA.

Assembly instruction:

The relevant assembly instructions at ceilings, walls or

trusses are to be considered absolutely.

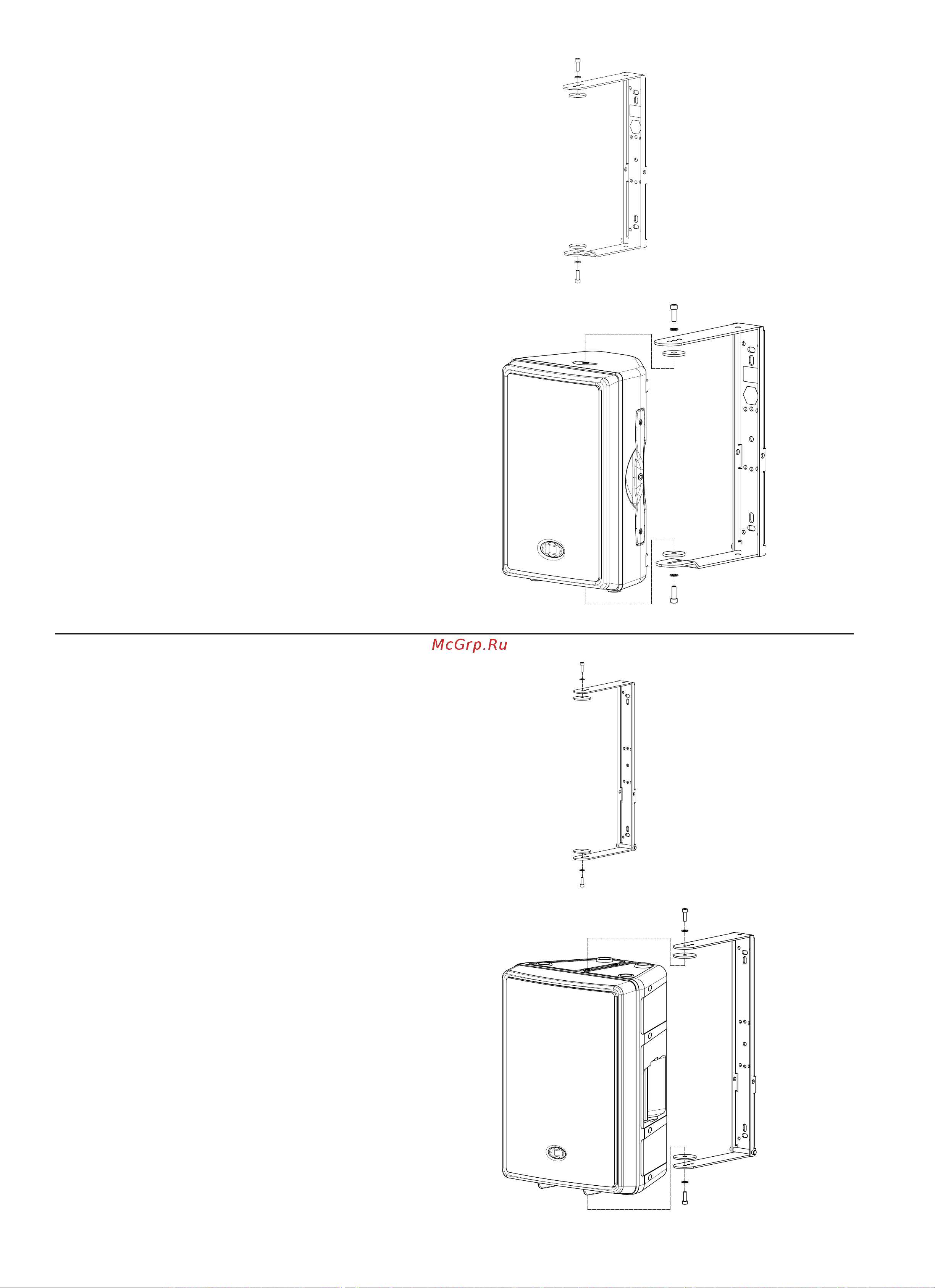

1. Install MB 200 UMH at the wall or ceiling with

suitable mounting material.

2. Remove the feet of the D12 enclosure and insert

the screws after removing the feet again.

3. Remove the plastic covers of the necessary M8

threaded inserts at the enclosure.

4. Insert enclosed rubber washer between bracket

and enclosure. Bolt mounting bracket together with

screw M8 and disk at the enclosure. Secure

screws with thread locking compound.

Tighten screws.

MB 200 UMH

D170183

MB D8 UMH

Wall mounting bracket for D8
