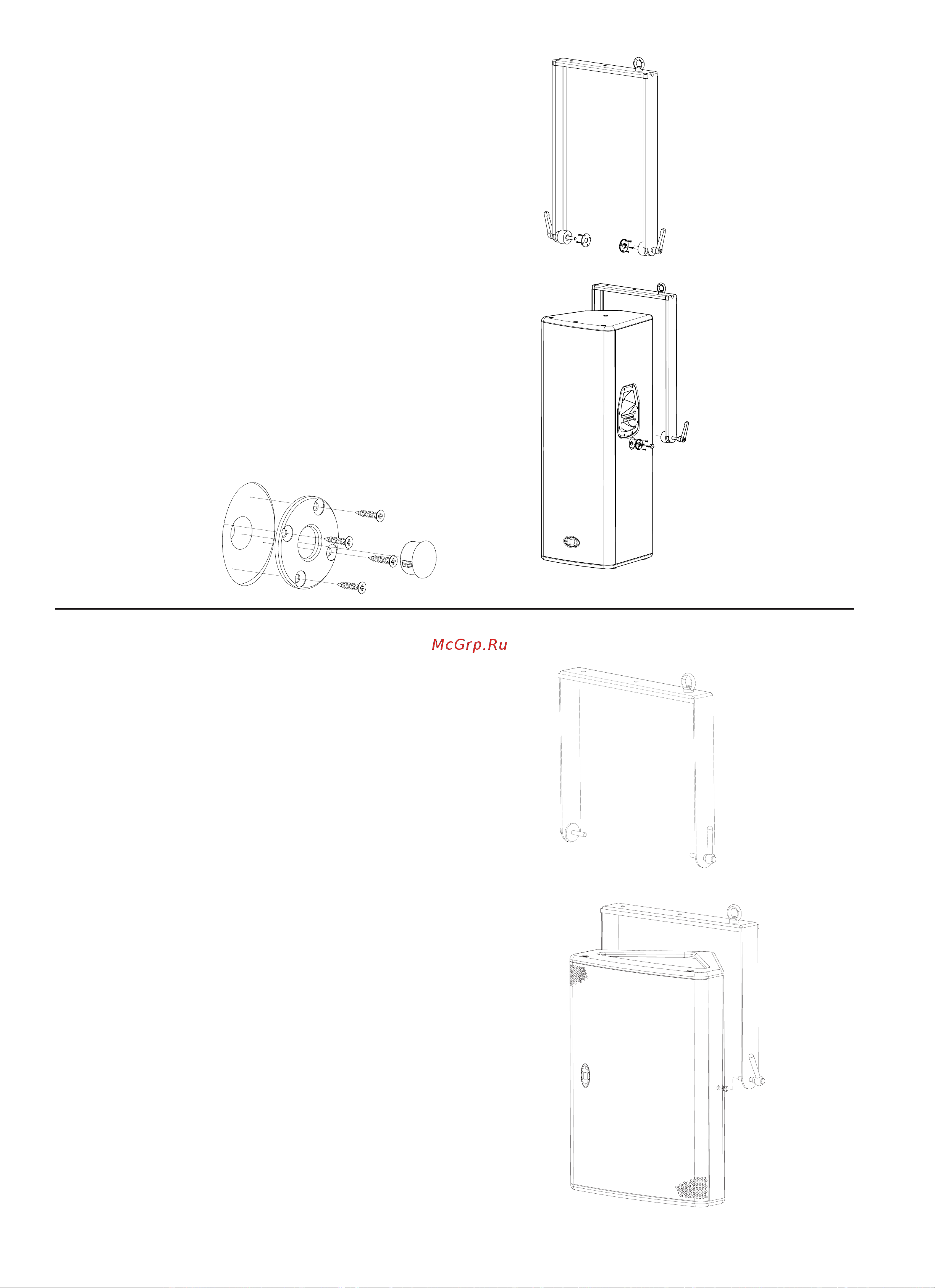

FB-VL 212

Flight bracket for VL 212.

The FB-VL 212 can be equipped for different assembly

requirements in each case with PCL-M10, TC-02 or FB-TV.

Assembly instruction:

1. Remove lateral plastic caps at the enclosure and

keep it for further use. Unscrew shaft screws.

2. Mount the wrinkle plates with the provided screws

on the enclosure; the caps removed before can be

used as a centering assistance.

3. Push ﬂ ight bracket from the rear onto the enclosure

and screw it with the cone handles onto the

enclosure.

4. Make sure that the ﬂ ight bracket is additionally

secured against falling down during operation.

For this the eye bolt mounted at the ﬂ ight bracket

should be used.

FB-VL212

D113152

FB-CXM 15

D113299

FB-CXM 15

Flight bracket for CXM 15..

The FB-CXM 15 can be equipped for different assembly

requirements in each case with PCL-M10, TC-02 or FB-TV.

Assembly instruction:

1. Remove lateral screws (see ﬁ g.) at the enclosure

and keep it for further use.

2. Push ﬂ ight bracket onto the enclosure and screw

it with the cone handles onto the enclosure.

3. Make sure that the ﬂ ight bracket is additionally

secured against falling down during operation.

For this the eye bolt mounted at the ﬂ ight bracket

should be used.
