Set Lists & Presets
4•4
• Use the Nav. Pad buttons or PRESETS knob to select the 2C destination location.
Note that as you select a new Bank/Channel location, the resulting Preset order

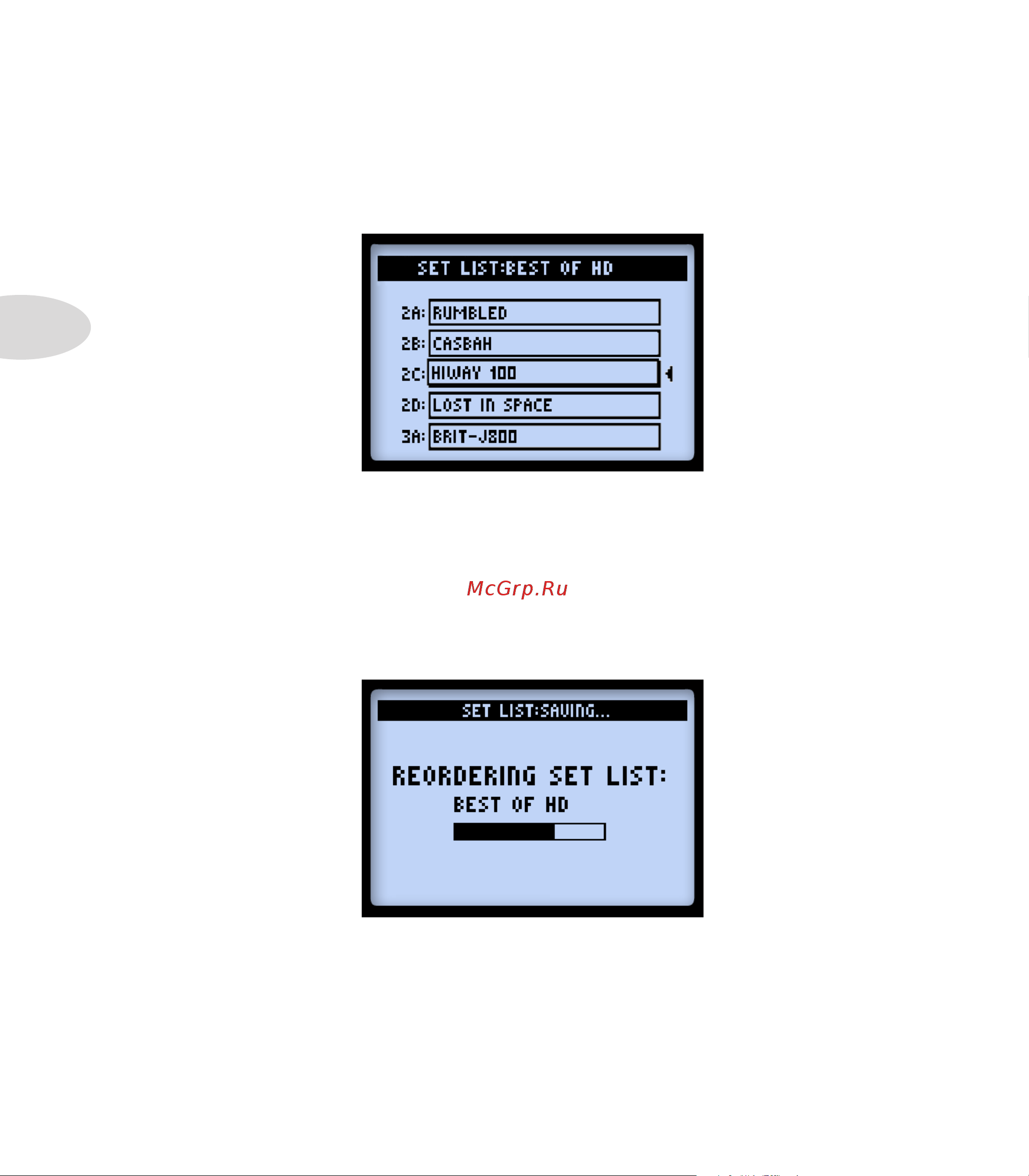

is displayed on the screen. For our example, “HIWAY 100” is inserted into 2C,
resulting in the Presets from the original location (2A) to the destination (2C) to
move up one slot:
“Hiway 100” moved from 2A to 2C
• Once you’ve placed the Preset over the desired channel location, press the MOVE
button again to “drop” it into the slot.
• Repeat the above steps to rearrange any additional Presets as desired. To commit
all your changes, you must next press the PRESETS button - you’ll see the
“Saving” screen displayed to indicate this process.
The Set List Saving screen
