TRANSLATION OF
THE ORIGINAL INSTRUCTIONS
CORDLESS DRILL WITH IMPACT
58G020
CAUTION: BEFORE USING THE POWER TOOL READ THIS MANUAL
CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.
DETAILED SAFETY REGULATIONS
SPECIFIC REGULATIONS REGARDING SAFE USE OF THE
DRILL
• Use ear protectors and safety goggles when operating
the drill. Exposure to noise may cause hearing loss. Metal dust
and other particles floating in the air may cause permanent eye
injury.
• When carrying out tasks when work tool can hit hidden
electric wires, hold the tool by insulated areas of the
handle. Contact with power supply line may transfer voltage to
metal parts of the tool and cause electric shock.
ADDITIONAL RULES FOR SAFE DRILL OPERATION
• Use only recommended batteries and chargers. Do not use
batteries and chargers for other purposes.
• Do not change direction of spindle rotation when the tool is
operating. Otherwise the drill may be damaged.
• Use soft, dry cloth to clean the drill. Never use detergents or
alcohol.
• Do not repair damaged device. Repairs are allowed only at the
manufacturer service or in an authorised workshop.
CORRECT OPERATION AND USE OF BATTERIES
• Battery charging process should be supervised by the user.
• Avoid charging the battery in temperature lower than 0
o
C.
• Use only the charger recommended by the manufacturer.
Using charger designed for other type of battery brings the risk
of fire.
• When the battery is not in use, store it away from metal
objects such as paper clips, coins, keys, nails, screws or any
other small metal objects that can short-circuit the battery
connectors. Short-circuit of battery connectors may cause burns
or fire.
• In case of battery damage and/or improper use it may
produce gas. Ventilate room and seek medical attention in
case of medical symptoms. Gas can damage respiratory tract.
• In extreme conditions liquid may leak out of the battery.
The liquid coming out of the battery may cause irritations
or burns. When a leak is found, follow the below procedure:
- Carefully wipe the liquid with a cloth. Avoid contact of the
liquid with skin and eyes.
- In case the liquid gets onto skin, immediately wash the spot
abundantly with clean water, you can also neutralize the liquid
with a mild acid, e.g. lemon juice or vinegar.
- When the liquid gets into eyes, wash it immediately with a lot of
clean water for at least 10 minutes. Seek medical advice.
• Do not use damaged or modified battery. Damaged or
modified batteries may behave unpredictably, causing fire,
explosion or risk of injuries.
• Do not expose the battery to humidity or water.
• Always keep the battery away from sources of heat. Do not
leave the battery for a long time in high temperature (in
direct sunlight, in proximity of heaters and wherever the
temperature exceeds 50°C).
• Do not expose the battery to fire or excessive temperature.
Exposure to fire or temperature above 130°C may cause explosion.
CAUTION! Temperature of 130°C can be also defined as 265°F.
• Observe all charging instructions. Do not charge the
battery in temperature outside of range defined in the
rating data table from the instruction manual. Incorrect
charging or charging in temperature outside of defined range
may damage the battery and increase the risk of fire.
BATTERY REPAIRS
• Do not repair damaged batteries. Battery can be repaired
only by the manufacturer or in an authorised workshop.
• When disposing of the worn out battery, take it to a service
point where you can utilize such dangerous wastes.
SAFETY REGULATIONS FOR THE CHARGER
• Do not expose the charger to humidity or water. Ingress of
water into the charger increases risk of electric shock. Use the
charger only in dry rooms.
• Disconnect the charger from power supply before starting any
maintenance or cleaning.
• Do not use the charger when placed on flammable
surface (e.g. paper, textiles) or in proximity of flammable
substance. Greater charger temperature when charging
increases risk of fire.
• Check condition of the charger, cable and plug before each
use. Do not use the charger if any damage is found. Do not
try to disassemble the charger. All repairs should be made at
an authorized service workshop. Improper charger assembly may
cause electric shock or fire.
• Children or persons who are physically, emotionally or
mentally disabled and other persons, whose experience or
knowledge is insufficient to use the charger while following all
safety rules should not use the charger without supervision of
person responsible for their safety. Otherwise there is a risk of
improper use and injuries in consequence.
• When the charger is not in use, it should be disconnected
from the mains network.
• Observe all charging instructions. Do not charge the
battery in temperature outside of range defined in the
rating data table from the instruction manual. Incorrect
charging or charging in temperature outside of defined range
may damage the battery and increase the risk of fire.
CHARGER REPAIRS
• Do not repair damaged charger. The charger can be repaired
only by the manufacturer or in an authorised workshop.
• When disposing of the worn out charger, take it to a service
point where you can utilize such wastes.
CAUTION! This device is designed to operate indoors.
The design is assumed to be safe, protection measures and
additional safety systems are used, nevertheless there is
always a small risk of injuries at work.
Li-Ion batteries may leak, set on fire or explode when
heated to high temperature or short-circuited. Do not store
the batteries in a car in hot and sunny days. Do not open
the battery. Li-Ion batteries contain electronic protection
devices that, if damaged, may cause fire or explosion of the
battery.

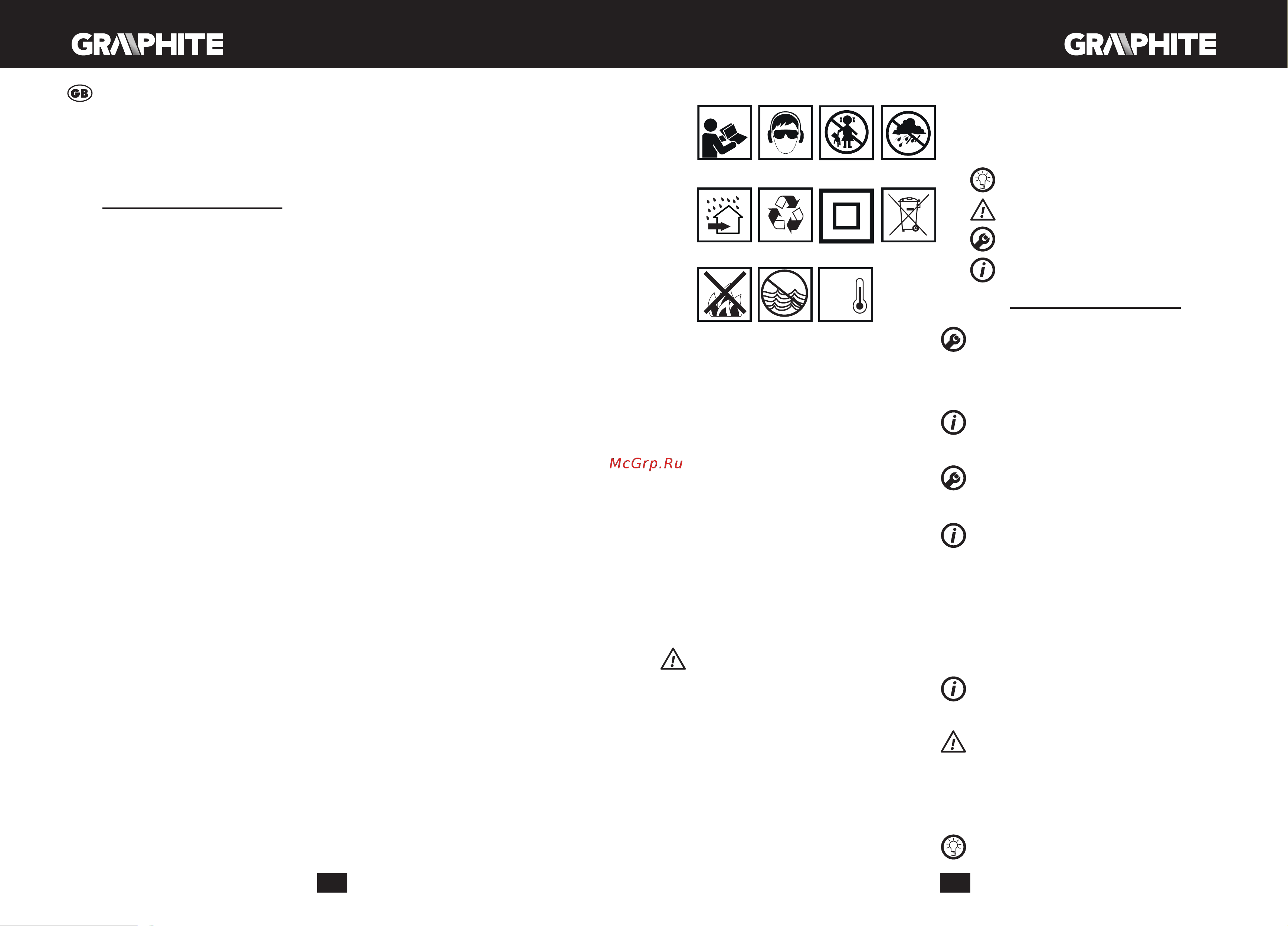

Explanation of used symbols
1 2 3 4
75
Max.
50°C
6 8
9 10 11
1. Read instruction manual, observe warnings and safety
conditions therein.
2. Use protective goggles and hearing protectors.
3. Keep the tool away from children.
4. Protect against rain.
5. Use indoors, protect from water and moisture.
6. Recycling.
7. Protection class 2.
8. Segregated waste collection.
9. Do not throw cells into fire.
10. Hazardous to water environment.
11. Do not allow to heat above 50°C.
CONSTRUCTION AND USE
Drill is a battery powered tool. Drive consists of a brushless DC
motor with planetary gear. The drill can operate with impact
action switched on or off. It is designed for screwing in and out
screws and bolts in wood, metal, plastics and ceramics, and for
non-impact drilling holes in these materials.
Impact action mode is used for drilling in concrete, stone, brick
etc.
Cordless, battery-powered power tools are especially useful
for works in construction and renovation tasks, woodworking,
interior furnishing, adaptation of premises and all tasks of
individual, amateur activities (tinkering).
Use the power tool in accordance with the manufacturer’s
instructions only.
DESCRIPTION OF DRAWING PAGES
Below enumeration refers to the device elements depicted on
the drawing pages of this manual.
1. Quick-release chuck
2. Ring of the quick release chuck
3. Torque adjustment ring
4. Gear switch
5. Direction selector switch
6. Holder
7. Battery
8. Battery lock button
9. Switch
10. Lighting
11. LED diodes
12. Charger
13. Button for battery level indication
14. Battery level indicator (LED)
15. Operation mode switch
* Differences may appear between the product and drawing.
MEANING OF SYMBOLS
CAUTION
WARNING
ASSEMBLY / SETTINGS
INFORMATION
PREPARATION FOR OPERATION
REMOVING AND INSERTING THE BATTERY
• Set the direction selector switch (5) in middle position.
• Push the battery lock button (8) and slide out the battery (7)
(fig. A).
• Insert charged battery (7) into the handle holder, you should
hear when the battery lock button (8) snaps.
BATTERY CHARGING
The device is supplied with partially charged battery. The battery
should be charged in ambient temperature between 4°C and
40°C. New battery, or one that has not been used for a long
time, will reach full efficiency after approximately 3 to 5 charge/
discharge cycles.
• Remove the battery (7) from the device (fig. A).
• Connect the charger to mains socket (230 V AC).
• Slide the battery (7) into the charger (12) (fig. B). Ensure the
battery is properly fitted (pushed to the end).
When the charger is connected to a mains socket (230 V AC), the
green diode (11) on the charger turns on to indicate connected
supply.
When the battery (7) is placed in the charger (12), the red diode
(11) on the charger turns on to indicate that the charging is in
progress.
Simultaneously, green diodes (14) of the battery level indication
are flashing in different configurations, see description below.
• All diodes are flashing - battery is empty and requires
charging.
• 2 diodes are flashing - the battery is partially discharged.
• 1 diode is flashing - the battery level is high.
Once the battery is charged, the diode (11) on the charger lights
green, and all battery level diodes (14) light continuously. After
some time (approx. 15 s) battery level indication diodes (14) turn
off.
Do not charge the battery for more than 8 hours. Exceeding
this time limit may cause damage to battery cells. The charger
will not turn off automatically when the battery is full. Green
diode on the charger will remain on. Battery level indication
diodes turn off after some time. Disconnect power supply
before removing the battery from the charger socket. Avoid
consecutive short chargings. Do not charge the battery after
short use of the tool. Significant decrease of the period
between chargings indicates the battery is used up and should
be replaced.
Batteries heat up when charging. Do not operate just
after charging – wait for the battery to cool down to room
temperature. It will prevent battery damage.
Содержание
- Instrukcja oryginalna obsługi wiertarko wkrętarka akumulatorowa z udarem 58g020 4
- Przygotowanie do pracy 4
- Szczegółowe przepisy bezpieczeństwa 4
- Obsługa i konserwacja 5
- Parametry techniczne 5
- Praca ustawienia 5
- Deklaracja zgodności we 6
- Gwarancja i serwis 6
- Ochrona środowiska 6
- Detailed safety regulations 7
- Preparation for operation 7
- Translation of the original instructions cordless drill with impact 58g020 7
- Operation and maintenance 8
- Operation settings 8
- Technical parameters 8
- Detaillierte sicherheitsvorschriften 9
- Environmental protection 9
- Li ion 9
- Übersetzung der originalbetriebsanleitung accu slagboorschroevendraaier 58g020 9
- Betrieb einstellungen 10
- Vorbereitung auf den einsatz 10
- Bedienung und wartung 11
- Li ion 11
- Technische parameter 11
- Umweltschutz 11
- Перевод оригинальной инструкции ударная аккумуляторная дрель шуруповерт 58g020 11
- Специальные требования безопасности 11
- Подготовка к работе 12
- Работа настройка 13
- Технические характеристики 13
- Техническое обслуживание 13
- Li ion 14
- Защита окружающей среды 14
- Информация о дате изготовления 14
- Который находится на изделии 14
- Переклад інструкції з оригіналу дриль шрубоверт акумуляторний ударний 58g020 14
- Під час користування устаткуванням 14
- Спеціальні правила техніки безпеки 14
- Указана в серийном номере 14
- Порядок роботи робочі налаштування 15
- Підготовка до роботи 15
- Зберігання та обслуговування 16
- Технічні характеристики 16
- Eredeti használati utasítás fordítása akkumulátoros ütvefúró csavarozó 58g020 17
- Li ion 17
- Részletes biztonsági előírások 17
- Охорона середовища 17
- A munka előkészítése 18
- Kezelése és karbantartása 18
- Munkavégzés beállítások 18
- Környezetvédelem 19
- Li ion 19
- Műszaki jellemzők 19
- Norme specifice de securitate 19
- Traducere a instrucțiunilor originale mașină de găurit și de înșurubat cu percuții și cu acumulator 58g020 19
- Pregătirea de lucru 20
- Utilizare setări 20
- Li ion 21
- Parametri tehnici 21
- Protecţia mediului 21
- Utilizarea și întreținere 21
- Podrobné bezpečnostní pokyny 22
- Překlad původního návodu k používání akumulátorová vrtačka šroubovák s příklepem 58g020 22
- Provoz nastavení 23
- Péče a údržba 23
- Příprava k práci 23
- Technické parametry 23
- Detailné bezpecnostné predpisy 24
- Li ion 24
- Ochrana životního prostředí 24
- Preklad pôvodného návodu na použitie akumulátorový príklepový vŕtací skrutkovač 58g020 24
- Pred uvedením do prevádzky 25
- Práca nastavenia 25
- Li ion 26
- Ochrana životného prostredia 26
- Ošetrovanie a údržba 26
- Prevod izvirnih navodil udarni baterijski vrtalnik vijačnik 58g020 26
- Specifični varnostni predpisi 26
- Technické parametre 26
- Priprava na uporabo 27
- Uporaba nastavitve 27
- Li ion 28
- Tehnični parametri 28
- Varovanje okolja 28
- Vzdrževanje in hramba 28
- Originalios instrukcijos vertimas akumuliatorinis gręžtuvas suktuvas su kalimu 58g020 29
- Pagrindinės darbo saugos taisyklės 29
- Pasiruošimas darbui 29
- Aptarnavimas ir priežiūra 30
- Darbas ir reguliavimas 30
- Techniniai duomenys 30
- Aplinkos apsauga 31
- Instrukciju tulkojums no oriģinālvalodas akumulatora triecienurbjmašīna skrūvgriezis 58g020 31
- Li ion 31
- Īpaši drošības noteikumi 31
- Apkalpošana un apkope 32
- Darbs iestatījumi 32
- Sagatavošanās darbam 32
- Tehniskie parametri 32
- Algupärase kasutusjuhendi tõlge löök akutrell kruvikeeraja 58g020 33
- Eriohutusjuhised 33
- Li ion 33
- Vides aizsardzība 33
- Ettevalmistus tööks 34
- Töö seadistamine 34
- Kasutamine ja hooldus 35
- Keskkonnakaitse 35
- Li ion 35
- Tehnilised parameetrid 35
- Подробни указания за безопасност 35
- Превод на оригиналната инструкция акумулаторен ударен винтоверт 58g020 35
- Подготовка за работа 36
- Обслужване и поддръжка 37
- Работа настройки 37
- Технически параметри 37
- Li ion 38
- Posebni propisi o sigurnosti 38
- Prijevod originalnih uputa akumulatorska udarna bušilica izvijač 58g020 38
- Опазване на околната среда 38
- Priprema za rad 39
- Rad postavke 39
- Li ion 40
- Opšte mere bezbednosti 40
- Prevod orginalnog uputstva akumulatorska bušilica odvijač s udarom 58g020 40
- Rukovanje i održavanje 40
- Tehnički parametri 40
- Zaštita okoliša 40
- Priprema za rad 41
- Rad postavke 41
- Korišćenje i održavanje 42
- Li ion 42
- Tehničke karakteristike 42
- Zaštita sredine 42
- Ειδικεσ απαιτησεισ ασφαλειασ 43
- Μεταφραση του πρωτοτυπου των οδηγιων χρησησ επαναφορτιζομενο κρουστικο δραπανοκατσαβιδο 58g020 43
- Λειτουργια ρυθμισεισ 44
- Προετοιμασια για εργασια 44
- Li ion 45
- Normas de seguridad detalladas 45
- Traducción del manual original taladro atornillador de imapacto a batería 58g020 45
- Προστασια περιβαλλοντοσ 45
- Τεχνικα χαρακτηριστικα 45
- Τεχνικη συντηρηση 45
- Preparación para trabajar 46
- Trabajo configuración 46
- Li ion 47
- Parametros técnicos 47
- Protección medioambiental 47
- Uso y configuración 47
- Norme particolari di sicurezza 48
- Traduzione delle istruzioni originali trapano avvitatore a percussione senza fili 58g020 48
- Funzionamento regolazioni 49
- Preparazione al funzionamento 49
- Utilizzo e manutenzione 49
- Gedetailleerde veiligheidsvoorschriften 50
- Parametri tecnici 50
- Protezione dell ambiente 50
- Vertaling van de originele handleiding van de accu slagboorschroevendraaier 58g020 50
- Werk instellingen 51
- Werkvoorbereiding 51
- Bediening en onderhoud 52
- Li ion 52
- Milieubescherming 52
- Technische parameters 52
- Consignes de sécurité détaillées 53
- Traduction de la notice originale perceuse visseuse à percussion sans fil 58g020 53
- Maintenance et entretien 54
- Préparation au travail 54
- Utilisation réglage 54
- Protection de l environnement 55
- Spécifications techniques 55
Похожие устройства
- Partex от 2 до 8 кг, стяжная стропа НФ-00000274-2 Чертеж пенала
- Gigant 180x100x75 мм Т-18 Рекомендательные письма
- AG47 EcoDescaler Описание средства
- Partner PP-600F 506001 Инструкция к станку Partner PP-600F
- Partner PP-6025W 560251 Инструкция к станку Partner PP-6025W
- ДЕКАСТ ОСВХ-40 "НЕПТУН" (13370) 76-40-01 Образец паспорта ОСВХ_ОСВУ
- OBO Bettermann US 3 20 FS, U-профиль, конструкционная, L=200 мм, сталь, конвейерный цинк 6342302 Инструкция
- OBO Bettermann US 3 30 FS, U-профиль, конструкционная, L=300 мм, сталь, конвейерный цинк 6342304 Инструкция
- OBO Bettermann US 3 40 FS, U-профиль, конструкционная, L=400 мм, сталь, конвейерный цинк 6342306 Инструкция
- OBO Bettermann US 5 100 FT, U-профиль, конструкционная, L=1000 мм, сталь, горячий цинк 6340962 Инструкция
- Worx 20В, 60Нм, бесщеточная, 2Ач х2, ЗУ, кейс WX102 Инструкция по эксплуатации
- Deko DCUT-40 051-4688 Инструкция по эксплуатации
- Arlight SMART-K56-DMX 1шт 028450 Инструкция
- Бергауф Deko fixer акриловый, 10 кг 71577 Инструкция
- Бергауф Deko fixer акриловый, 3 кг 71576 Инструкция
- Deko DKIS, 20В, 2х4.0Ач, 400Нм, в кейсе 063-4432 Инструкция
- Deko DKCH20FU-Li в кейсе + оснастка 5 шт., 20 В, 2x5.0Ач 063-4419 Инструкция по эксплуатации
- Deko DTC 180-600 063-4984 Инструкция по эксплуатации
- Deko DTS-1500 065-1219 Bycnherwbz
- CORALINO LIGHT Голубой туман CL1001 CORALINO LIGHT Краска аэрозольная декоративная Голубой туман
