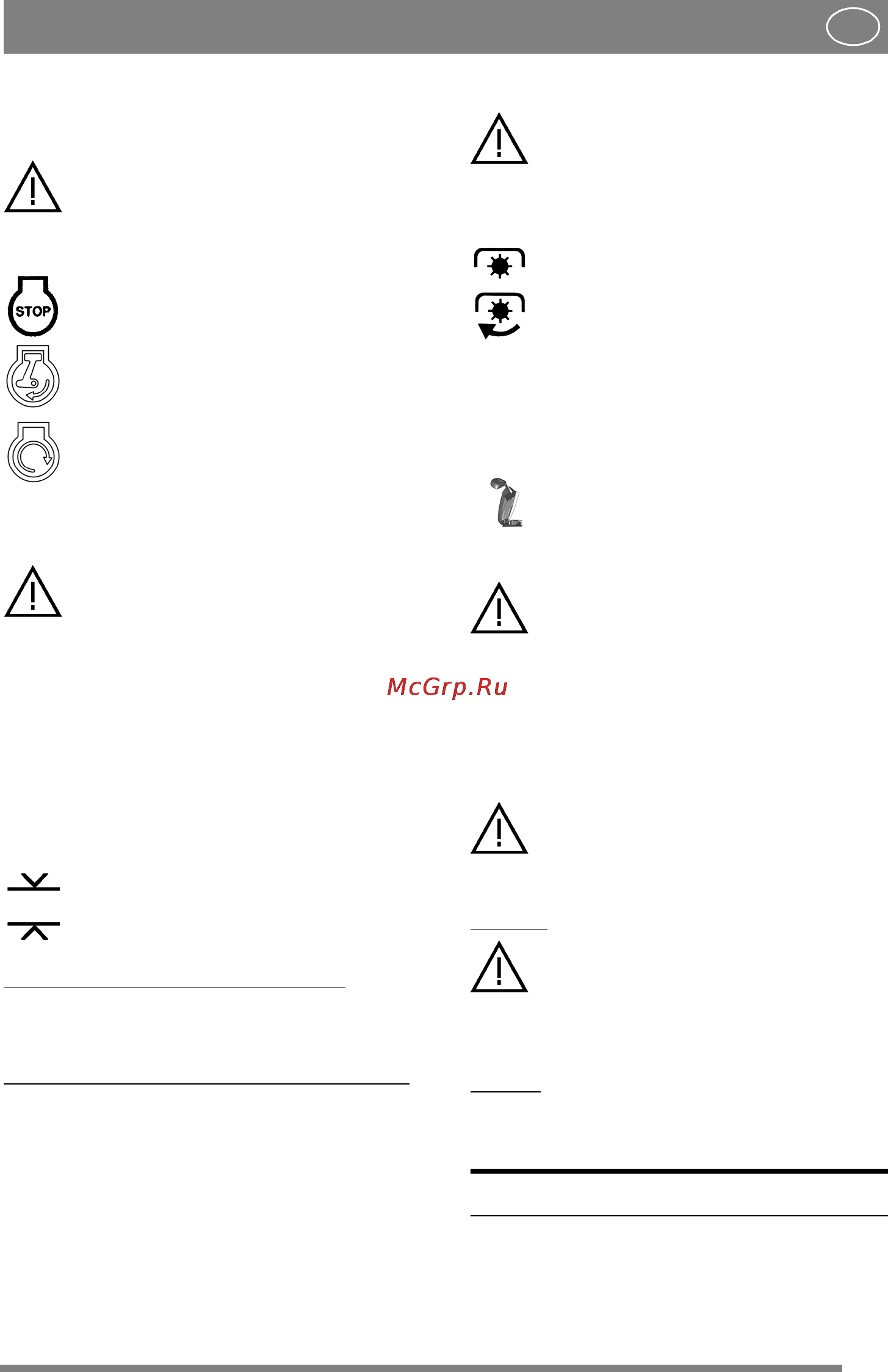

55
ENGLISH
EN
3.4.4 Ignition lock (1:M)
Ignition lock used for starting and stopping the en-
gine.
Do not leave the machine with the key
in position 2 or 3. There is a risk of dis-
charging the battery and causing dam-
age to it.
Four positions:
1. Stop position – the engine is short-
circuited. The key can be removed.
2 and 3. Operating position
4. Start position – the electric start motor
is activated when the key is turned to the
spring-loaded start position. Once the en-
gine has started, allow the key to return to
operating position 2 or 3.
3.4.5 Gear lever (1:J)
Never shift gears whilst driving. The
machine must be stationary with the
service brake depressed before shifting.
The gear lever is used to select one of the three for-
ward gears in the gearbox (1-2-3), neutral (N) or
reverse (R).
The pedal (1:D) must be depressed when shifting.
NOTE! If the desired gear is difficult to engage, re-
lease and depress the pedal (1:D). Try again. Never
force a gear in.
3.4.6 Cutting deck (1:C)
3.4.6.1 Transport position – Cutting position
(1:G)
Pedal for transport position – cutting posi-
tion.
Raising the deck to the transport position
:
1. Depress the pedal (1:G) fully.
2. Turn the catch (1:F) to the right.
3. Release the pedal.
Lowering the cutting deck to the cutting position
:
1. Depress the pedal (1:G) fully.
2. Release the pedal.
3.4.6.2 Engaging the cutting deck (1:L)
The cutting deck must never be en-
gaged when in the transport position.
This will damage the belt transmission.
Lever for engaging and disengaging the cutting
deck.
Two positions:
1.Front/lower position – cutting deck dis-
engaged.
2. Rear/upper position – cutting deck en-
gaged.
3.4.6.3 Setting the cutting height (1:H)
The cutting height can be set in 9 fixed positions
using the lever (1:H).
3.4.7 Seat (1, 5:A)
The seat can be folded and adjusted front-
rear. To adjust the seat, loosen the screws
attaching the seat to the seat plate, set the
seat to the desired position and tighten the
screws. Tightening torque: 20-24 Nm.
If the screws are tightened more than 24
Nm, the seat will be damaged.
The seat is equipped with a safety switch that is
connected to the machine’s safety system. This
means that certain dangerous activities are not pos-
sible when there is nobody sitting on the seat. See
also 5.4.2.
3.4.8 Engine casing
The machine may not be operated un-
less the engine casing is folded down.
Risk of burns and crushing injuries.
In order to inspect and carry out maintenance on
the engine, the engine casing must be opened.
Opening:
The engine must not be running when
the casing is opened. Risk of serious in-
jury.
1. Fold the seat forward.
2. Grip the casing at the front edge (6:Q) and fold
the casing up rearwards.
Closing:
Grip the casing at the front edge and fold the cas-
ing down. Then reset the seat.
4 AREAS OF USE
The machine must only be used for cutting grass in
private gardens.
NOTE! This machine is not intended to be driven
on public roads.
