DPH-150S has three different ways to different users.
Use phone keypad.
Use web browserrecommendatory way.
Use telnet with CLI command.
4.1.2. Password Configuration
There are two levels to access to phone: root level and general level. User with root level can
browse and set all configuration parameters, while user with general level can set all configuration
parameters except SIP (1-2) that some parameters can not be changed, such as server address
and port. User will has different access level with different username and password.
Default user with general level
usernameguest
passwordguest
Default user with root level
usernameadmin
passwordadmin
The default password of phone screen menu is 123.
4.2. Setting via web browser
When this phone and PC are connected to network, enter the IP address of the wan port in this
phone as the URL (e.g. http://xxx.xxx.xxx.xxx/ or http://xxx.xxx.xxx.xxx:xxxx/).
If you do not know the IP address, you can look it up on the phone’s display by pressing
button .

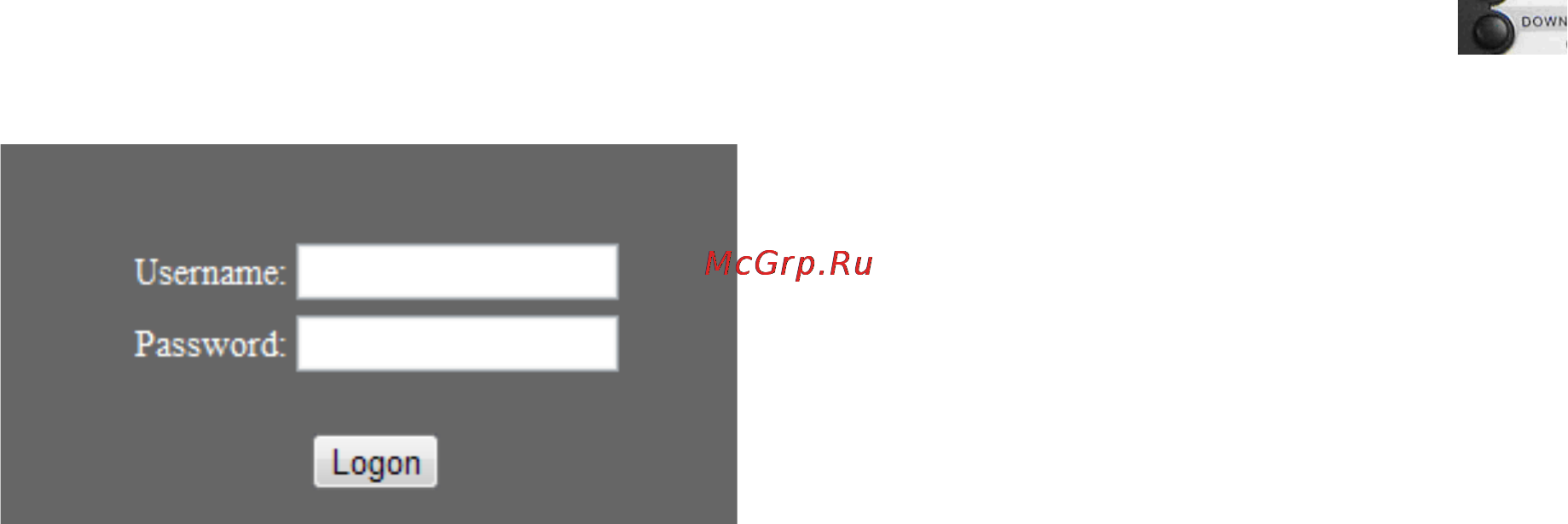

The login page is as below picture
:Input username and password, click “logon”, and you will enter setting web interface.
There is a selection menu on the left side of the web interface. Click on the desired submenu; the
current settings of this submenu will be displayed in the larger field on the right. You can now
modify and store the values by using mouse and keyboard of your PC. To save the changes, click
on the submenu “maintenance” and then click the “config” button and the “Save” button on the
right field.
4.3. Configuration via WEB
4.3.1. BASIC
4.3.1.1. Status
