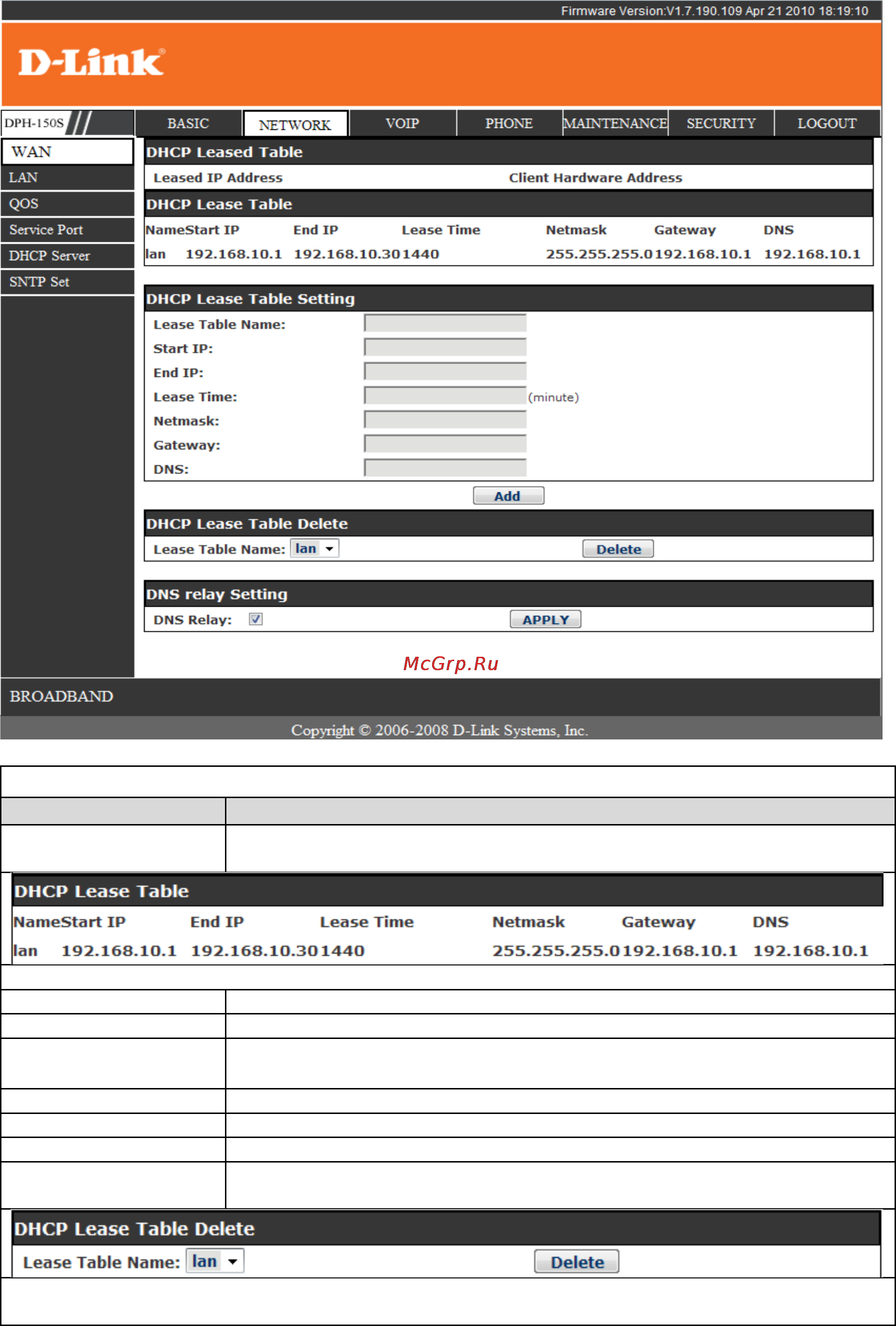

DHCP SERVER
Field name explanation
DHCP Leased Table IP-MAC mapping table. If the LAN port of the phone connects to a
device, this table will show the IP and MAC address of this device.
Shows the DHCP Lease Table ， the unit of Lease time is Minute.
Lease Table Name Specify the name of the lease table
Start IP Set the start IP address of the lease table
End IP
Set the end IP address of the lease table, the network device connected
to LAN port will get IP address between Start IP and End IP by DHCP.
Netmask Set the Netmask of the lease table
Gateway Set the Gateway of the lease table
Lease Time Set the Lease Time of the lease table
DNS Set the default DNS server IP of the lease table; Click the Add button to
submit and add this lease table
Select name of lease table, click the Delete button will delete the selected lease table from DHCP
lease table.
25
