D-Link DPH-150SE [5/53] Port for connecting
![D-Link DPH-150SE [5/53] Port for connecting](/views2/1013396/page5/bg5.png)

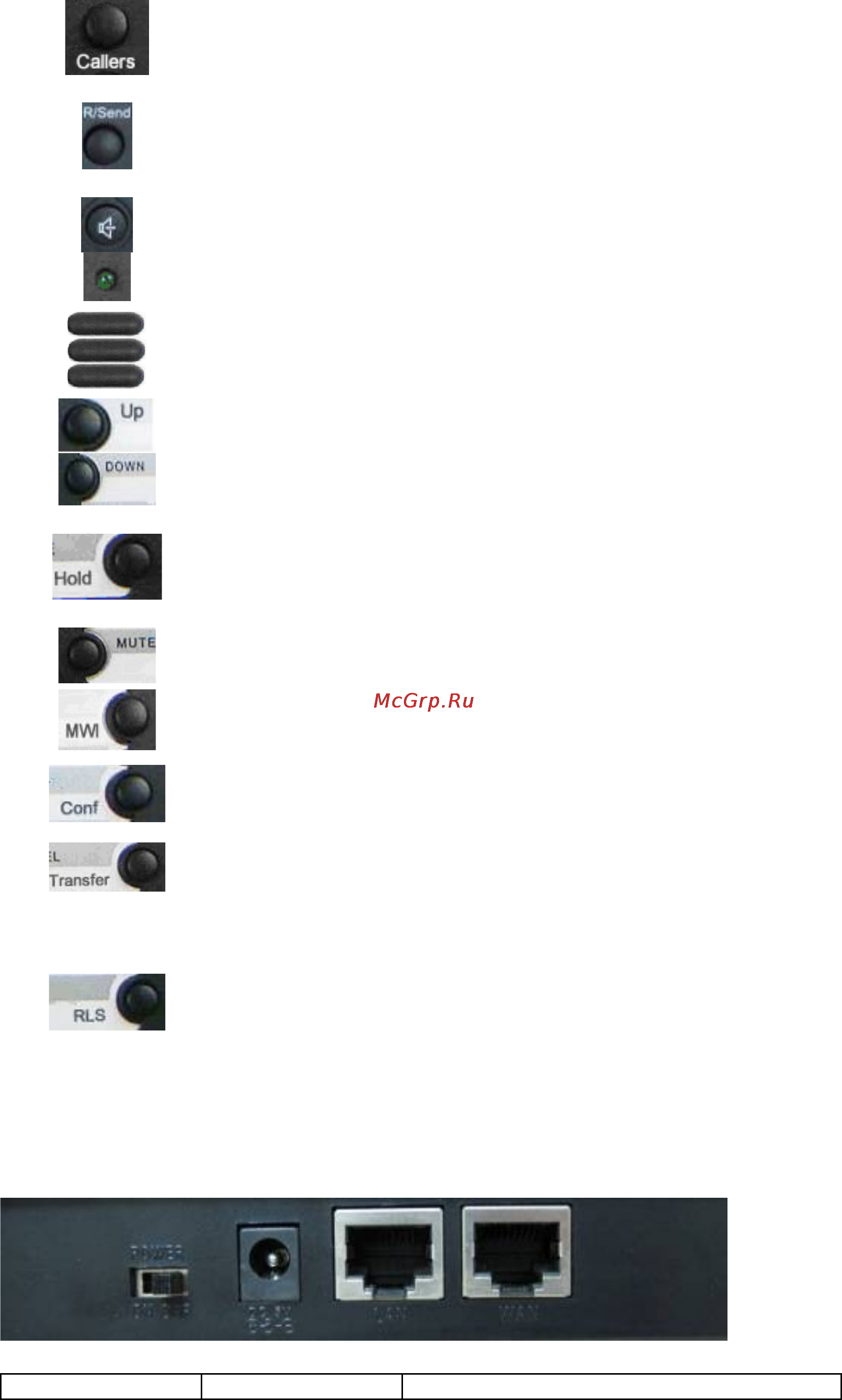

Callers
In idle/pickup/calling mode, press the Callers key to
Check the Income/Outgoing/Missed calls records.
Press this key again will return to idle mode
R/send
In the hook off /hands-free mode, use the key to
dial the last call number; use this key to make a
quick dial as soon as you select your desired
number in phone book or callers. In the idle state,
use the key to browse the outgoing call log.
Speaker Enter into hands-free mode.
LED LED blinks to remind user new voicemail.
Soft1
Soft2
Soft3
Use the Softkey to realize the various functions,
like
SMS/SDial/Memo/Enter/Next/Del/Save/Quit/Dial/E
dit/Redial/EDial, etc.
UP/DOWN
IP can be viewed through the down key ， If the
Menu, you can browse menus using this button can
also adjust the volume and other settings
Hold
Temporarily hold the active call during the talking;
press the key again to unhold the call. (3.1.5-
Calling Hold). In the idle state, press this key to
enable the DND, press the key again to disable the
DND.
mute
Press this key in calling mode, you can hear the
other side, and the other side can not hear you
MWI
Use this key to read old or new message. User can
replace it with other functions, like pickup key,
record key, etc.
Conf
When a two-way call, press this button to enter the
tripartite meeting.(please refer to 3.1.6.-call transfer
for more details).
Transfer
Use the key to realize blind transfer or attended
transfer .(please refer to 3.1.4.-call transfer for
more details).
RLS
In the call state, can use this key to end the call
and other operations and return to the call mode; in
the Menu menu, use this key to return to standby
mode. NOTE: In the course of the dialogue
machine configuration, do not press the Release
key, because the press Release key, the phone will
return to the standby mode, but just did not save
the configuration will be abandoned.
1.4. Port for connecting
POWER Power switch Select ON/OFF
5
