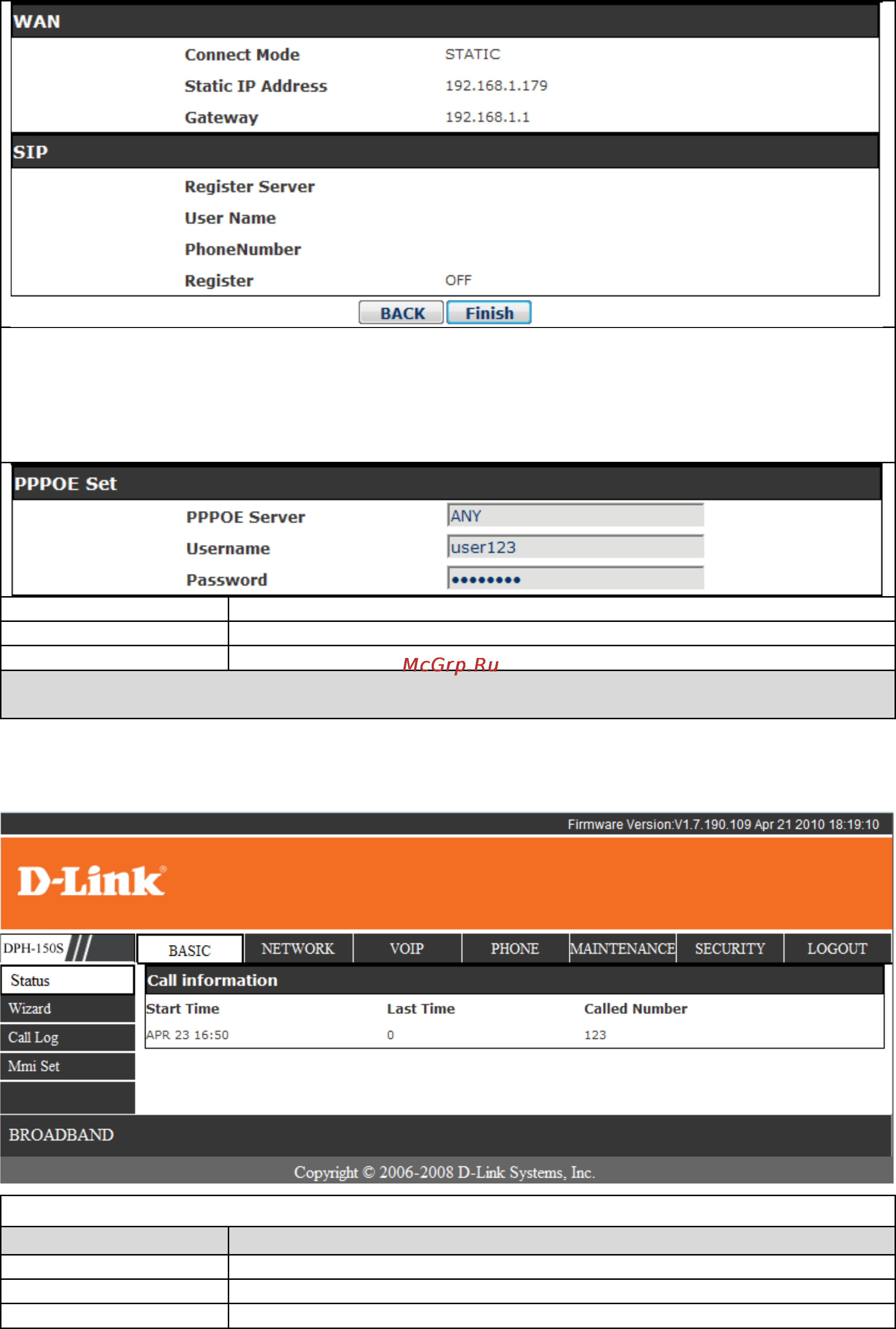

Display detailed information that you manual config.
Choose DHCP MODE，click【NEXT】to config simple SIP(default SIP1). You can browse it too.
Click【BACK】to return to the last page. Like Static IP MODE。
Choose PPPoE MODE，click【NEXT】to config the PPPoE account/password and SIP(default
SIP1). You can browse it too. Click【BACK】to return to the last page. Like Static IP MODE。
PPPoE Server It will be provided by ISP.
Username Input your ADSL account.
Password Input your ADSL password.
Notice: Click【Finish】button after finish your setting, IP Phone will save the setting automatically
and reboot. After reboot, you can dial by the SIP account.
4.3.1.3. Call Log
You can look up all the outgoing calls through this page.
Call Log
Field name explanation
Start Time Display the start time of the outgoing call
Last Time Display the conversation time of the outgoing call.
Called Number Display the account/protocol/line of the outgoing call.
18
