Password Input your ADSL password.
Notice:
1)Click “Apply” button after finishe your setting, IP Phone will save the setting automatically
and new setting will take effect.
2)If you modify IP address, the web will not response by the old IP address. Your need input
new IP address in the address column to logon in the phone.
3)If networks ID which is distributed by DHCP server is same as network ID which is used by
LAN of system, phone will use the DHCP IP to set WAN, and modify LAN’s networks ID(for
example, system will change LAN IP from 192.168.10.1 to 192.168.11.1) when phone uses
DHCP client to get IP in startup; if phone uses DHCP client to get IP in running status and
network ID is also same as LAN’s, phone will refuse to accept the IP to configure WAN.

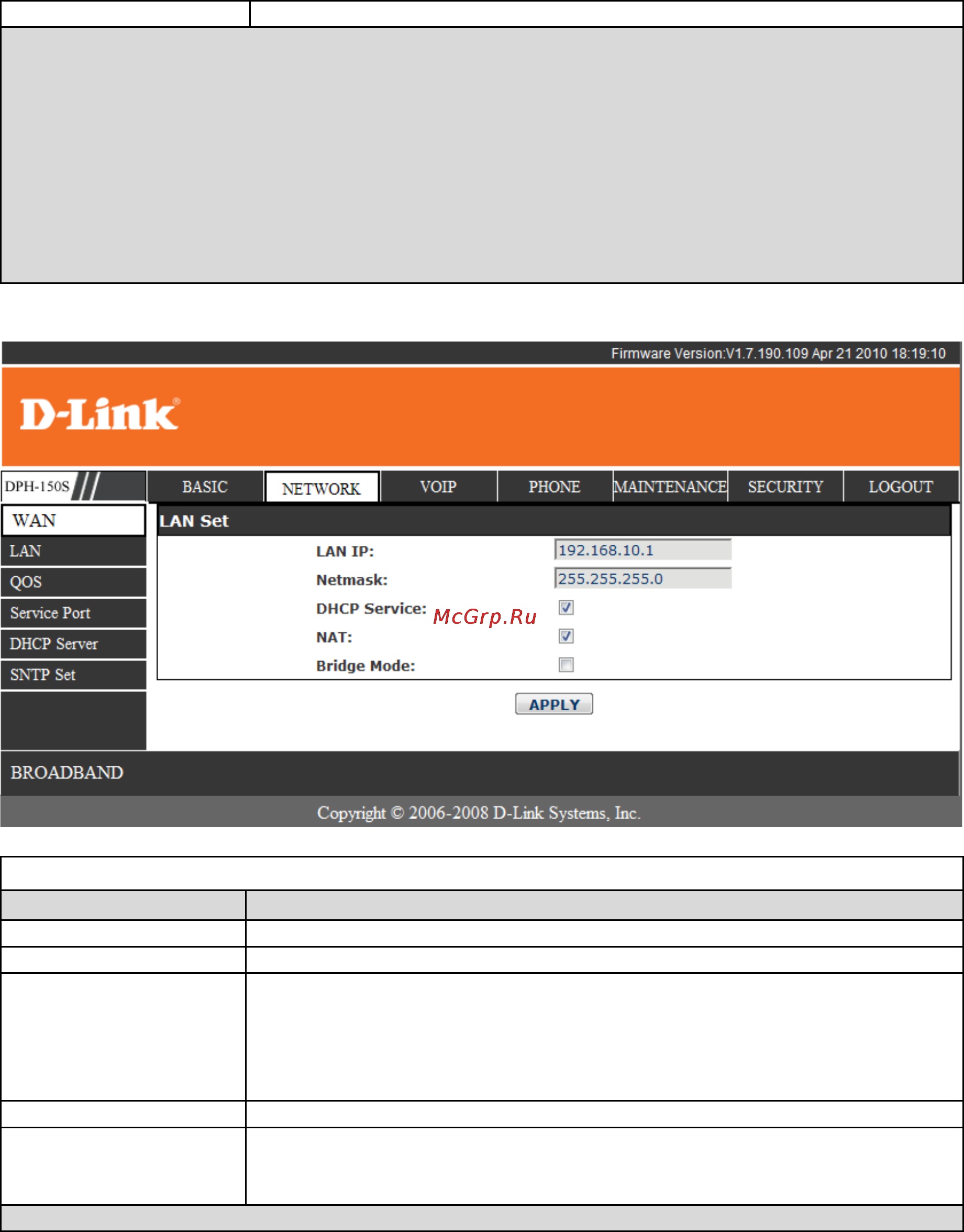

4.3.2.2. LAN Config
LAN Config
Field name explanation
LAN IP Specify LAN static IP.
Netmask Specify LAN Netmask.
DHCP Service
Select the DHCP server of LAN port or not. After user modify the LAN
IP address, phone will amend and adjust the DHCP Lease Table and
save the result amended automatically according to the IP address and
Netmask. You need restart the phone and the DHCP server setting will
take effect.
NAT Select NAT or not.
Bridge Mode
Select Bridge Mode or not: If you select Bridge Mode, the phone will
no longer set IP address for LAN physical port,LAN and WAN will join
in the same network.. Click “Apply”, the phone will reboot.
Notice: If you choose the bridge mode, the LAN configuration will be disabled.
4.3.2.3. Qos Config
The VOIP phone support 802.1Q/P protocol and DiffServ configuration. VLAN functionality can use
different VLAN IDs by setting signal/voice VLAN and data VLAN. The VLAN application of this
phone is very flexible.
