AWK-6222 User’s Manual Support Information

7-5

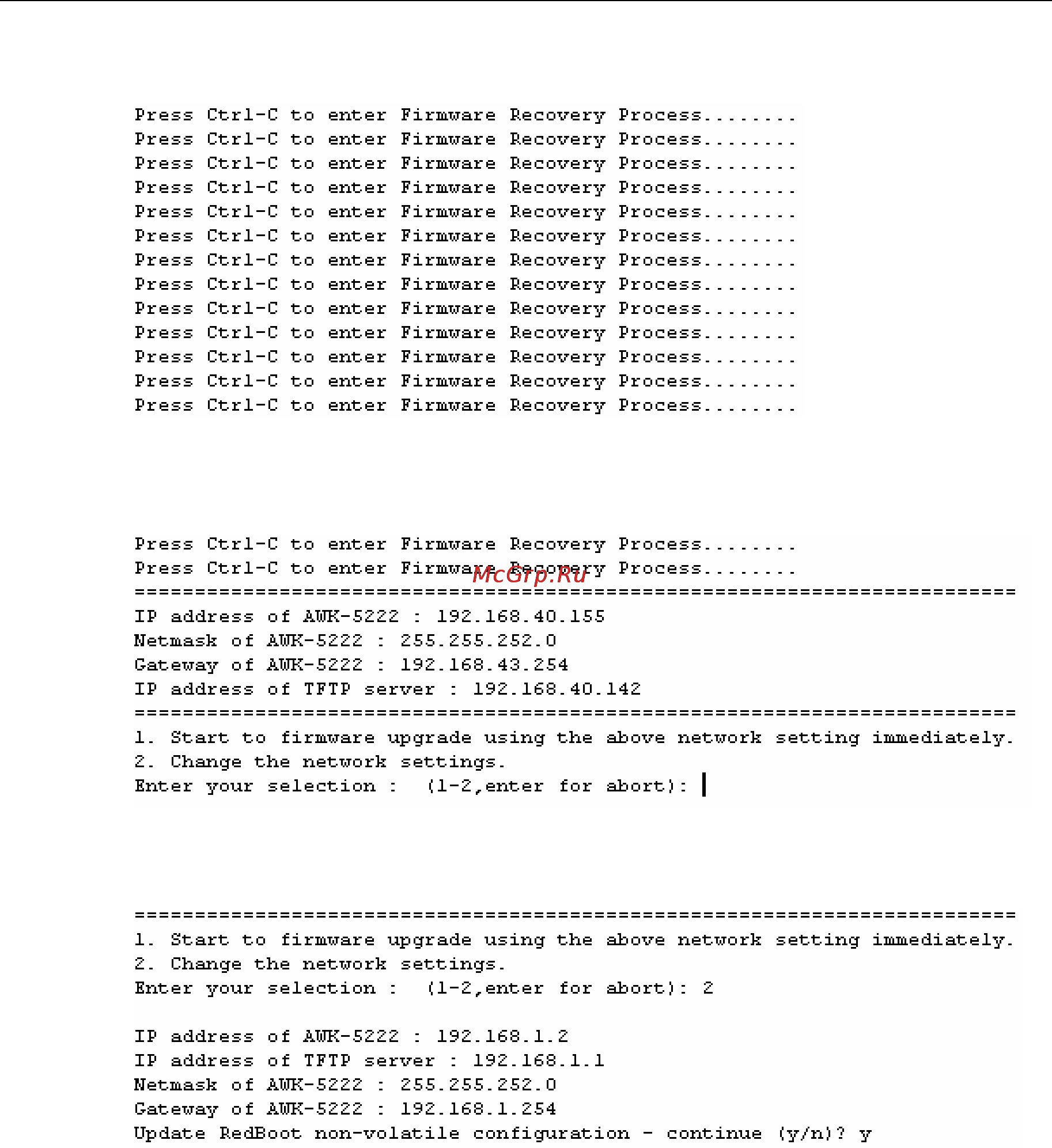

Connect to the AWK-6222’s RS-232 console with 115200bps and N-8-1. You will see the

following message shown on the terminal emulator every second.

Press Ctrl - C and the following message will appear.

Enter 2 to change the network setting. Specify the location of the AWK-6222’s firmware file on

the TFTP server and press y to write the settings into flash memory.
