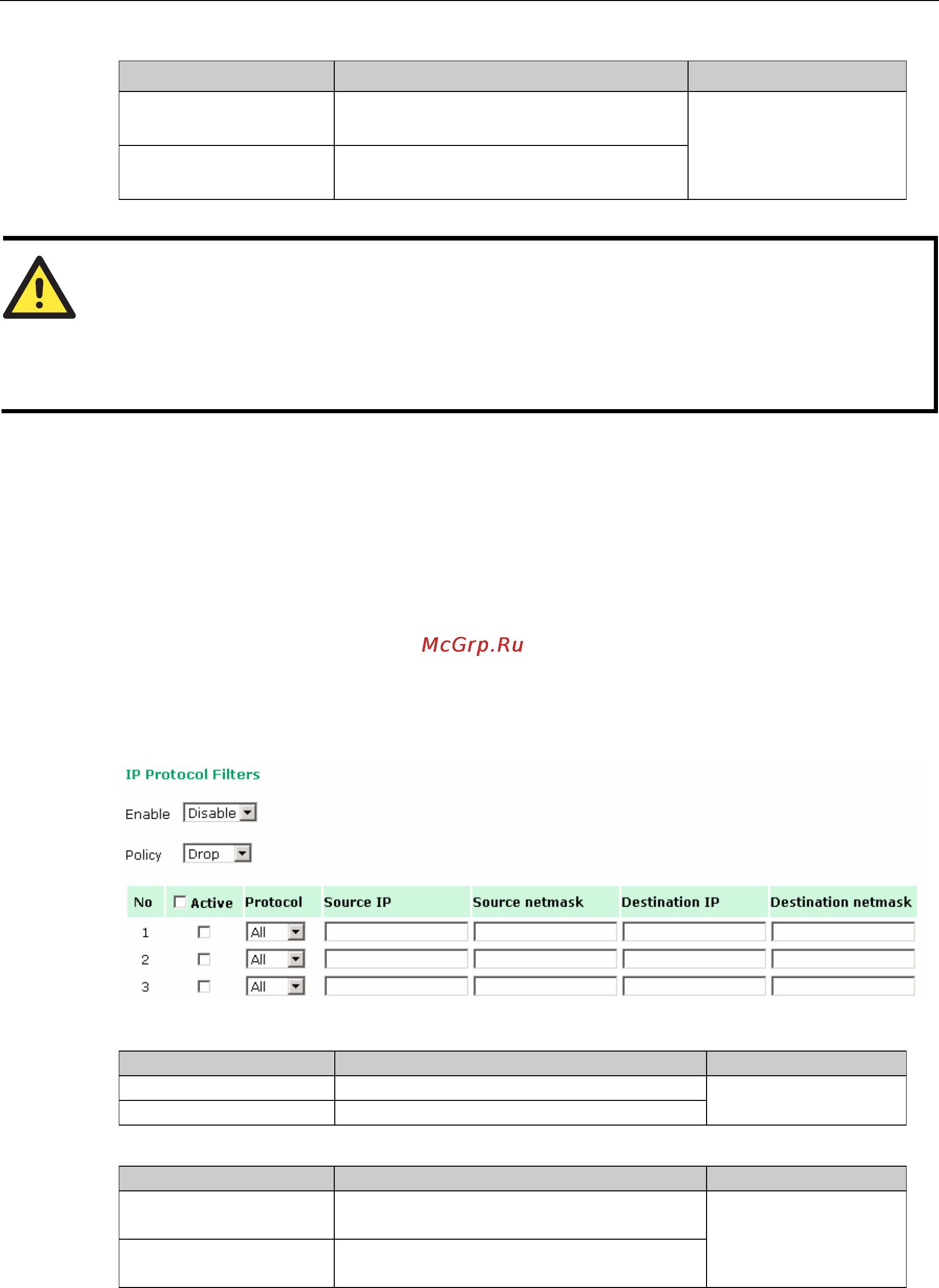

AWK-6222 User’s Manual Other Console Configurations
3-34
Policy
Setting Description Factory Default
Accept
Only the packets from the listed
addresses will be allowed.
Drop
Any packet from the listed addresses will
be denied.
Drop
ATTENTION
Be careful when you enable the filter function:
Drop + “no entity on list is activated” = all packets are allowed
Accept + “no entity on list is activated” = all packets are denied
IP Protocol Filter
The AWK-6222’s IP protocol filter is a policy-based filter that can allow or filter out IP-based
packets with specified IP protocol and source/destination IP addresses.
The AWK-6222 provides eight fields for setting IP protocol and source/destination IP addresses in
your filtering policy. Four IP protocols are available: All, ICMP, TCP, and UDP. You must
specify either the Source IP or the Destination IP. By combining IP addresses and netmasks, you
can specify a single IP address or a range of IP addresses to accept or drop. For example, “IP
address 192.168.1.1 and netmask 255.255.255.255” refers to the sole IP address 192.168.1.1. “IP
address 192.168.1.1 and netmask 255.255.255.0” refers to the range of IP addresses from
192.168.1.1 to 192.168.255. Remember to check the Active check box for each entity to activate
the setting.
Enable
Setting Description Factory Default
Enable Enables IP protocol filter
Disable Disables IP protocol filter
Disable
Policy
Setting Description Factory Default
Accept Only the packets from the listed addresses
will be allowed
Drop Any packet from the listed addresses will
b
e
denied
Drop
