AWK-6222 User’s Manual Other Console Configurations
3-53

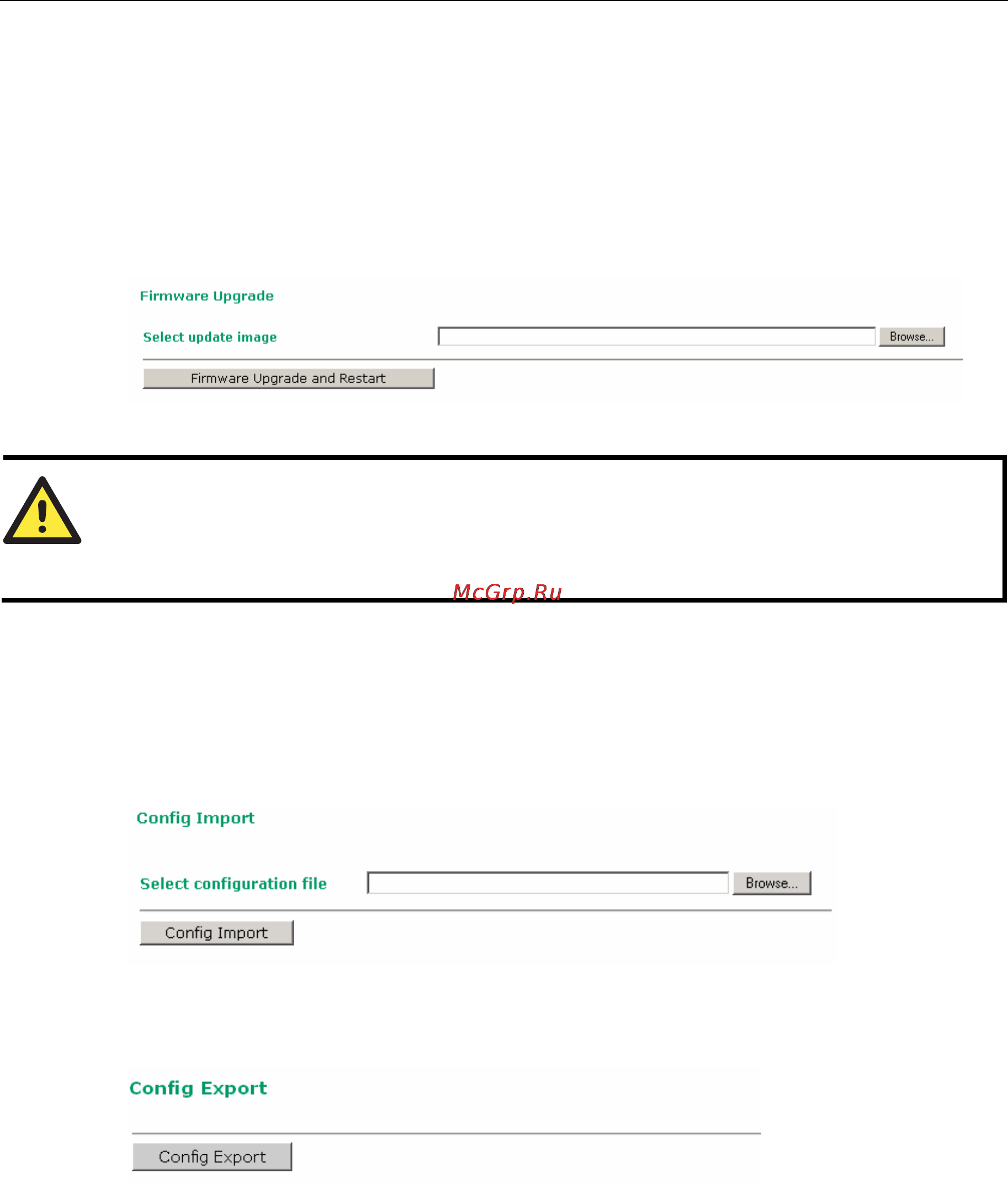

Firmware Upgrade
The AWK-6222 can be enhanced with more value-added functions by installing firmware
upgrades. The latest firmware is available at Moxa’s download center.
Before running a firmware upgrade, make sure the AWK-6222 is off-line. Click the Browse
button to specify the firmware image file and click Firmware Upgrade and Restart to start the
firmware upgrade. After the progress bar reaches 100%, the AWK-6222 will reboot itself.
When upgrading your firmware, the AWK-6222’s other functions are deactivated.
ATTENTION
Please make sure the power source is stable when you upgrade your firmware. An unexpected
power interruption may damage your AWK-6222.
Config Import Export
You can back up or restore the AWK-6222’s configuration with Config Import Export.
In the Config Import section, click Browse to specify the configuration file and click Config
Import button to begin importing the configuration.
In the Config Export section, click the Config Export button and save the configuration file onto
your local storage media. The configuration file is a text file and you can view and edit it with a
general text-editing tool.
