AWK-6222 User’s Manual Other Console Configurations
3-4
Overview

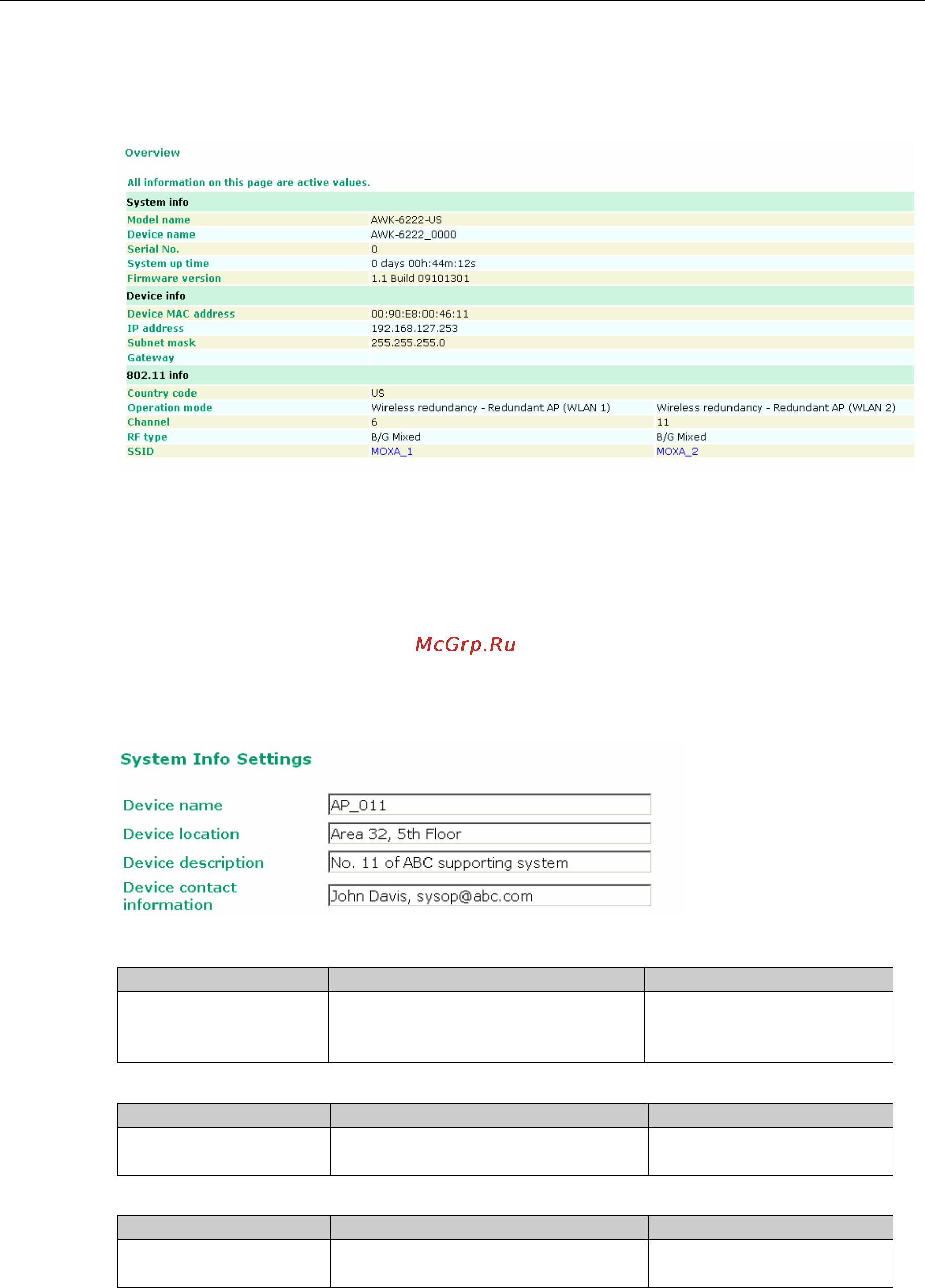

The Overview page summarizes the AWK-6222’s current status. The information is categorized
into several groups: System info, Device info and 802.11 info.
Basic Settings
The Basic Settings group includes the most commonly used settings required by administrators to
maintain and control the AWK-6222.
System Info Settings
The System Info items, especially Device name and Device description, are displayed and
included on the Overview page, SNMP information, and alarm emails. Setting System Info items
makes it easier to identify the different AWK-6222s connected to your network.
Device name
Setting Description Factory Default
Max. 31 Characters This option is useful for specifying
the role or application of different
AWK-6222 units.
AWK-6222_<Serial No. of
this AWK-6222>
Device location
Setting Description Factory Default
Max. 31 Characters To specify the location of different
AWK-6222 units.
None
Device description
Setting Description Factory Default
Max. 31 Characters Use this space to record more detailed
description of AWK-6222
None
