AWK-6222 User’s Manual Software Installation/Configuration

4-11

Connection

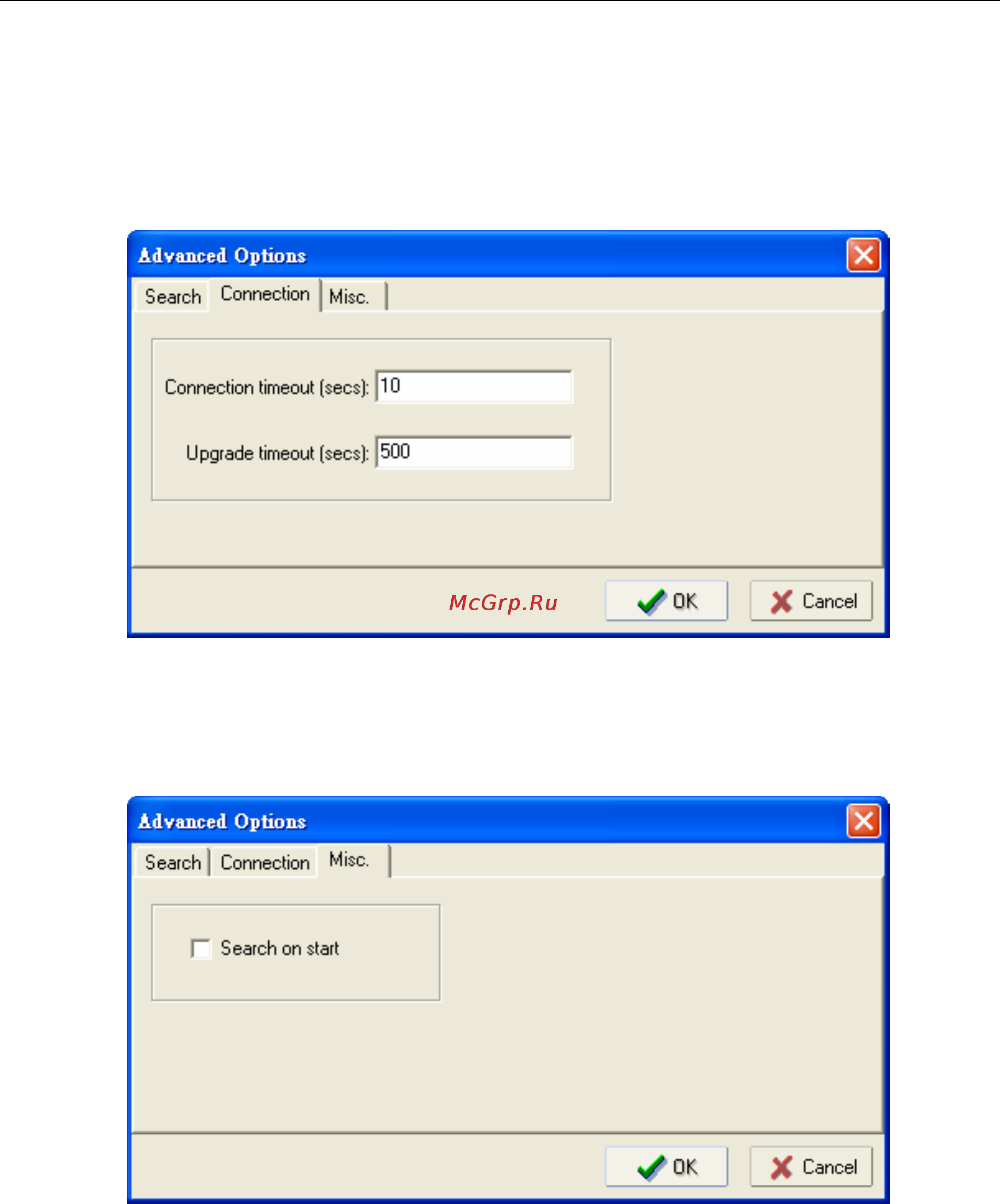

Connection timeout (secs): Use this option to set the waiting time for the Default Login, Locate,

Assign IP, Upload Firmware, and Unlock to complete.

Upgrade timeout (secs): Use this option to set the waiting time for the connection to disconnect

while the firmware is upgrading.

Use this option to set the waiting time for the Firmware to write

to flash.

Misc.

Search on start: Checkmark this box if you would like the search function to start searching for

devices after you log in to the AWK search Utility.
