Relay

The AWK-6222 has one relay output, which consists of two terminal block contacts on the

AWK-6222’s top panel. These relay contacts are used to indicate user-configured events and

system failure.

The two wires attached to the relay contacts form an open circuit when a user-configured event is

triggered. If a user-configured event does not occur, the relay circuit will remain closed. For safety

reasons, the relay circuit is kept open when the AWK-6222 is not powered.

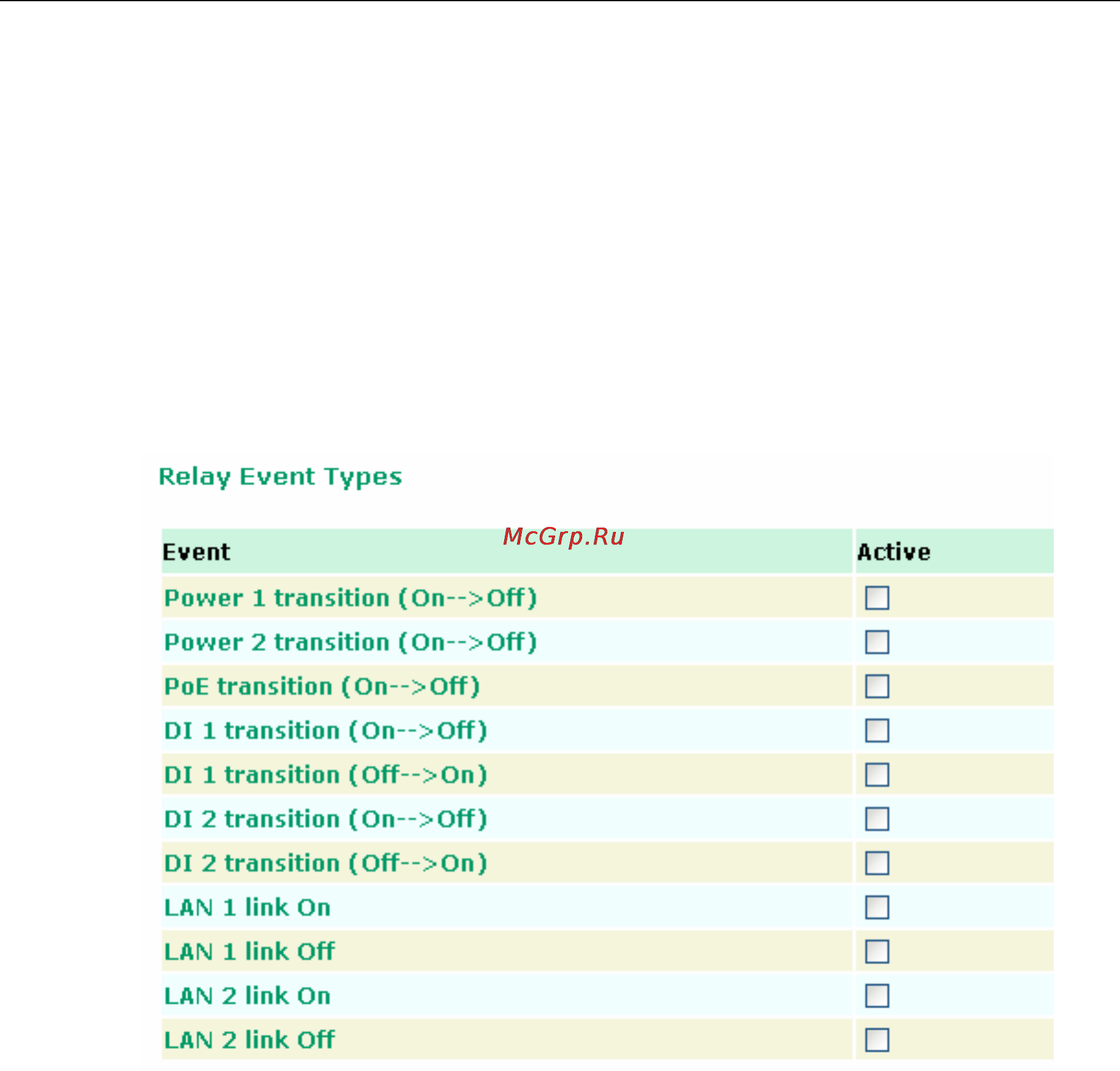

Relay Event Types

You can check the Active box to enable the event items. By default all values are deactivated

(unchecked). Details for each event item can be found in the “System log Event Types” table on

page 3-31.
