AWK-6222 User’s Manual Other Console Configurations

3-8

Wireless Settings

The essential settings for wireless networks are presented in this function group. Settings must be

properly set before establishing your wireless network.

Operation Mode

The AWK-6222 supports three operation modes that are used for different wireless network

applications:

Wireless Redundancy

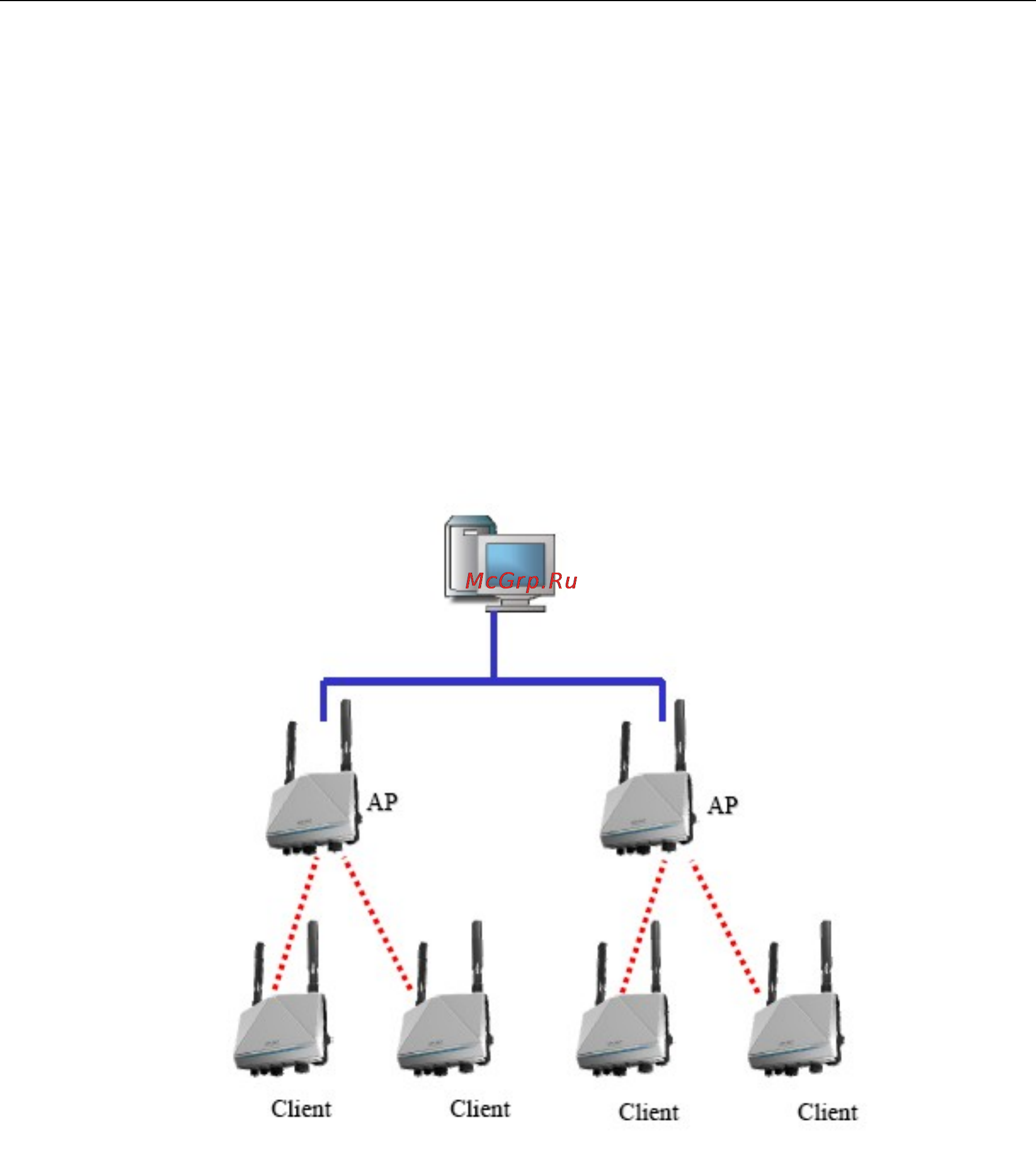

In traditional architectures, most vendors only provide a single RF AP and Client, in which the AP

connects one or more Clients to the network. Since the AP and Client are connected by a single RF

connection, if the RF connection is disconnected the system or network behind the Client will be

disconnected, too.
