AWK-6222 User’s Manual Introduction
1-7
Reset Button
The RESET button is located on the bottom panel of the AWK-6222. You can reboot the
AWK-6222 or reset it to factory default settings by pressing the RESET button with a pointed
object such as an unfolded paper clip.
y System reboot: Hold the RESET button down for less than 5 seconds and then release.
y Reset to factory default: Hold the RESET button down for over 5 seconds until the STATE
LED starts blinking green. Release the button to reset the AWK-6222.
Note: Each time the system is turned on the reset button can be disabled for 60 seconds.

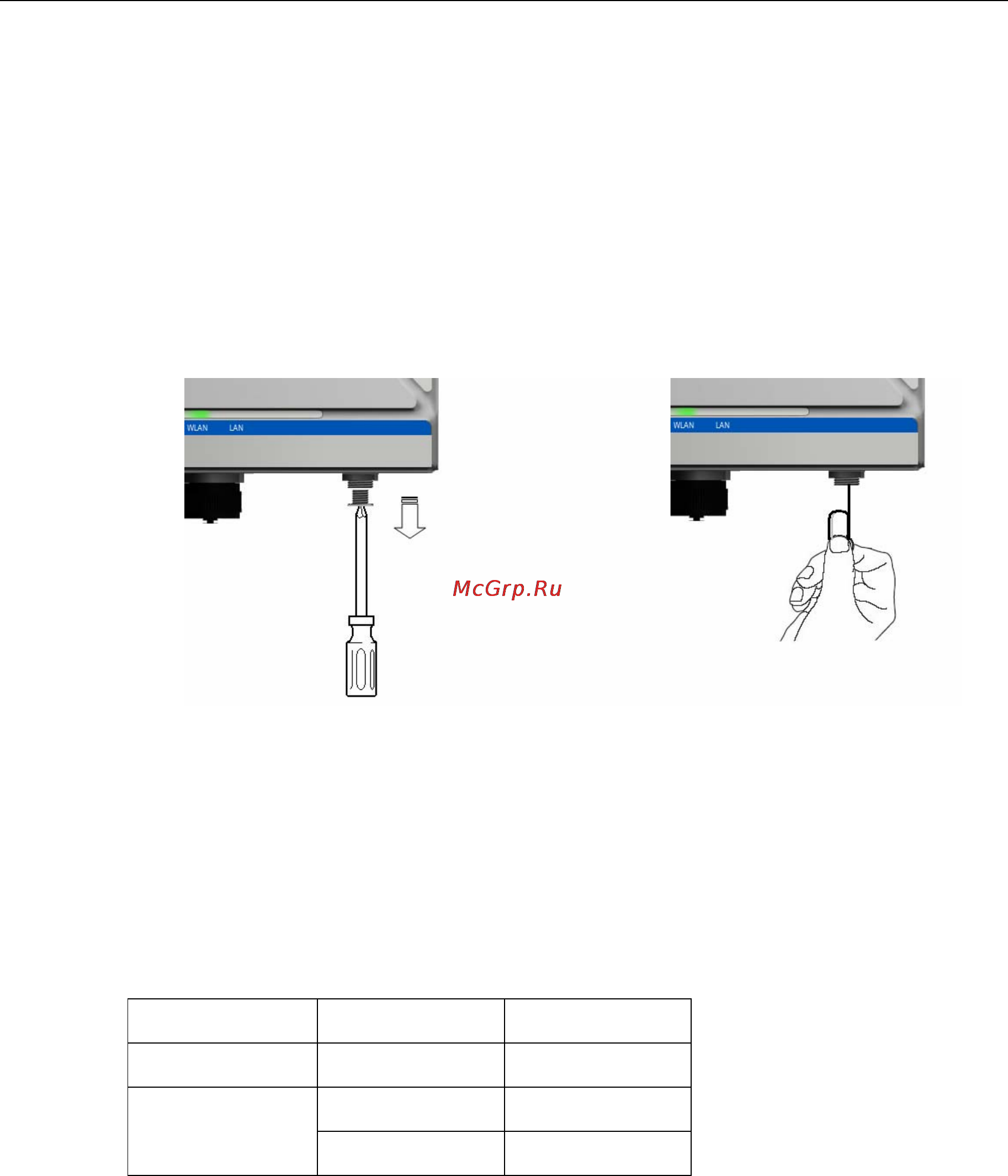

STEP 1: Remove the reset button cover. STEP 2: Using a pointed object, press and
hold the reset button.
Relay (Digital Output)
The AWK-6222 has one relay output, which consists of the 2 contacts for the 8-pin M12 connector
on the bottom panel, as shown below. These relay contacts forward system failure and
user-configured events.
The two wires attached to the relay contacts form an open circuit when a user-configured event is
triggered. If a user-configured event does not occur, the relay circuit will remain closed. For safety
reasons, the relay circuit is kept open when the AWK-6222 is not powered.
The AWK-6222’s relay status is shown below:
Power Status Event Relay
Off --- Open
Yes Open
On
No Short
