AWK-6222 User’s Manual Other Console Configurations

3-36

ATTENTION

Be careful when you enable the filter function:

Drop + “no entity on list is activated” = all packets are allowed

Accept + “no entity on list is activated” = all packets are denied

RSTP Settings (for Master or Slave mode only)

The AWK-6222 supports IEEE802.1D Spanning Tree Protocol and IEEE802.1w Rapid STP

standards. In addition to eliminating unexpected path looping, STP/RSTP can provide a backup

recovery path if a wired/ wireless path fails accidentally. The reliability and availability of the

network can increase because this fail-over function.

The AWK-6222’s STP/RSTP feature is disabled by default. To be completely effective, you must

enable RSTP/STP on every AWK-6222 connected to your network.

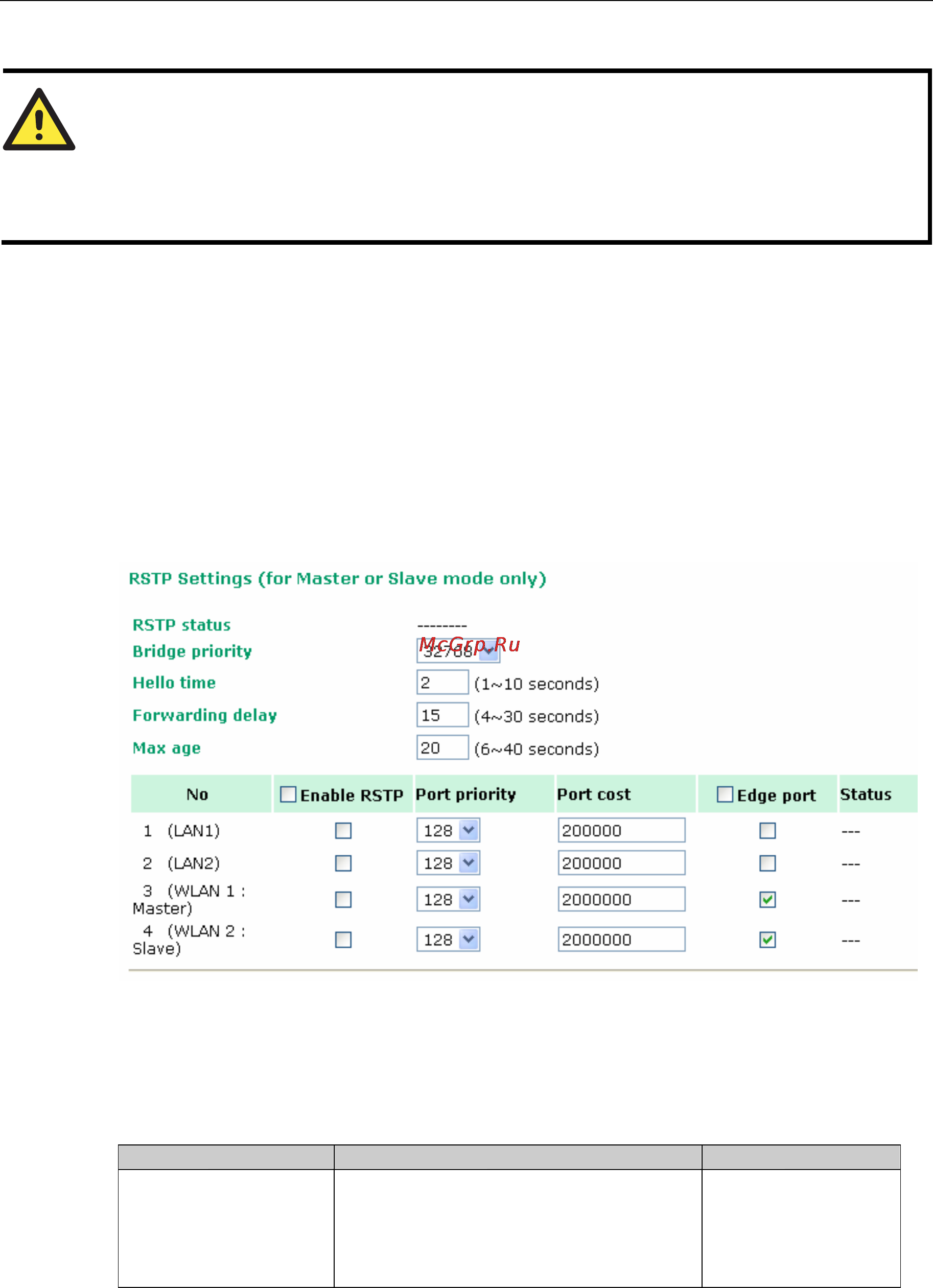

The following figures indicate which Spanning Tree Protocol parameters can be configured. A

more detailed explanation of each parameter is given below the figure.

RSTP status

This field will appear only when STP/RSTP is enabled. It indicates whether this AWK-6222 is the

Root of the Spanning Tree (the root is determined automatically) or not.

Bridge priority

Setting Description Factory Default

User-selected numerical

value

You can increase the bridge priority by

selecting a lower number. Units with

higher bridge priority are more likely to be

chosen as the root of the Spanning Tree

topology.

32768
