AWK-6222 User’s Manual Other Console Configurations

3-50

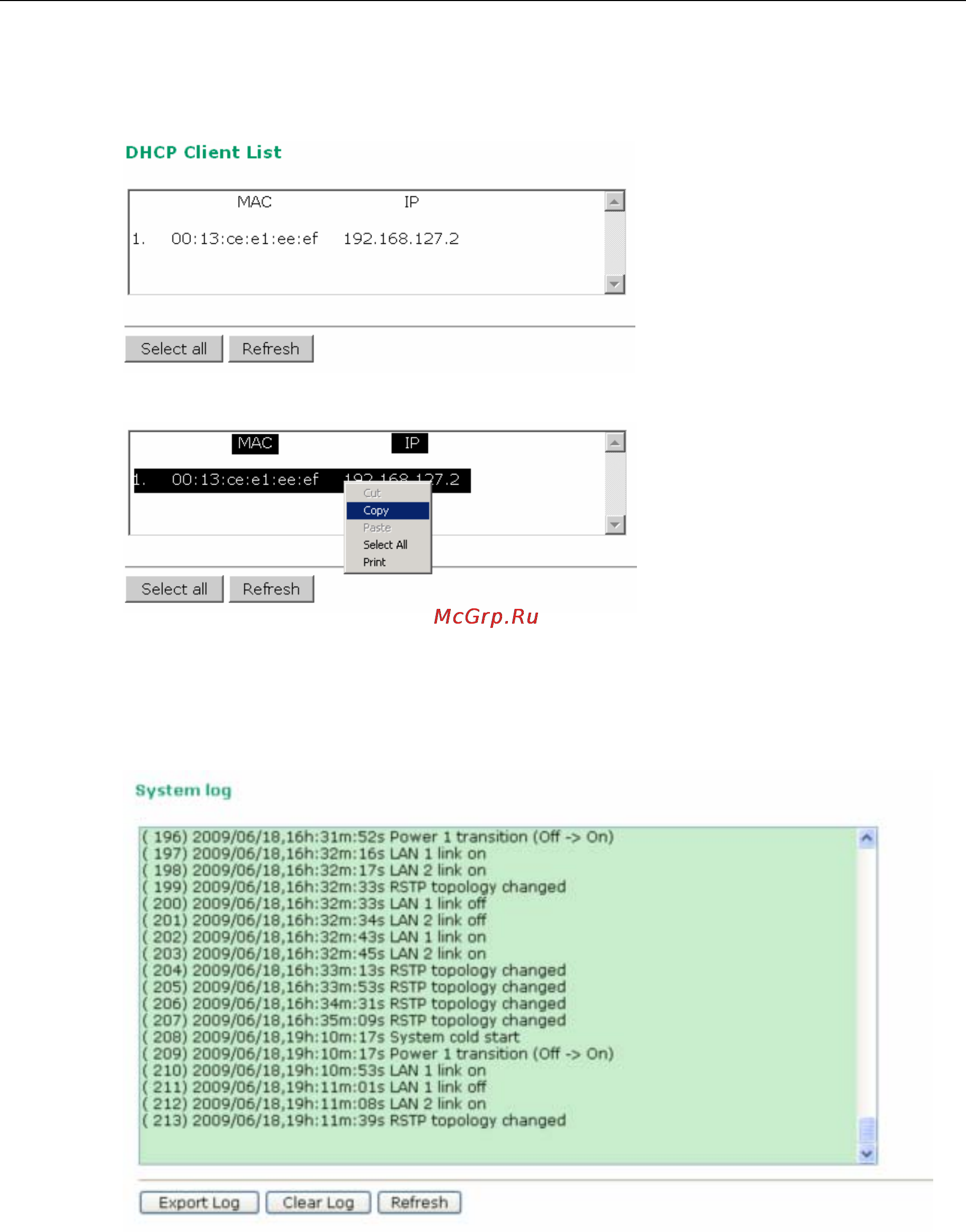

DHCP Client List (for AP mode only)

When you enable the DHCP server, the DHCP Client List shows all the clients that require and

have successfully received IP assignments. You can click the Refresh button to refresh the list.

You can press Select all button to select all content in the list for further editing.

System Log

Triggered events are recorded in System Log. You can export the log contents to an available

viewer by clicking Export Log. You can use the Clear Log button to clear the log contents and

the Refresh button to refresh the log.
