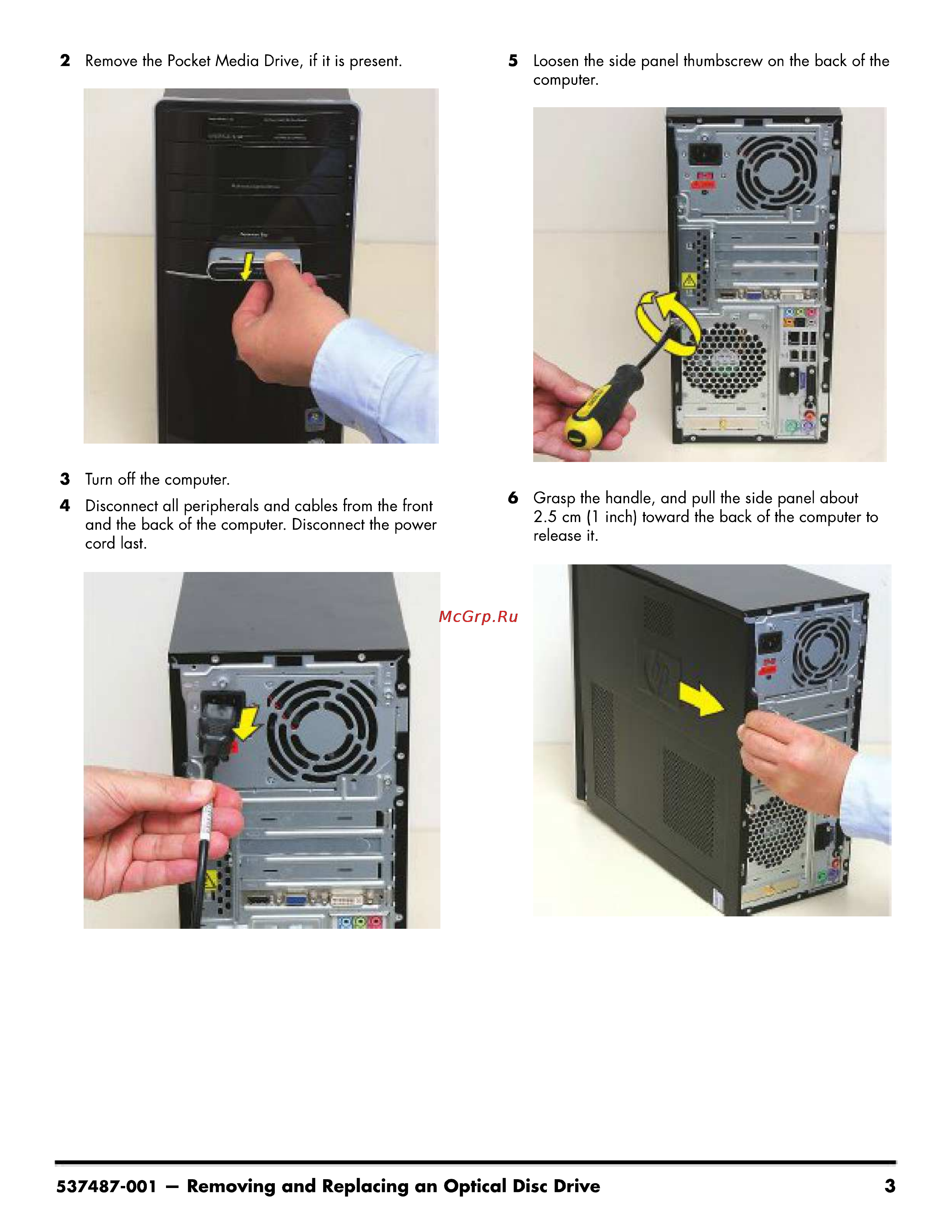

2 Remove the Pocket Media Drive if it is present 5 Loosen the side panel thumbscrew on the back of the computer 3 Tu rn off the computer 4 Disconnect all peripherals and cables from the front 6 Grasp the handle and pull the side panel about and the back of the computer Disconnect the power cord last 537487 001 Removing and Replacing an Optical Disc Drive 2 5 cm 1 inch toward the back of the computer to release it 3
