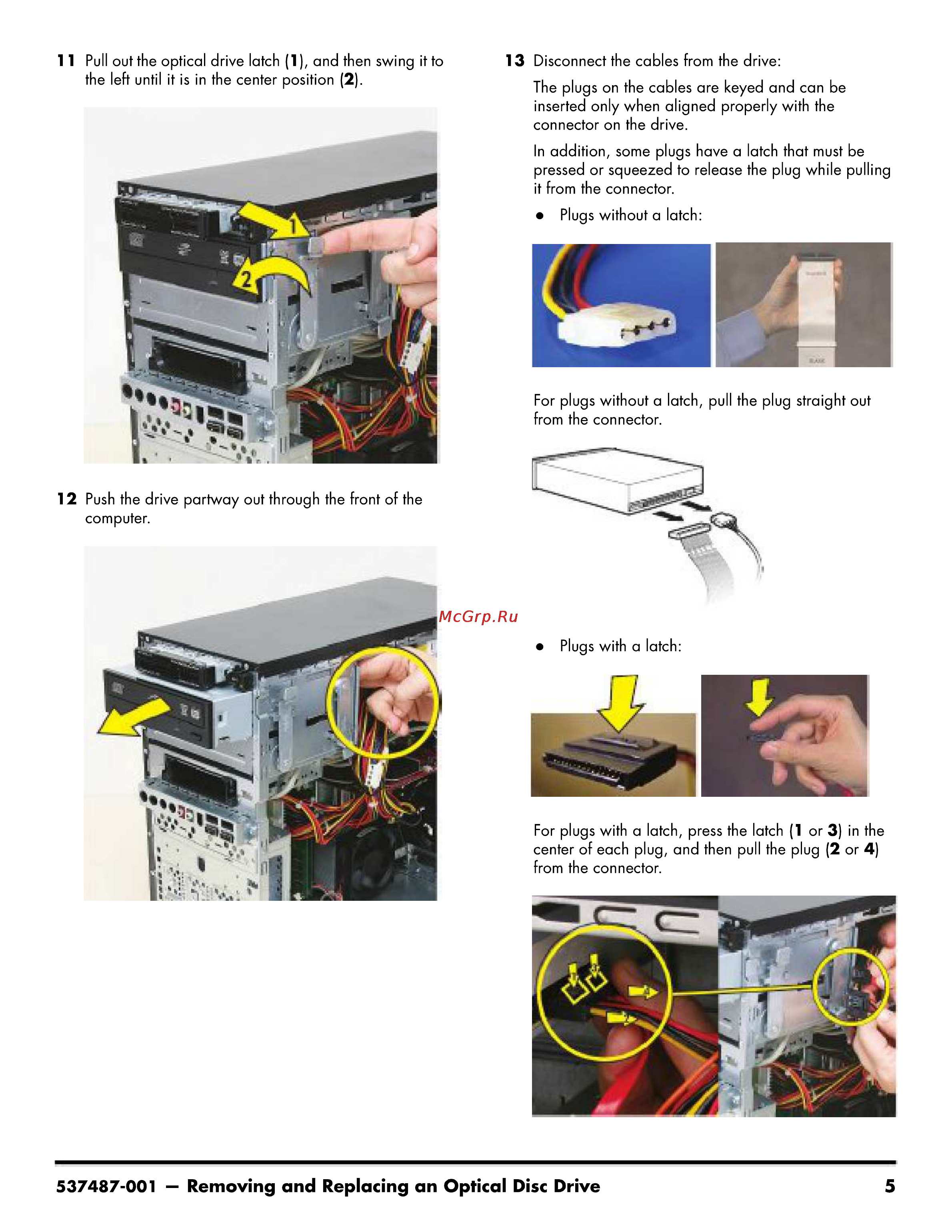

1 1 Pull out the optical drive latch 1 and then swing it to the left until it is in the center position 2 13 Disconnect the cables from the drive The plugs on the cables are keyed and can be inserted only when aligned properly with the connector on the drive In addition some plugs have a latch that must be pressed or squeezed to release the plug while pulling it from the connector Plugs without a latch For plugs without a latch pull the plug straight out from the connector 12 Push the drive partway out through the front of the computer Plugs with a latch For plugs with a latch press the latch 1 or 3 in the center of each plug and then pull the plug 2 or 4 from the connector 537487 001 Removing and Replacing an Optical Disc Drive 5
