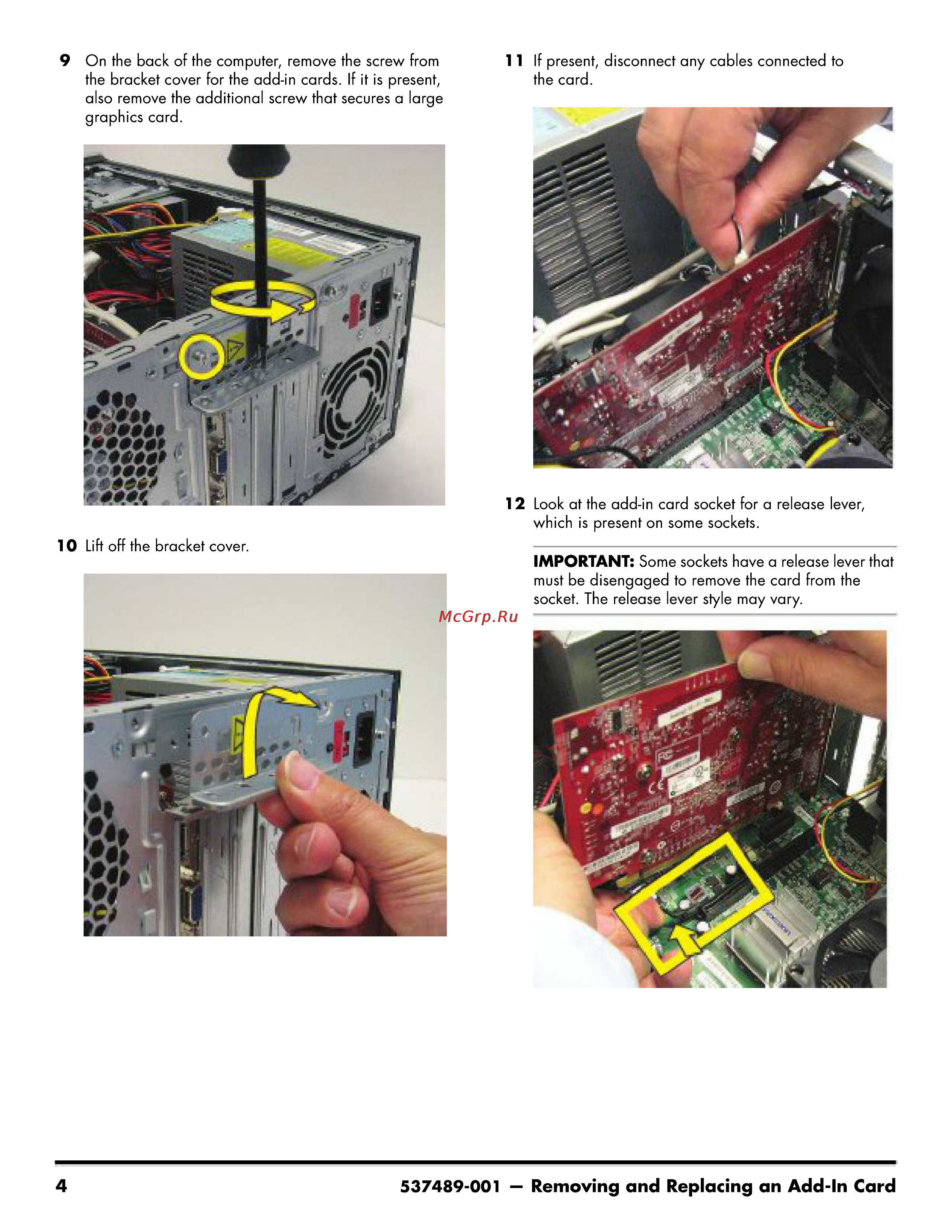

9 On the back of the computer remove the screw from the bracket cover for the add in cards If it is present also remove the additional screw that secures a large graphics card 1 1 If present disconnect any cables connected to the card 12 Look at the add in card socket for a release lever which is present on some sockets 10 Lift off the bracket cover IMPORTANT Some sockets have a release lever that must be disengaged to remove the card from the socket The release lever style may vary 4 537489 001 Removing and Replacing an Add In Card
