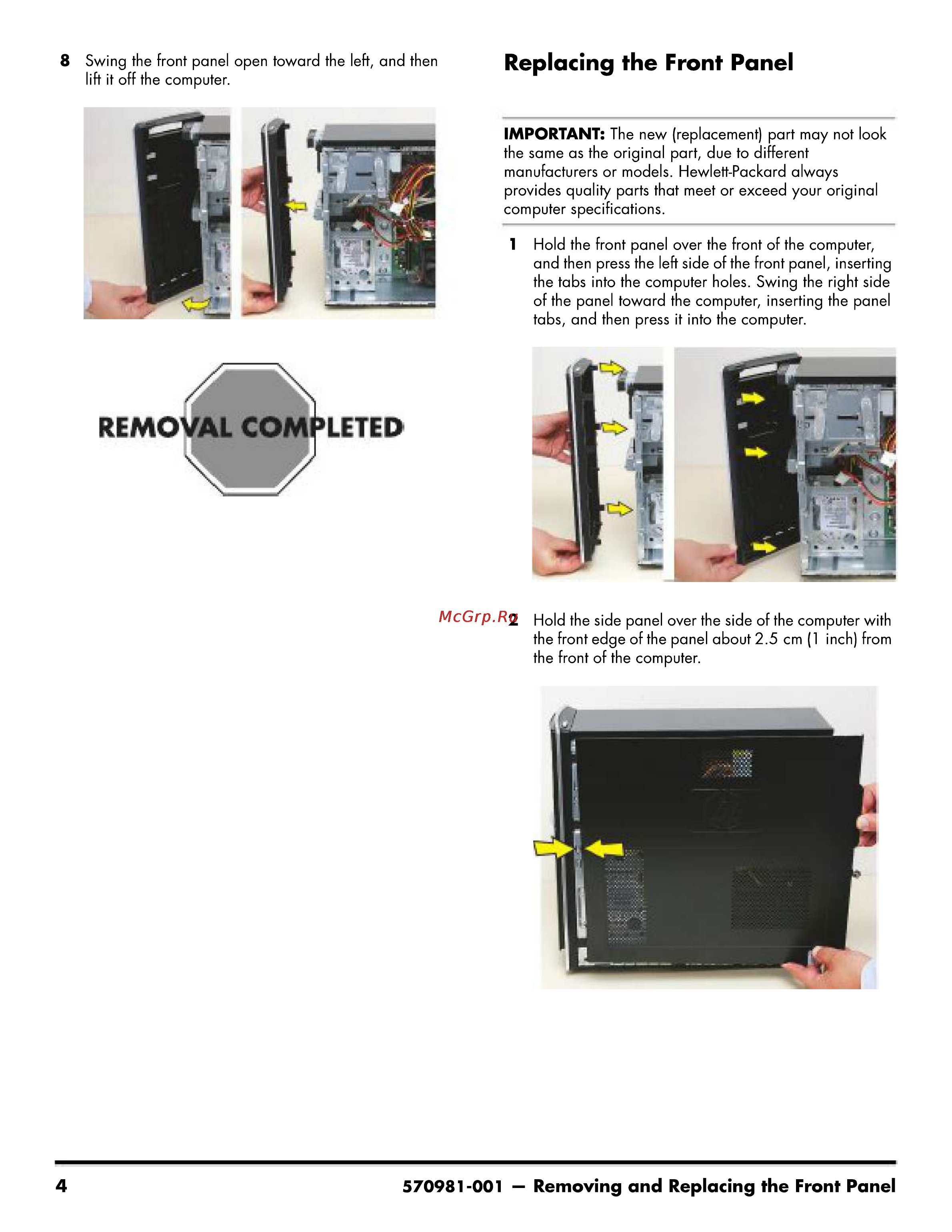

8 Swing the front panel open toward the left and then lift it off the computer Replacing the Front Panel IMPORTANT The new replacement part may not look the same as the original part due to different manufacturers or models Hewlett Packard always provides quality parts that meet or exceed your original computer specifications 1 Hold the front panel over the front of the computer and then press the left side of the front panel inserting the tabs into the computer holes Swing the right side of the panel toward the computer inserting the panel tabs and then press it into the computer REMOVAAL COM LETED 2 Hold the side panel over the side of the computer with the front edge of the panel about 2 5 cm 1 inch from the front of the computer 4 570981 001 Removing and Replacing the Front Panel
