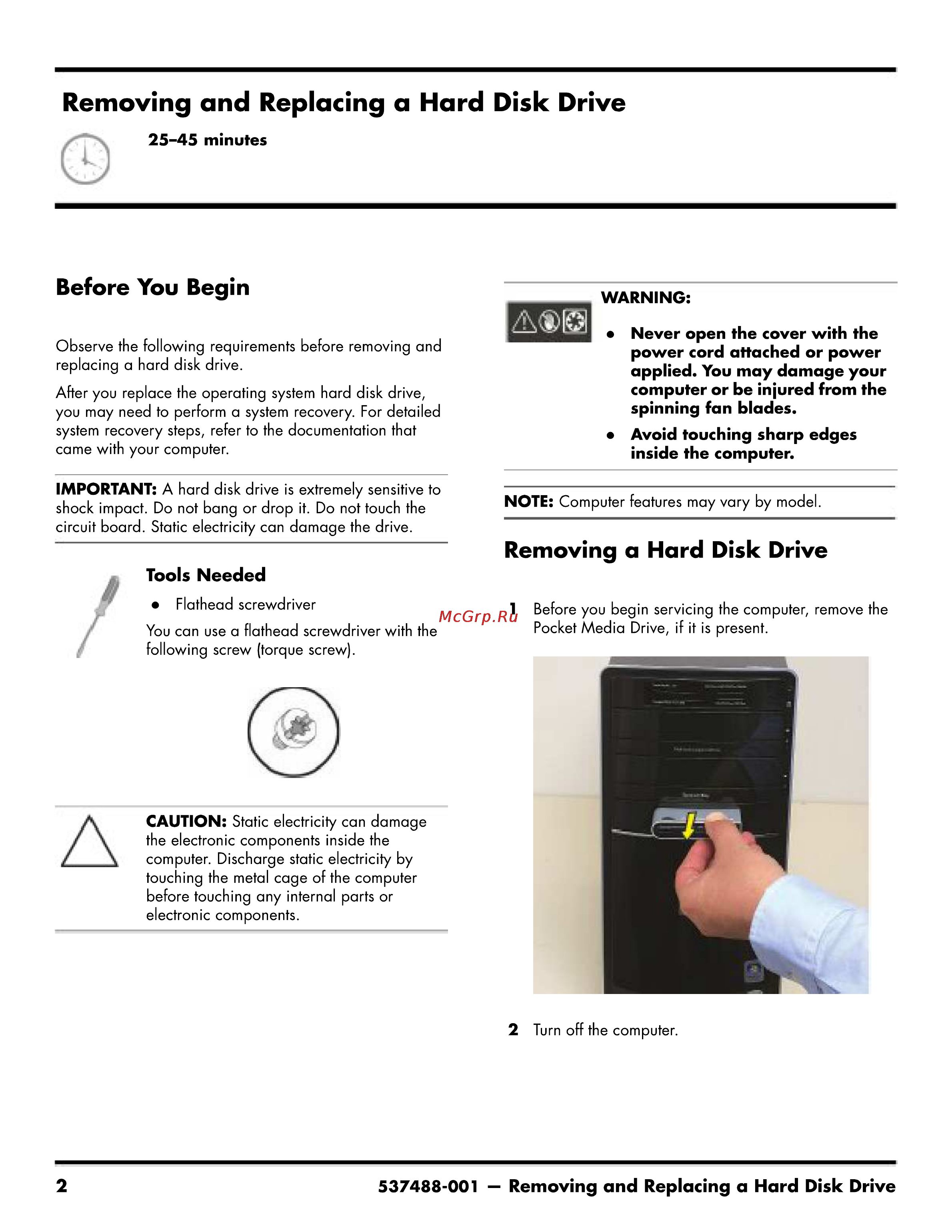

Removing and Replacing a Hard Disk Drive 25 45 minutes Before You Begin WARNING AO Observe the following requirements before removing and replacing a hard disk drive After you replace the operating system hard disk drive you may need to perform a system recovery For detailed system recovery steps refer to the documentation that came with your computer IMPORTANT A hard disk drive is extremely sensitive to shock impact Do not bang or drop it Do not touch the circuit board Static electricity can damage the drive Never open the cover with the power cord attached or power applied You may damage your computer or be injured from the spinning fan blades Avoid touching sharp edges inside the computer NOTE Computer features may vary by model Removing a Hard Disk Drive Tools Needed Flathead screwdriver You can use a flathead screwdriver with the following screw torque screw 1 Before you begin servicing the computer remove the Pocket Media Drive if it is present CAUTION Static electricity can damage the electronic components inside the computer Discharge static electricity by touching the metal cage of the computer before touching any internal parts or electronic components 2 Tu rn off the computer 2 537488 001 Removing and Replacing a Hard Disk Drive
