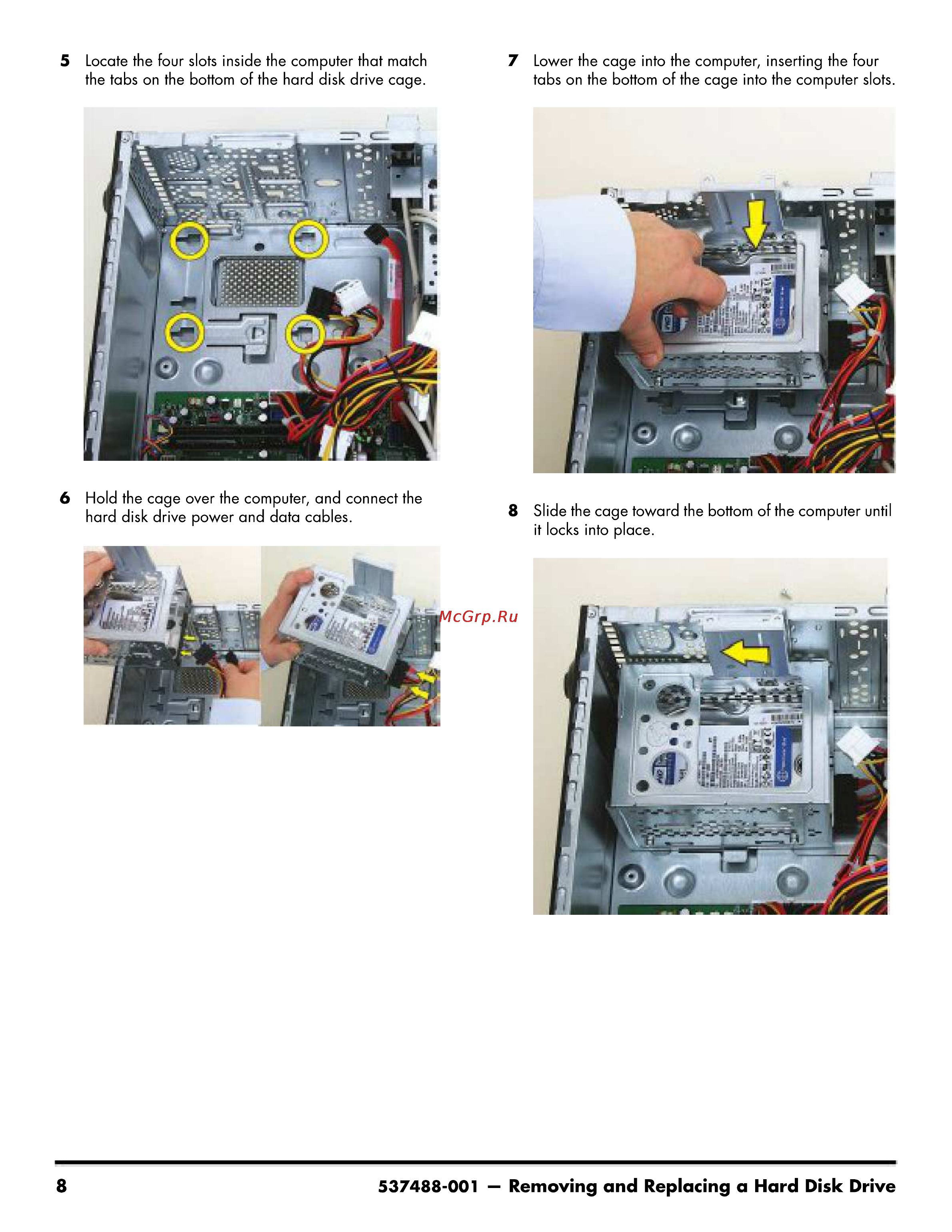

5 Locate the four slots inside the computer that match the tabs on the bottom of the hard disk drive cage 6 Hold the cage over the computer and connect the hard disk drive power and data cables 8 7 Lower the cage into the computer inserting the four tabs on the bottom of the cage into the computer slots 8 Slide the cage toward the bottom of the computer until it locks into place 537488 001 Removing and Replacing a Hard Disk Drive
