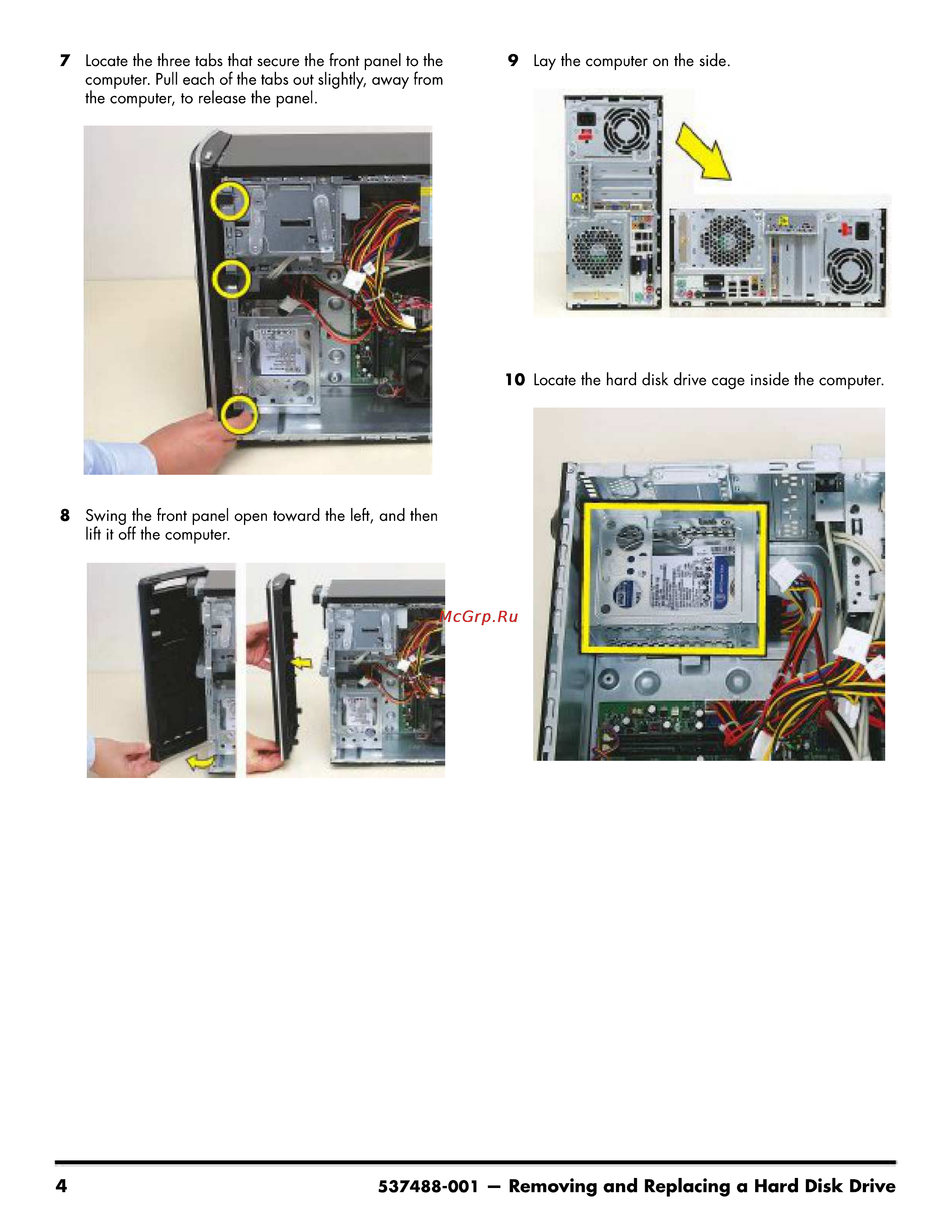

7 Locate the three tabs that secure the front panel to the 9 Lay the computer on the side computer Pull each of the tabs out slightly away from the computer to release the panel 10 Locate the hard disk drive cage inside the computer 8 Swing the front panel open toward the left and then lift it off the computer 4 537488 001 Removing and Replacing a Hard Disk Drive
