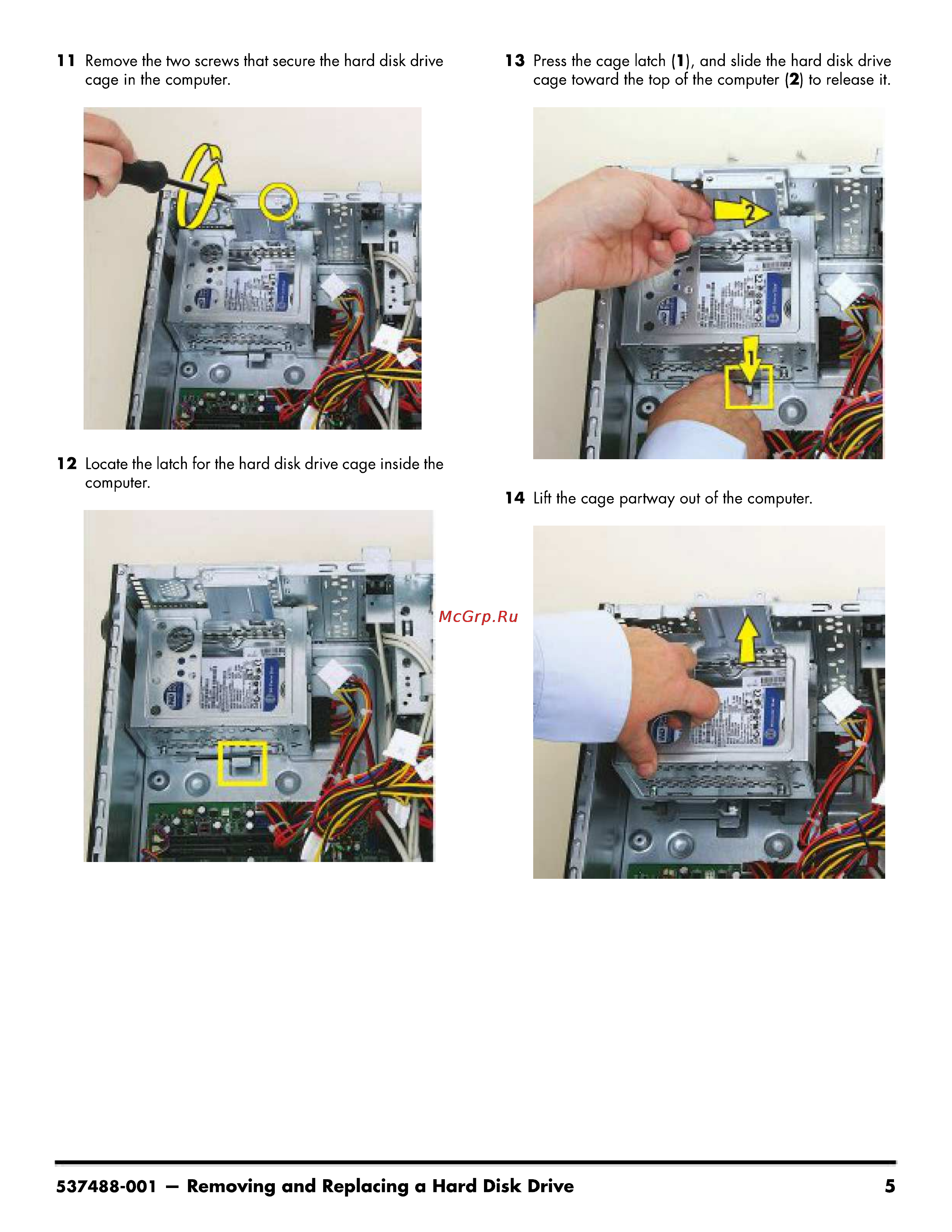

1 1 Remove the two screws that secure the hard disk drive cage in the computer 13 Press the cage latch 1 and slide the hard disk drive cage toward the top of the computer 2 to release it 12 Locate the latch for the hard disk drive cage inside the computer 14 Lift the cage partway out of the computer 537488 001 Removing and Replacing a Hard Disk Drive 5
