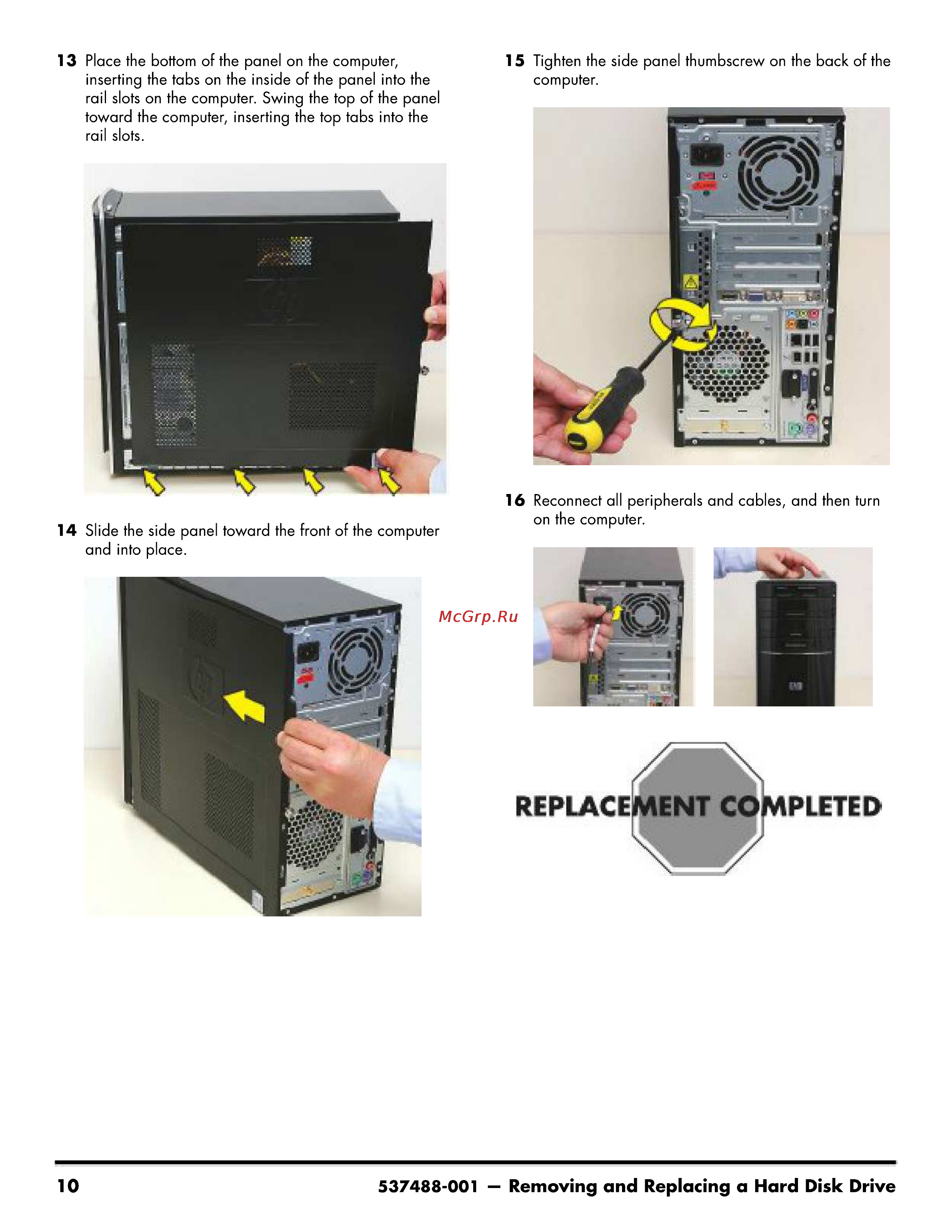

13 Place the bottom of the panel on the computer inserting the tabs on the inside of the panel into the rail slots on the computer Swing the top of the panel toward the computer inserting the top tabs into the rail slots 1 5 Tighten the side panel thumbscrew on the back of the computer 16 Reconnect all peripherals and cables and then turn 14 Slide the side panel toward the front of the computer on the computer and into place REPLACE 10 PLETED 537488 001 Removing and Replacing a Hard Disk Drive
