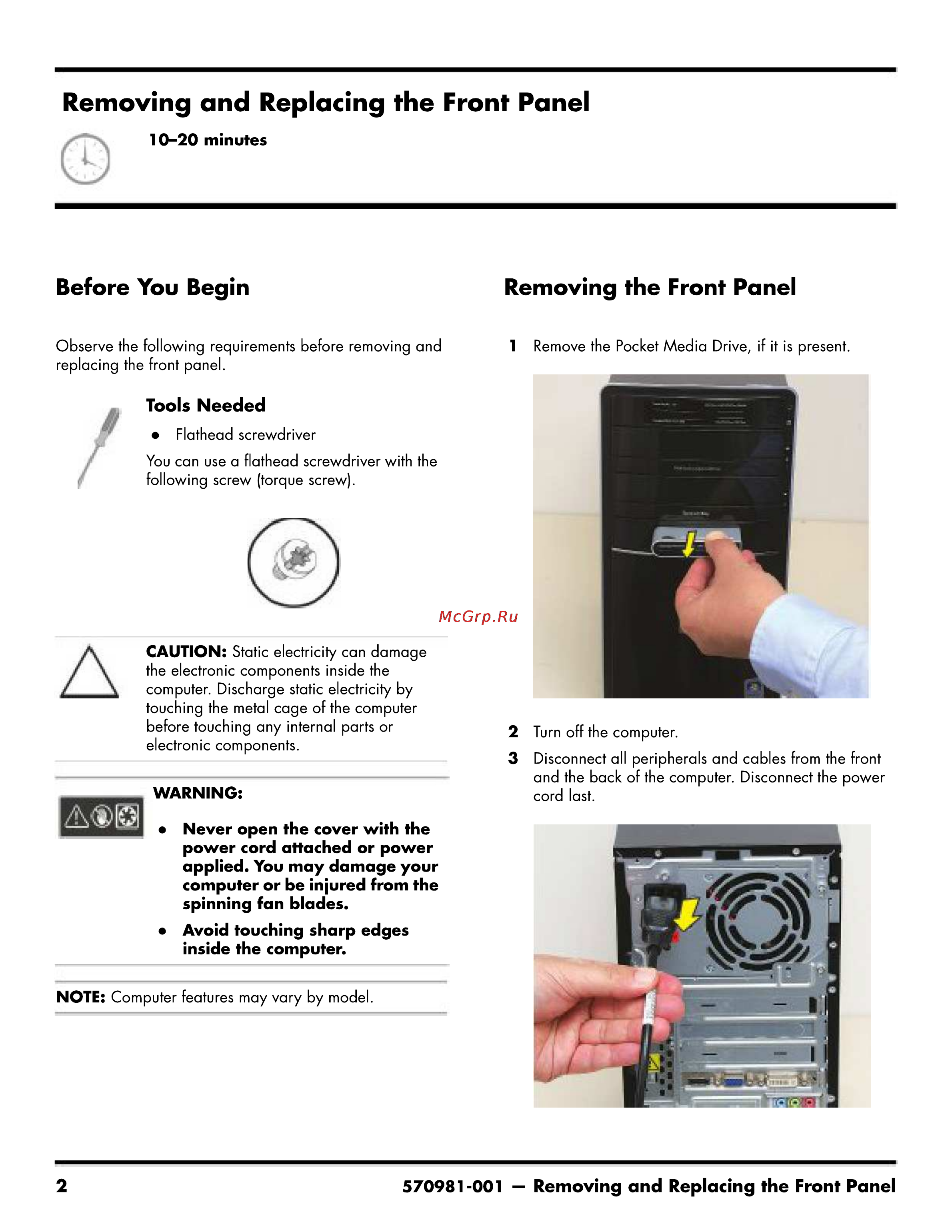

Removing and Replacing the Front Panel i 11 10 20 minutes Before You Begin Observe the following requirements before removing and replacing the front panel Removing the Front Panel 1 Remove the Pocket Media Drive if it is present Tools Needed Flathead screwdriver You can use a flathead screwdriver with the following screw torque screw CAUTION Static electricity can damage the electronic components inside the computer Discharge static electricity by touching the metal cage of the computer before touching any internal parts or electronic components WARNING A 2 Tu rn off the computer 3 Disconnect all peripherals and cables from the front and the back of the computer Disconnect the power cord last Never open the cover with the power cord attached or power applied You may damage your computer or be injured from the spinning fan blades Avoid touching sharp edges inside the computer NOTE Computer features may vary by model 2 570981 001 Removing and Replacing the Front Panel
