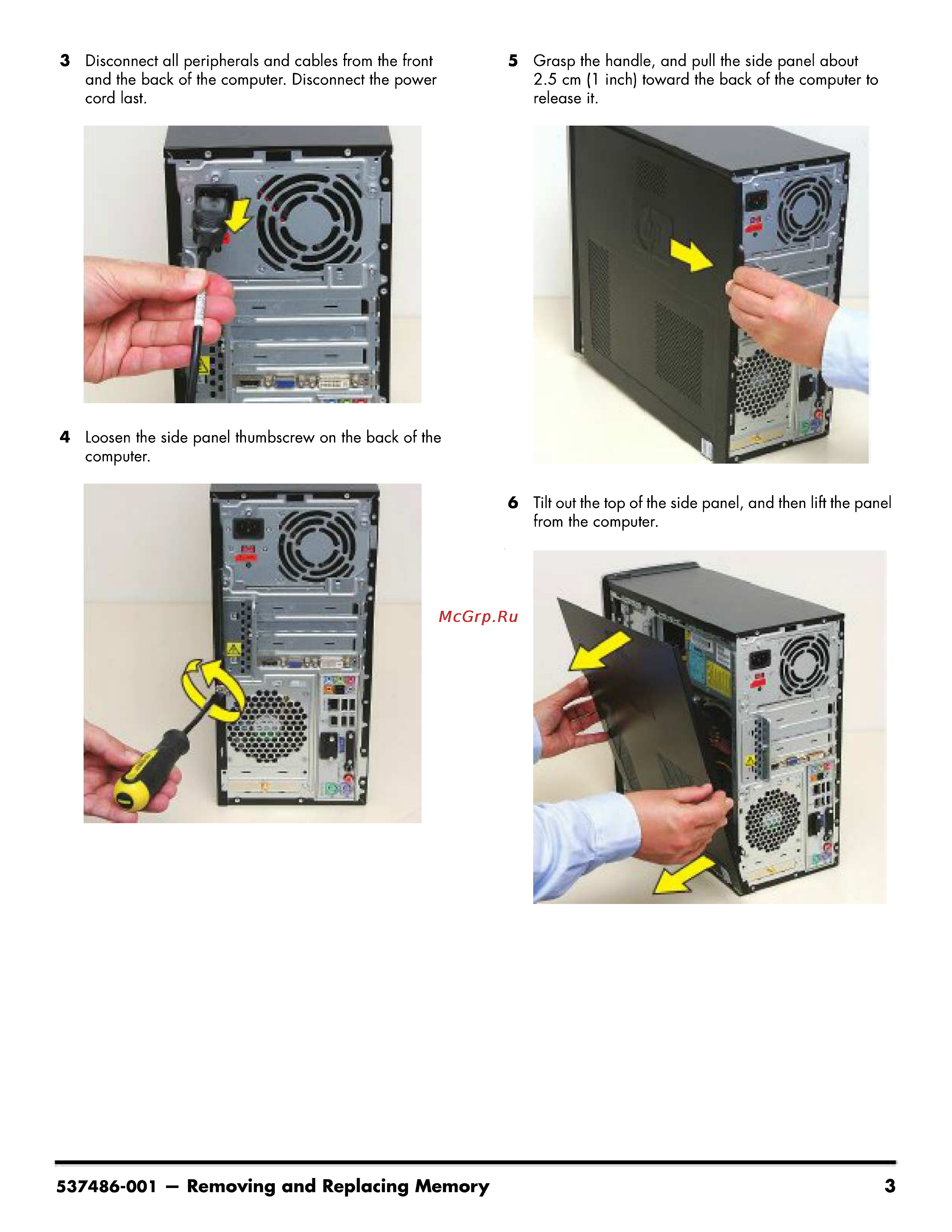

3 Disconnect all peripherals and cables from the front and the back of the computer Disconnect the power cord last 5 Grasp the handle and pull the side panel about 2 5 cm 1 inch toward the back of the computer to release it 4 Loosen the side panel thumbscrew on the back of the computer 6 Tilt out the top of the side panel and then lift the panel from the computer 537486 001 Removing and Replacing Memory 3
