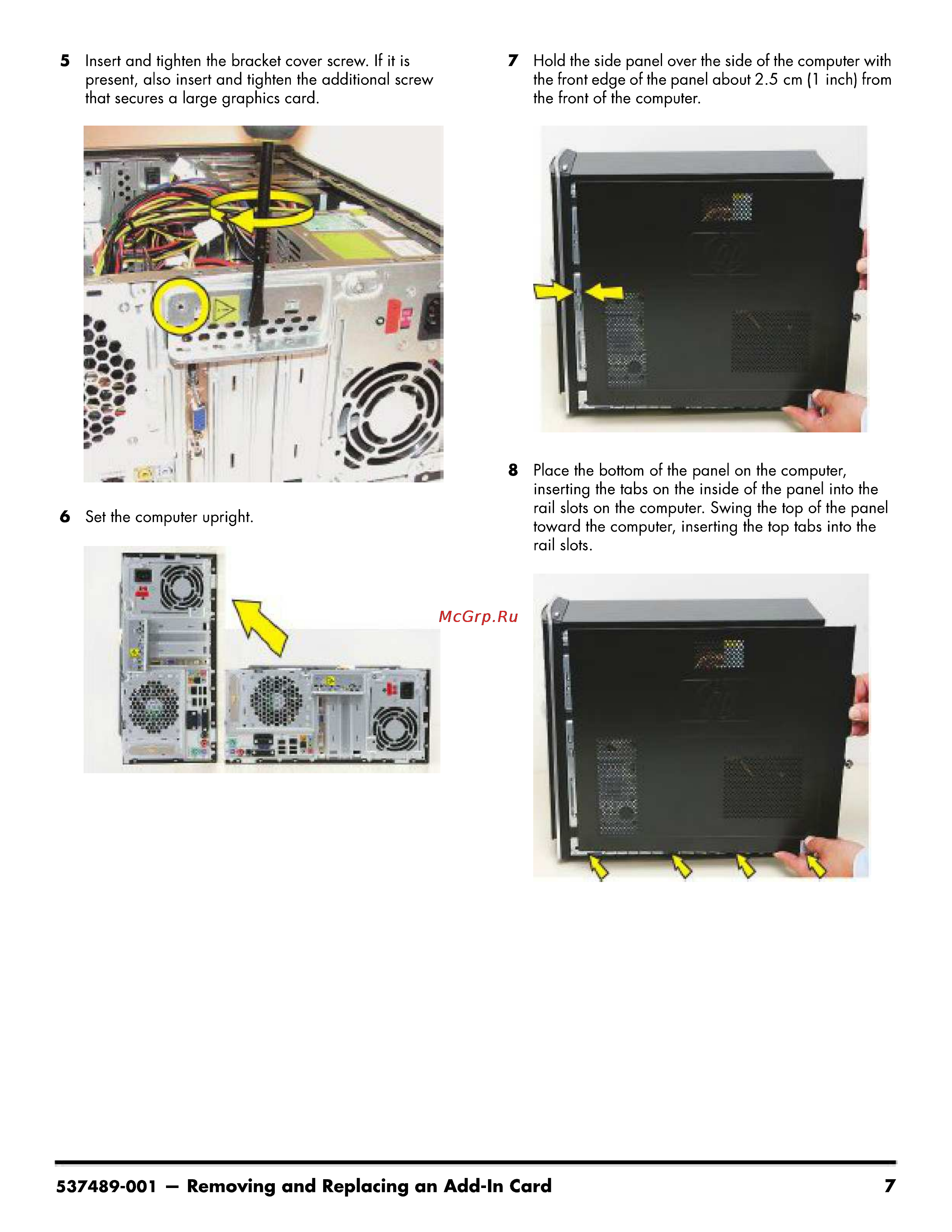

5 Insert and tighten the bracket cover screw If it is present also insert and tighten the additional screw that secures a large graphics card 7 Hold the side panel over the side of the computer with the front edge of the panel about 2 5 cm 1 inch from the front of the computer 8 Place the bottom of the panel on the computer 6 Set the computer upright 537489 001 Removing and Replacing an Add In Card inserting the tabs on the inside of the panel into the rail slots on the computer Swing the top of the panel toward the computer inserting the top tabs into the rail slots 7
