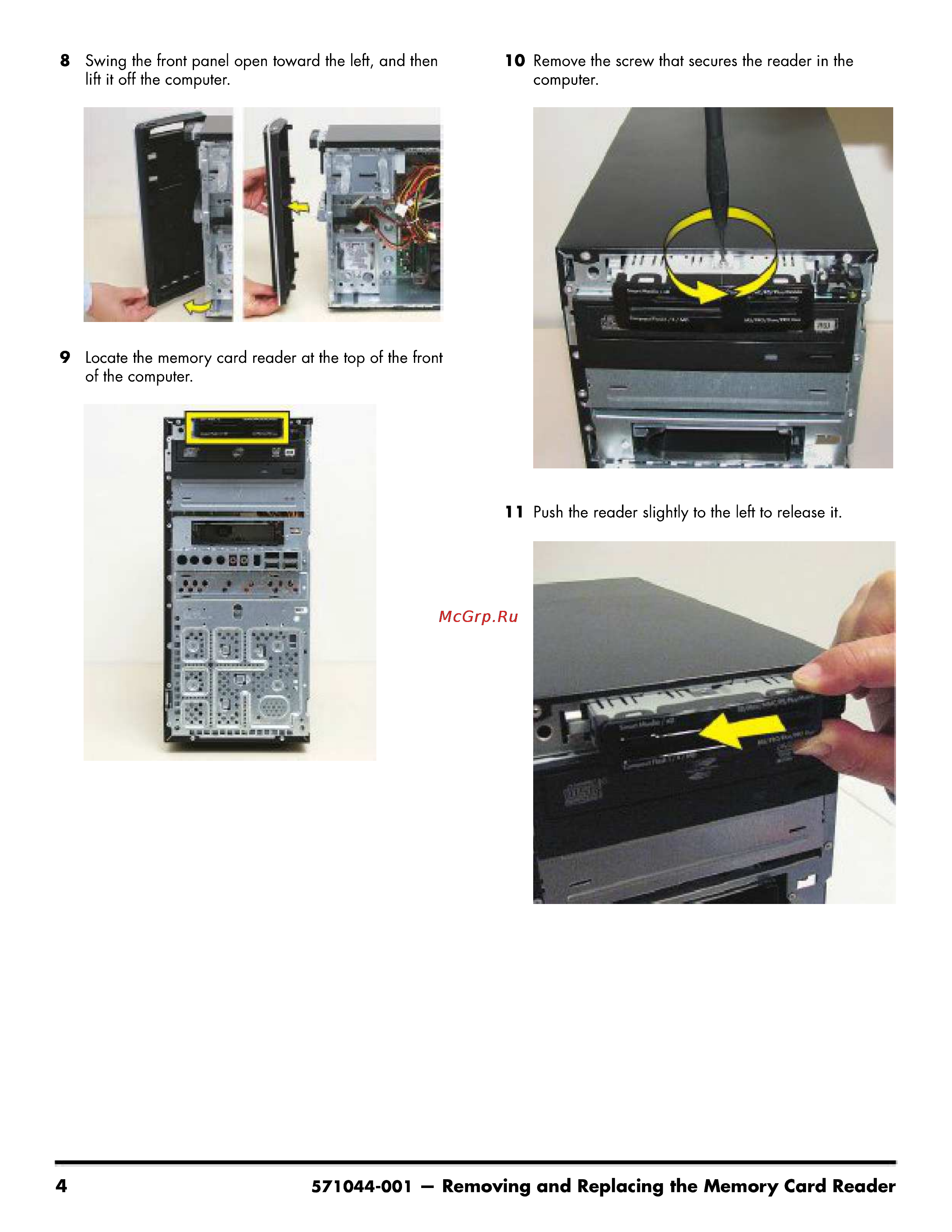

8 Swing the front panel open toward the left and then lift it off the computer 10 Remove the screw that secures the reader in the computer 9 Locate the memory card reader at the top of the front of the computer 11 Push the reader slightly to the left to release it 4 571044 001 Removing and Replacing the Memory Card Reader
