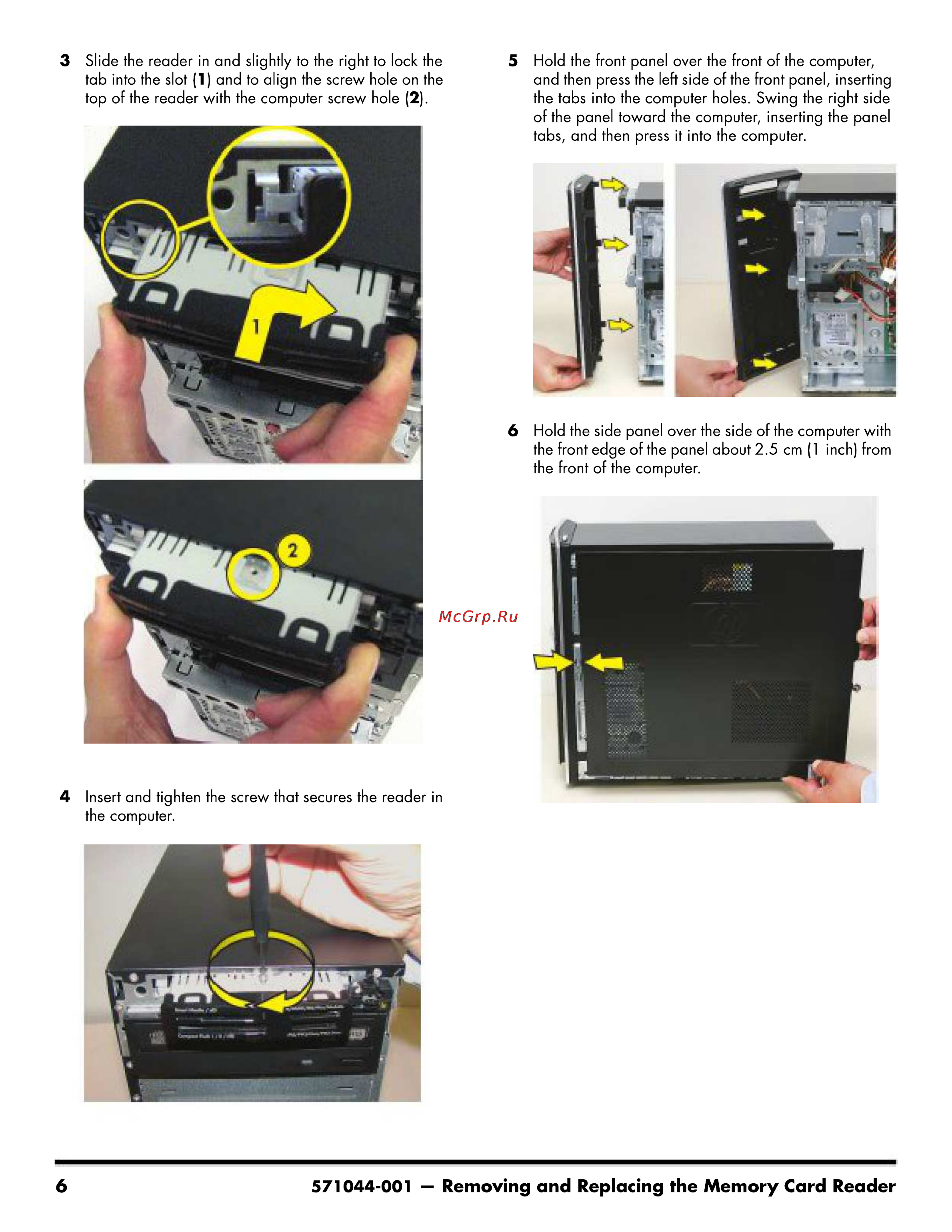

3 Slide the reader in and slightly to the right to lock the tab into the slot 1 and to align the screw hole on the top of the reader with the computer screw hole 2 5 Hold the front panel over the front of the computer and then press the left side of the front panel inserting the tabs into the computer holes Swing the right side of the panel toward the computer inserting the panel tabs and then press it into the computer 6 Hold the side panel over the side of the computer with the front edge of the panel about 2 5 cm 1 inch from the front of the computer 4 Insert and tighten the screw that secures the reader in the computer 6 571044 001 Removing and Replacing the Memory Card Reader
