HP Pavilion p6700ru LF969EA [25/50] 001 removing and replacing a hard disk drive

Содержание

• Upgrading and servicing guide 1
• Before you begin removing the front panel 4
• Removing and replacing the front panel 4
• 001 removing and replacing the front panel 5
• 570981 001 removing and replacing the front panel 6
• Important 6
• Removaal com leted 6
• Replacing the front panel 6
• 001 removing and replacing the front panel 7
• Replace pleted 7
• Before you begin removing an optical disc drive 10
• Removing and replacing an optical disc drive 10
• 001 removing and replacing an optical disc drive 11
• 001 removing and replacing an optical disc drive 12
• 001 removing and replacing an optical disc drive 13
• 001 removing and replacing an optical disc drive 14
• Important 14
• Replacing an optical disc drive 14
• 001 removing and replacing an optical disc drive 15
• 001 removing and replacing an optical disc drive 16
• Replace pleted 16
• Before you begin 18
• Removing a hard disk drive 18
• Removing and replacing a hard disk drive 18
• 001 removing and replacing a hard disk drive 19
• 537488 001 removing and replacing a hard disk drive 20
• 001 removing and replacing a hard disk drive 21
• 001 removing and replacing a hard disk drive 22
• 001 removing and replacing a hard disk drive 7 23
• Important 23
• Replacing a hard disk drive 23
• 001 removing and replacing a hard disk drive 24
• 001 removing and replacing a hard disk drive 25
• 001 removing and replacing a hard disk drive 26
• Replace pleted 26
• Before you begin removing an add in card 28
• Removing and replacing an add in card 28
• 001 removing and replacing an add in card 29
• 001 removing and replacing an add in card 30
• Important 30
• 001 removing and replacing an add in card 31
• Important 31
• Remo leted 31
• Replacing an add in card 31
• 001 removing and replacing an add in card 32
• 001 removing and replacing an add in card 33
• 001 removing and replacing an add in card 34
• Replacement completed 34
• Before you begin removing the memory card reader 36
• Removing and replacing the memory card reader 36
• 001 removing and replacing the memory card reader 37
• 571044 001 removing and replacing the memory card reader 38
• 001 removing and replacing the memory card reader 39
• Important 39
• Replacing the memory card reader 39
• 001 removing and replacing the memory card reader 40
• 001 removing and replacing the memory card reader 7 41
• Replace pleted 41
• Removing and replacing memory 43
• Before you begin 44
• Removing and replacing memory 44
• Removing memory 44
• 001 removing and replacing memory 45
• 001 removing and replacing memory 46
• Removal completed 46
• 001 removing and replacing memory 47
• Important 47
• Replacing memory 47
• 001 removing and replacing memory 48
• Replace pleted 49

Похожие устройства

• Loewe Viewvision DR+ Инструкция по эксплуатации
• Panasonic PT-DX500E Инструкция по эксплуатации
• Scarlett SC-217 Инструкция по эксплуатации
• HP Pavilion E-550ruLL444EA Инструкция по эксплуатации
• JVC GZ-HM446 Инструкция по эксплуатации
• Loewe Xelos A 20 Инструкция по эксплуатации
• Scarlett SC-216 Инструкция по эксплуатации
• Panasonic PT-LB1E Инструкция по эксплуатации
• Stiebel Eltron SHZ 150 LCD 185457 Инструкция по эксплуатации
• HP 200-5210ru XH959EA Инструкция по эксплуатации
• Loewe Xelos A 20 DVB-T Инструкция по эксплуатации
• Scarlett SC-215 Инструкция по эксплуатации
• Panasonic PT-LB2E Инструкция по эксплуатации
• Ariston Platinum SI 15 V Инструкция по эксплуатации
• HP 600-1210ru XH906EA Инструкция по эксплуатации
• Scarlett SC-214 Инструкция по эксплуатации
• Panasonic PT-ST10E Инструкция по эксплуатации
• Loewe Xelos A 26 Инструкция по эксплуатации
• Polaris FDS-100 V Инструкция по эксплуатации
• HP 2510i WD005AA Инструкция по эксплуатации

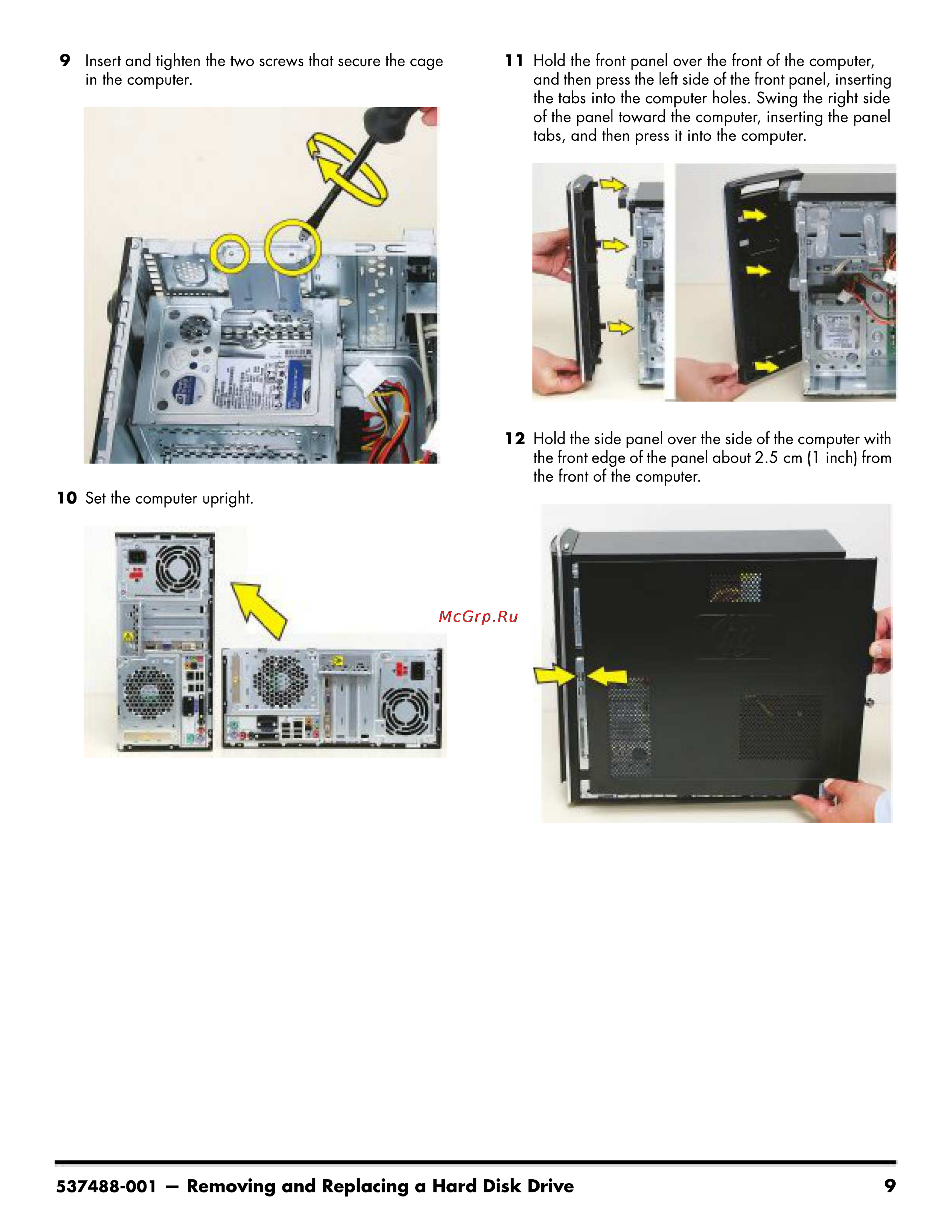

9 Insert and tighten the two screws that secure the cage in the computer 1 1 Hold the front panel over the front of the computer and then press the left side of the front panel inserting the tabs into the computer holes Swing the right side of the panel toward the computer inserting the panel tabs and then press it into the computer 12 Hold the side panel over the side of the computer with the front edge of the panel about 2 5 cm 1 inch from the front of the computer 10 Set the computer upright 537488 001 Removing and Replacing a Hard Disk Drive 9
