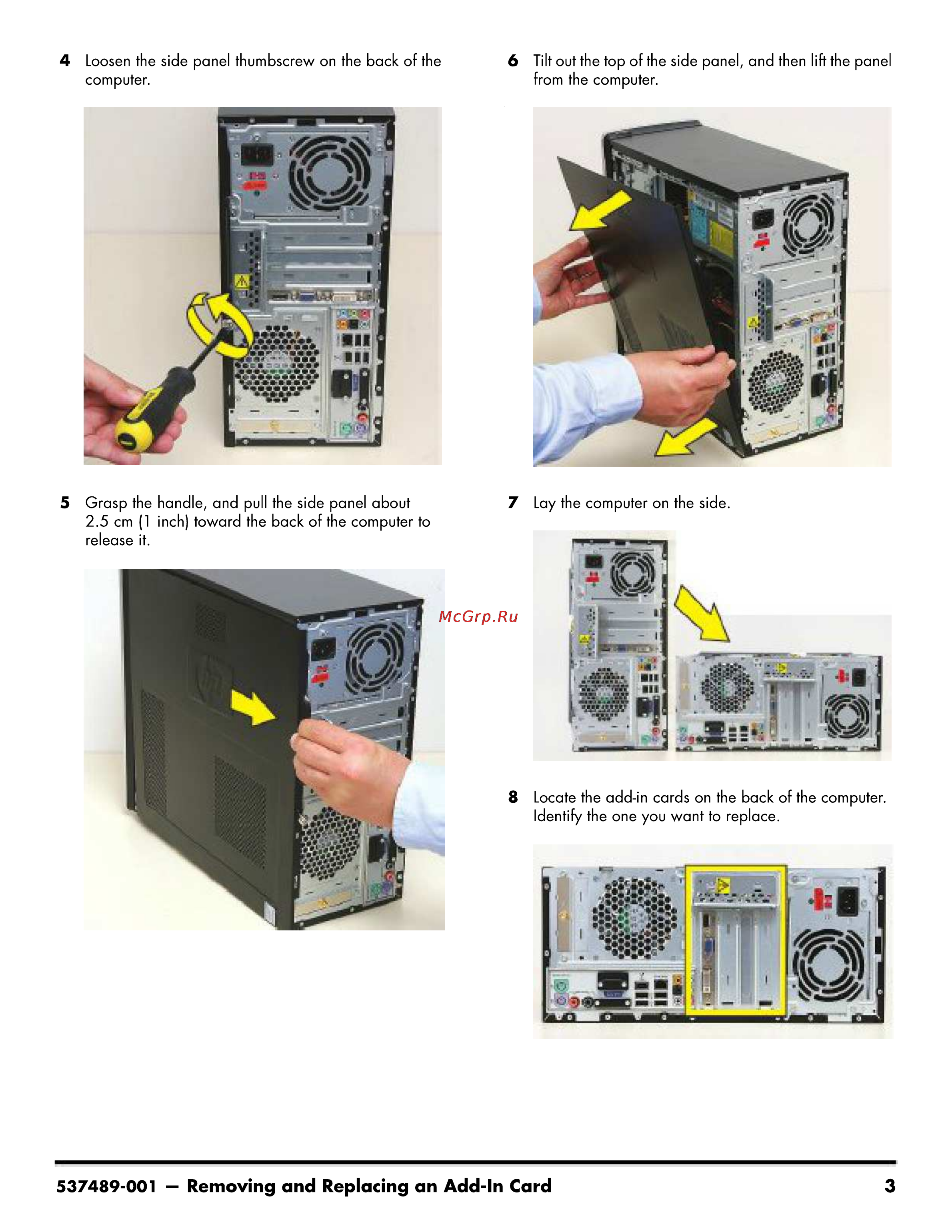

4 Loosen the side panel thumbscrew on the back of the computer 5 Grasp the handle and pull the side panel about 6 Tilt out the top of the side panel and then lift the panel from the computer 7 Lay the computer on the side 2 5 cm 1 inch toward the back of the computer to release it 8 Locate the add in cards on the back of the computer Identify the one you want to replace 537489 001 Removing and Replacing an Add In Card 3
