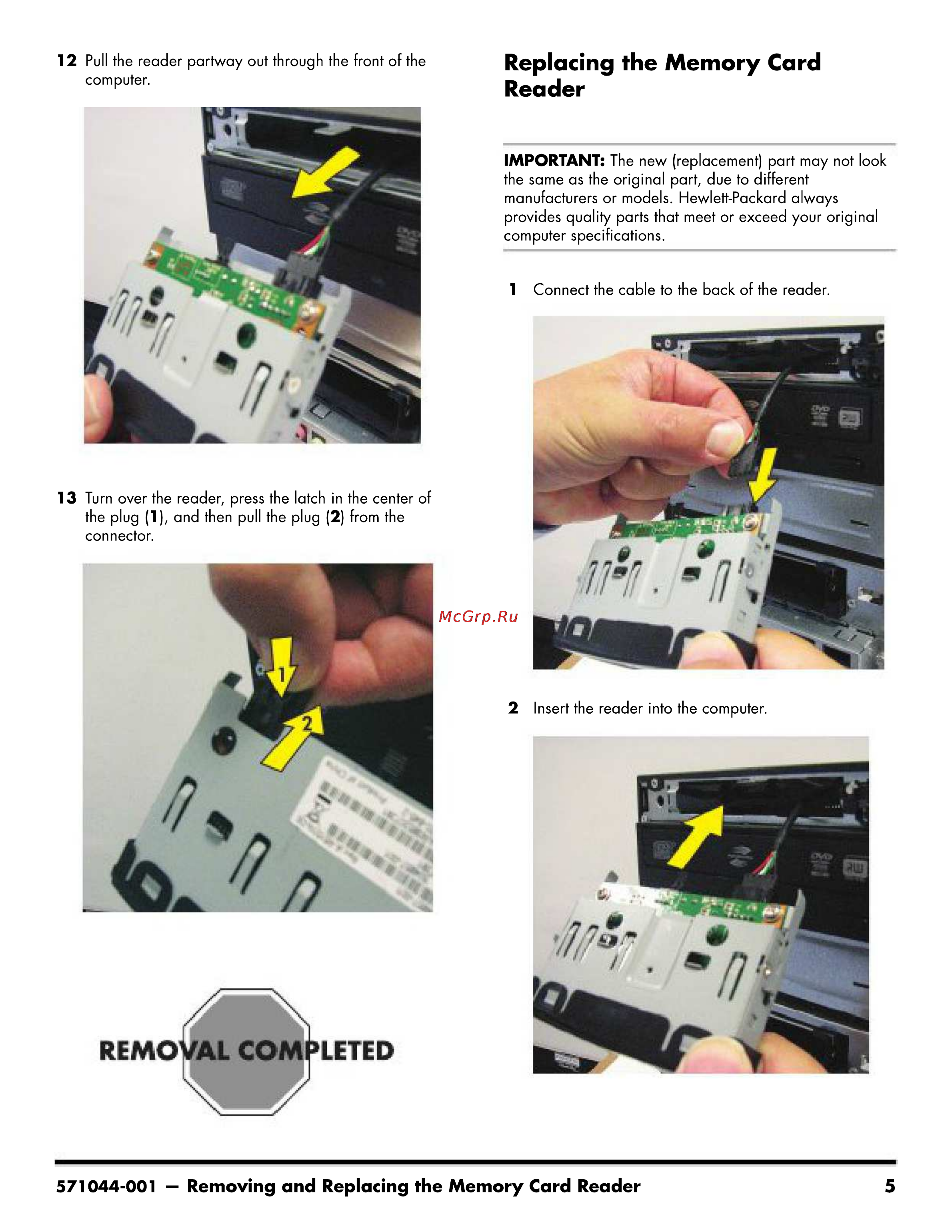

12 Pull the reader partway out through the front of the computer Replacing the Memory Card Reader IMPORTANT The new replacement part may not look the same as the original part due to different manufacturers or models Hewlett Packard always provides quality parts that meet or exceed your original computer specifications 1 Connect the cable to the back of the reader 13 Turn over the reader press the latch in the center of the plug 1 and then pull the plug 2 from the connector 2 Insert the reader into the computer 571044 001 Removing and Replacing the Memory Card Reader 5
